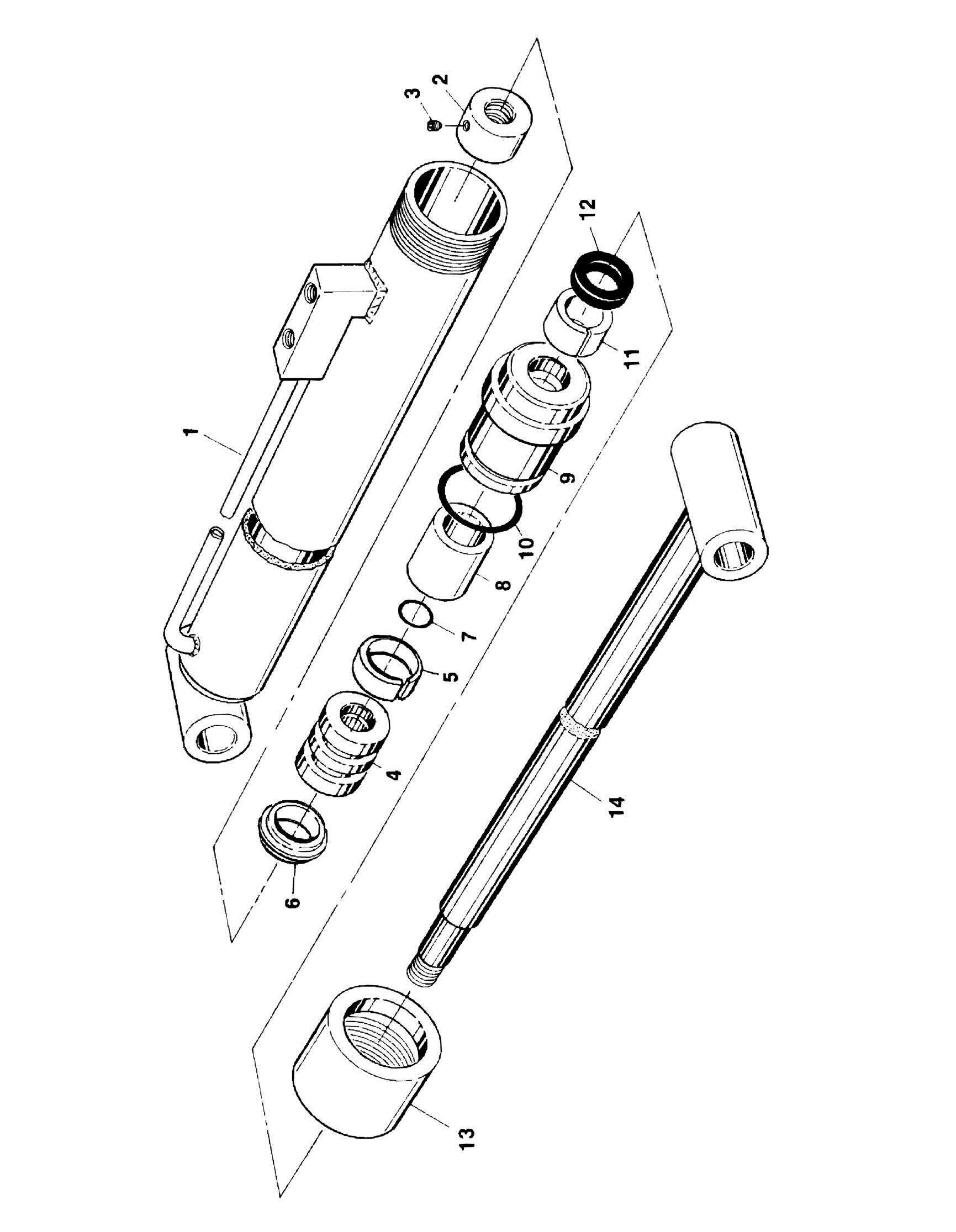

FIGURE 5-1. AXLE EXTENSION CYLINDER ASSEMBLIES - 80HX WITH FIXED AXLE
ITEM PART NUMBER QTY
DESCRIPTION
1681581 Ref AXLE EXTENSION CYLINDER ASSEMBLY (2WD) 1682260 Ref AXLE EXTENSION CYLINDER ASSEMBLY (4WD) Ref Note: Refer to P/N stamped on barrel for identification. 1 1681491 1 Barrel 2 3300184 1 Nut, Special (1/4in Dia Setscrew) 2 3300270 1 Nut, Special Hex (3/8in Dia Setscrew) 2 0100011 AR Loctite 2 0100038 AR Primer 3 3951403 1 Setscrew 1/4in-20NC x 3/8in 3 3900170 1 Setscrew 3/8in-16NC x 3/8in 3 0100011 AR Loctite 4 3480123 1 Piston 5 Kit 1 Ring, Wear 6 Kit 1 Seal, Piston 7 Kit 1 O-Ring 8 4565351 1 Spacer, Tube (1681581 Cylinder) 8 4564745 1 Spacer, Tube (1682260 Cylinder) 9 1680899 1 Head 10 Kit 1 O-Ring 11 Kit 1 Seal, Rod 12 Kit 1 Wiper, Rod 13 1120110 1 Cap 13 0100035 AR Locking Compound 14 1681492 1 Rod Assembly (1681581 Cylinder) 14 1682261 1 Rod Assembly (1682260 Cylinder) 2901121 1 Seal Kit (Includes Items 5, 6, 7, 10, 11 & 12)
REV
E B
