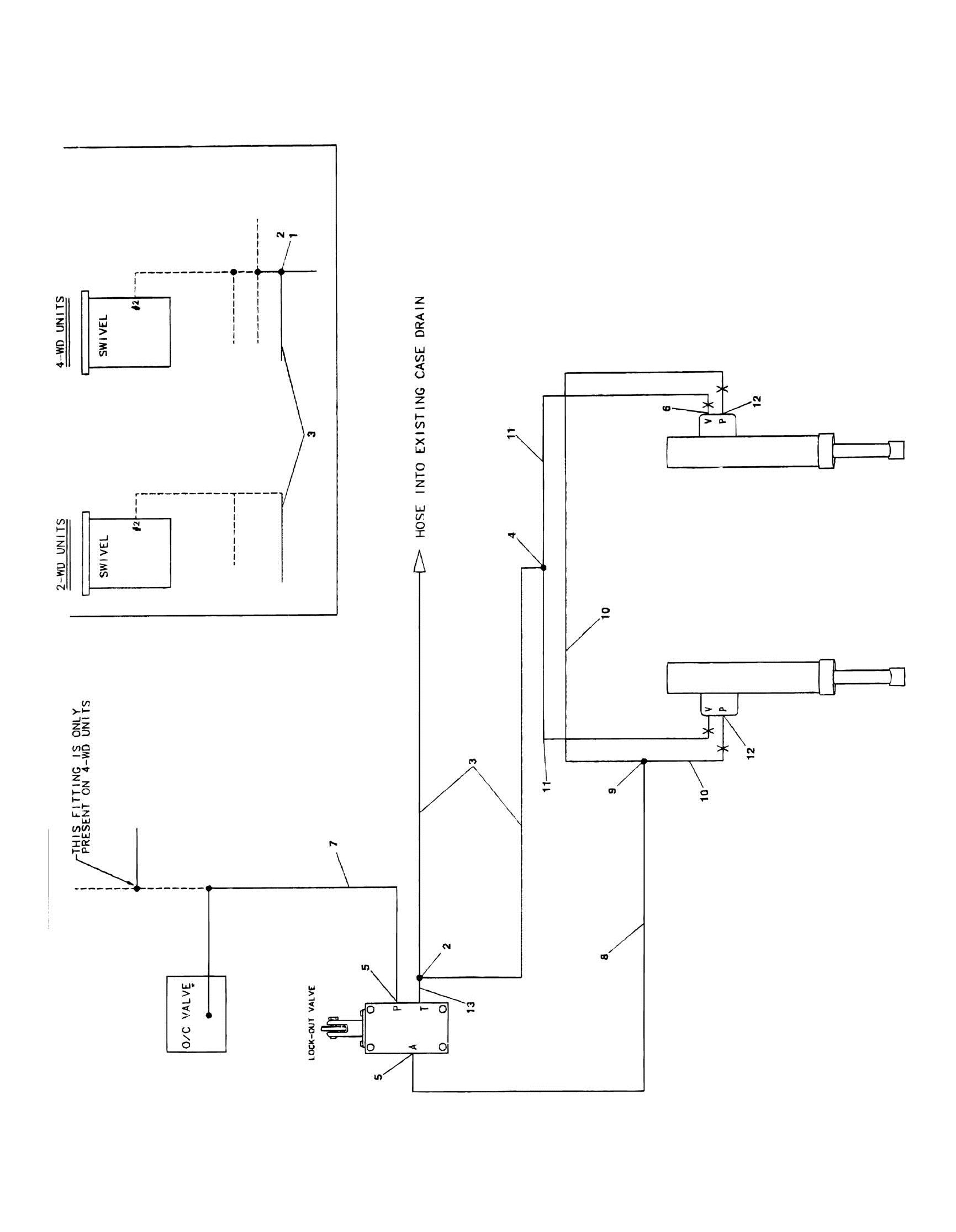

FIGURE 6-12. HYDRAULIC DIAGRAM - OSCILLATING AXLE (80HX/80HX+6)

ITEM PART NUMBER QTY DESCRIPTION REV

2792264 Ref HYDRAULIC DIAGRAM - OSCILLATING AXLE (80HX/ 80HX+6) B 1 2220619 1 Fitting, Reducer 2 2220635 2 Fitting, Tee 3 2752480 2 Hose 4 2220490 1 Fitting, Tee 5 2220466 2 Fitting, 90 6 2220371 2 Fitting, Straight 7 2752584 1 Hose 8 2751398 1 Hose 9 2220504 1 Fitting, Tee 10 2751435 2 Hose 11 2752630 2 Hose 12 2220582 2 Fitting, Straight 13 2220603 1 Fitting, Straight
