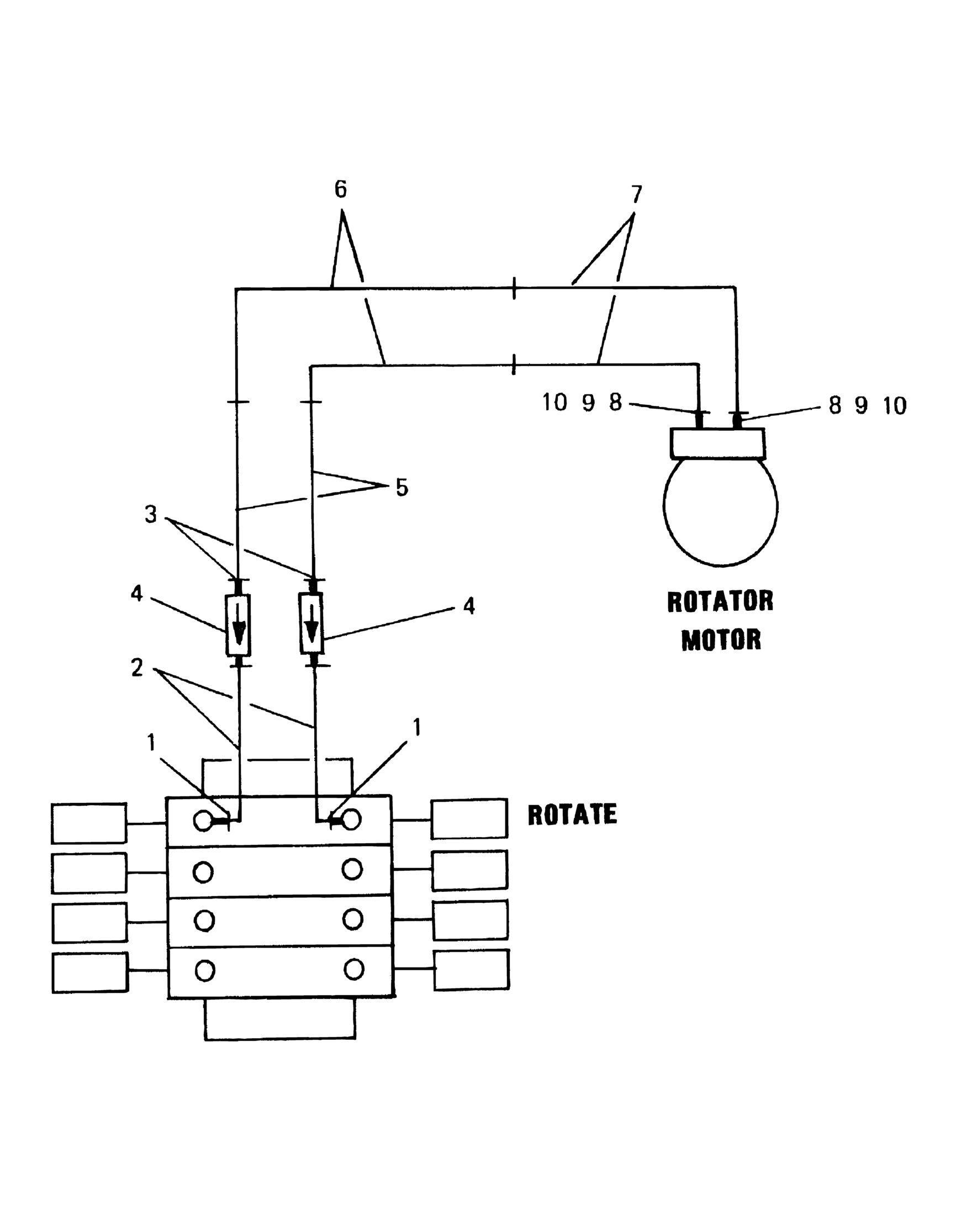

FIGURE 6-14. HYDRAULIC DIAGRAM - ROTATE (80HX

FIGURE 6-14. HYDRAULIC DIAGRAM - ROTATE (80HX)

FIGURE 6-14. HYDRAULIC DIAGRAM - ROTATE (80HX)

ITEM PART NUMBER QTY

DESCRIPTION

2791061 Ref HYDRAULIC DIAGRAM - ROTATE (80HX) 1 2220446 2 Fitting 2 2220438 2 Fitting, Nipple 3 2220414 2 Fitting, Straight 4 4640383 2 Valve, Restrictor 5 2751455 2 Hose 6 4563167 2 Tube 7 2751887 2 Hose 8 2220609 2 Fitting, Reducer 9 2220507 2 Fitting, 90 10 2220497 2 Fitting, Straight 0100020 AR Sealant

REV

E
