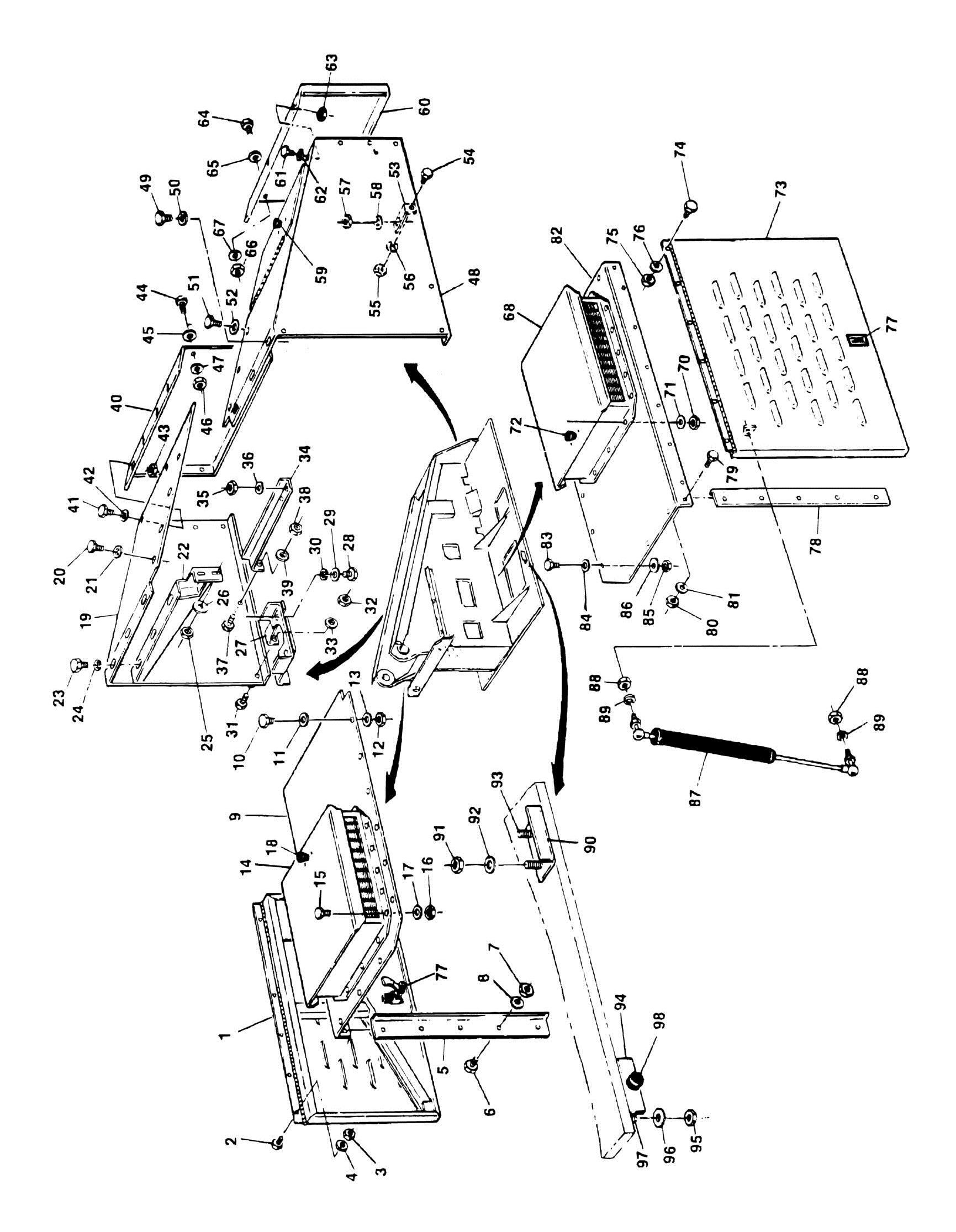

FIGURE 2-34. HOODS INSTALLATION (PRIOR TO DECEMBER 1992
ITEM PART NUMBER QTY DESCRIPTION
Ref HOOD INSTALLATIONS 0236815 Ref Deutz Engine Machines 0237246 Ref Ford Engine Machines Ref Note: Replacement Decals Must Be Ordered Separately- See
DECALS SECTION
1 4842227 1 Door, Hood, Valve Side 2 0641406 6 Bolt, 1/4in-20NC x 3/4in 3 3311405 6 Locknut 1/4in-20NC 4 4751400 6 Flatwasher 1/4in 5 1780172 1 Panel, Door (R.H.) 6 0641408 5 Bolt 1/4in-20NC x 1in 7 3311405 5 Locknut 1/4in-20NC 8 4751400 5 Flatwasher 1/4in 9 1780219 1 Panel, Hood Top, Valve Side 10 0641408 6 Bolt 1/4in-20NC x 1in 11 4751500 6 Flatwasher 5/16in 12 3311405 6 Locknut 1/4in-20NC 13 4751400 6 Flatwasher 1/4in 14 4842979 1 Hood Vent 15 0641406 16 Bolt 1/4in-20NC x 3/4in 16 3311405 16 Locknut 1/4in-20NC 17 4751400 32 Flatwasher 1/4in 18 2940050 1 Latch 18 3820012 2 Pop Rivet 19 Ref Hood Panel, Fuel Tank Side (R.H.) Options: 19 4841983 1 With Welded on Steel Manual Storage Box 19 1780174 1 With Bolt on Plastic Manual Storage Box - Not Included 20 3941405 5 Screw, Self Tap 1/4in-20NC x 5/8in 21 4761400 5 Lockwasher 1/4in 22 0901296 1 Bracket, Hood (R.H.) 22 0900801 1 Bracket, Hood (L.H.) 23 3941405 6 Screw, Self Tap 1/4in-20NC x 5/8in 24 4761400 6 Lockwasher 1/4in 25 3311605 2 Locknut 3/8in-16NC 26 4751600 2 Flatwasher 3/8in 26 4300034 2 Stud (Welded on Part) (Not Shown) 27 0901199 2 Bracket, Hood Attachment, Valve Side 28 0641508 3 Bolt 5/16in-18NC x 1in 29 4761500 3 Lockwasher 5/16in 30 4751500 3 Flatwasher 5/16in 31 0641406 4 Bolt 1/4in-20NC x 3/4in 32 3311405 4 Locknut 1/4in-20NC 33 4751400 4 Flatwasher 1/4in 34 Ref Bracket, Hood Mounting Options: 34 0901188 2 Gas and Diesel Machines 34 0901188 3 LP Only Machines 35 3311505 2 Locknut 5/16in-18NC 36 4751500 2 Flatwasher 5/16in 36 4430038 2 Stud (Welded on Part) (Not Shown) 37 0641406 1 Bolt 1/4in-20NC x 3/4in
REV
H H
ITEM PART NUMBER QTY DESCRIPTION
38 3311405 1 Locknut 1/4in-20NC 39 4751400 1 Flatwasher 1/4in 40 1780147 1 Panel, End, Valve Side 41 0641406 2 Bolt 1/4in-20NC x 3/4in 42 4751400 2 Flatwasher 1/4in 43 3311405 2 Locknut 1/4in-20NC 44 0641510 2 Bolt 5/16in-18NC x 1 1/4in 45 4751500 2 Flatwasher 5/16in 46 3311505 2 Locknut 5/16in-18NC 47 4751600 2 Flatwasher 3/8in 48 4841974 1 Hood Panel, Hydraulic Tank Side (L.H.) 49 3941405 6 Screw, Self Tap 1/4in-20NC x 5/8in 50 4761400 6 Lockwasher 1/4in 51 3941405 6 Screw, Self Tap 1/4in-20NC x 5/8in 52 4761400 6 Lockwasher 1/4in 53 0901199 2 Bracket, Hood Assembly, Hydraulic Tank Side 54 0641406 3 Bolt 1/4in-20NC x 3/4in 55 3311405 3 Locknut 1/4in-20NC 56 4751400 3 Flatwasher 1/4in 57 3311508 3 Nut, Hex 5/16in-18NC 58 4751500 3 Flatwasher 5/16in 58 4300038 3 Stud (Welded on Part) (Not Shown) 59 2940050 1 Latch 59 3820012 2 Pop Rivet 60 1780148 1 Panel - End Engine Side 61 0641406 2 Bolt 1/4in-20NC x 3/4in 62 4751400 2 Flatwasher 1/4in 63 3311405 2 Locknut 1/4in-20NC 64 0641510 2 Bolt 5/16in-18NC x 1 1/4in 65 4751500 2 Flatwasher 5/16in 66 3311505 2 Locknut 5/16in-18NC 67 4751600 2 Flatwasher 3/8in 68 4842979 1 Hood Vent 69 0641406 16 Bolt 1/4in-20NC x 3/4in 70 3311405 16 Locknut 1/4in-20NC 71 4751400 32 Flatwasher 1/4in 72 2940050 1 Latch 72 3820012 2 Pop Rivet 73 4842227 1 Door Weldment, Engine Side 74 0641406 6 Bolt 1/4in-20NC x 3/4in 75 3311405 6 Locknut 1/4in-20NC 76 4751400 6 Flatwasher 1/4in 77 2940042 1 Latch 78 1780171 1 Panel, Door 79 0641408 5 Bolt 1/4in-20NC x 1in 80 3311405 5 Locknut 1/4in-20NC 81 4751400 5 Flatwasher 1/4in 82 1780239 1 Panel, Hood Top, Engine Side 83 0641408 6 Bolt 1/4in-20NC x 1in 84 4751500 6 Flatwasher 5/16in 85 3311405 6 Locknut 1/4in-20NC
REV
ITEM PART NUMBER QTY DESCRIPTION
86 4751400 6 Flatwasher 1/4in 87 4160081 1 Gas Spring 88 3311505 2 Locknut 5/16in-18NC 89 4761500 2 Lockwasher 5/16in 90 0901235 1 Bracket, Door Stop 91 3311505 2 Locknut 5/16in-18NC 92 4751500 2 Flatwasher 5/16in 93 4300038 2 Stud (Welded on Part) 94 0901198 2 Bracket, Door Stop (Engine Side) 94 0901197 2 Bracket, Door Stop (Valve Side - Not Shown) 95 3311505 2 Locknut 5/16in-18NC 96 4751500 2 Flatwasher 5/16in 97 4300038 2 Stud (Welded on Part) 98 0940036 4 Bumper, Door
