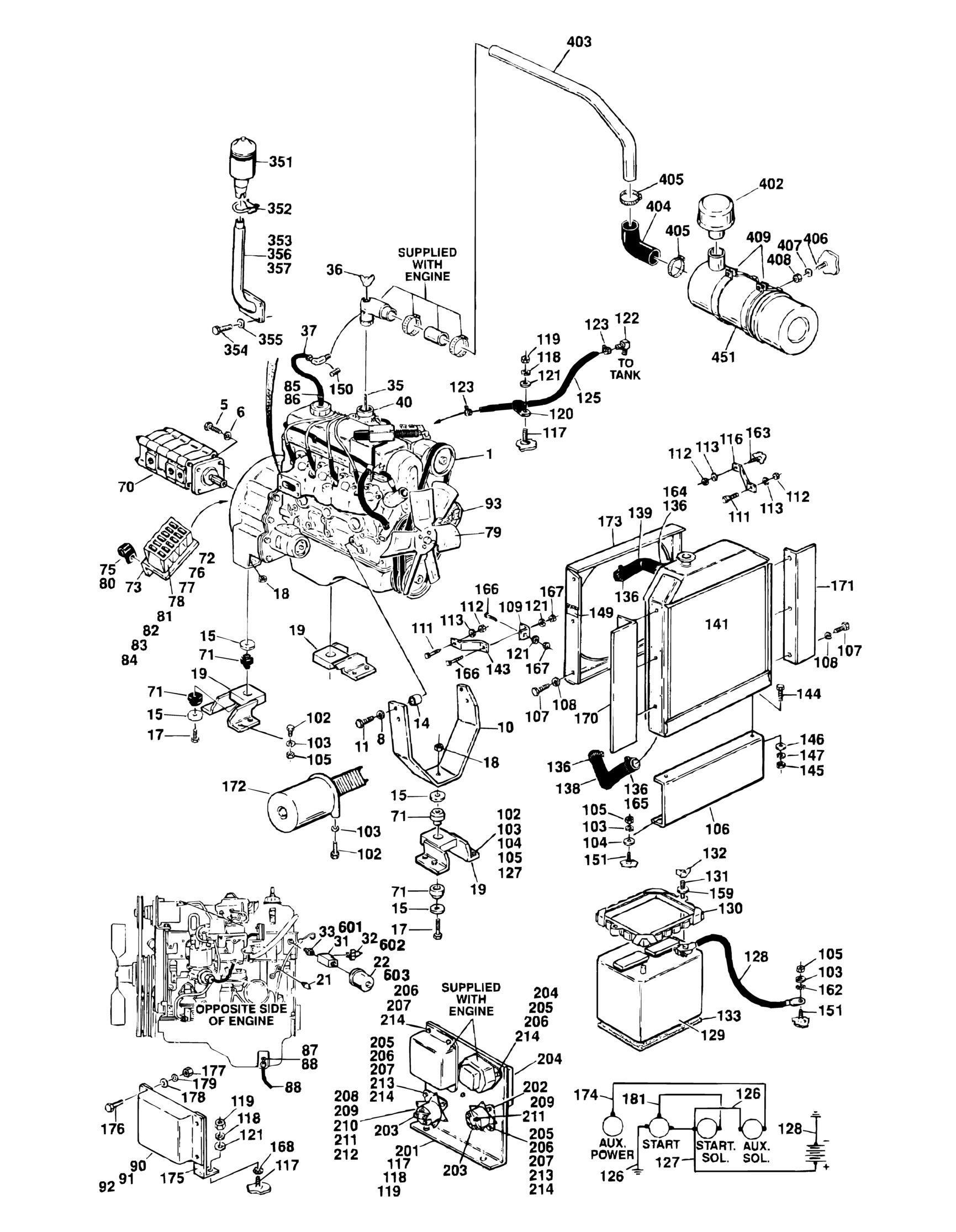

FIGURE 2-20. FORD LSG-423 ENGINE INSTALLATIONS (PRIOR MARCH TO 1995
ITEM PART NUMBER QTY
DESCRIPTION
Ref FORD ENGINE ASSEMBLY (STANDARD PARTS) 1 2000088 1 Engine, Ford LSG-423 5 0641812 AR Bolt 1/2in-13NC x 1 1/2in 6 4761800 AR Lockwasher 1/2in 8 4761600 4 Lockwasher 3/16in 10 3200198 1 Support, Engine (Front) 11 0711014 3 Bolt, Metric 10mm x 30mm (Grade 8) 13 0711020 1 Bolt, Metric 10mm x 60mm (Grade 8) 14 4562637 1 Spacer 15 4740242 5 Flatwasher, Special 17 0642034 3 Bolt 5/8in-11NC x 4 1/4in 18 3312005 3 Locknut 5/8in-11NC 19 4842168 3 Support Weldment 21 2420024 1 Sender, Temperature 22 2420033 1 Sender, Oil Pressure 30 0100020 AR Sealant, Pipe (Not Shown) 31 2180360 1 Fitting, Tee 32 4360037 1 Switch, Oil Pressure 33 2220273 1 Fitting, Reducer 35 4300056 1 Stud, Carburetor 36 3300202 1 Wingnut 1/4in-20NC 37 2720160 18 in Hose 40 0080091 1 Adapter, Choke - Standard (See Dual Fuel Installation for Dual Fuel/LP Gas Units) Ref FORD ENGINE ASSEMBLY (VARIABLE PARTS) 0237936 Ref Standard Machines I
0237938 Ref Dual Fuel Machines 0254971 Ref LP Gas Only Machines 70 3600139 1 Pump Assembly (See MAIN PUMP ASSEMBLY for Breakdown) 71 3200183 3 Mount, Motor 72 0901401 1 Bracket, Terminal Strip 73 1700901 1 Decal - Terminal Strip Label 74 1670414 1 Cover, Terminal Strip 75 1320070 2 Clamp 76 3910812 2 Screw, Round Head #8-32NC x 3/4in 77 4770800 2 Starwasher #8 78 3310801 2 Nut #8-32NC 79 2060016 1 Fan - 16 5/8in 80 4751800 2 Flatwasher 1/2in 81 0641406 1 Bolt 1/4in-20NC x 3/4in 82 3311401 1 Nut 1/4in-20NC 83 4751400 1 Flatwasher 1/4in 84 4761400 1 Lockwasher 1/4in 85 4562516 1 in Tube, Plastic 86 1320022 1 Clamp 87 4640750 1 Valve, Oil Drain 88 2750532 9 in Hose 89 1320032 1 Clamp 90 1600098 1 Controller, Precision Governor 91 to 92 Not Required 0 Not Required
REV
K B
ITEM PART NUMBER QTY
DESCRIPTION
93 See Note Alternator (Note: See Ford Engine Manual) Ref FORD ENGINE INSTALLATION (STANDARD PARTS) 102 0641612 AR Bolt 3/8in-16NC x 1 1/2in 103 4761600 AR Lockwasher 3/8in 104 4751600 AR Flatwasher 3/8in 105 3311601 AR Nut 3/8in-16NC 106 4340343 1 Support, Radiator 107 3941804 12 Screw, Self-Tapping #8-24NC x 1/2in 108 4761800 12 Lockwasher #8 109 0181234 1 Angle, Mounting 111 0630360 2 Bolt, Carriage 5/16in-18NC x 1 1/4in 112 3311501 4 Nut 5/16in-18NC 113 4761500 4 Lockwasher 5/16in 116 0880076 1 Brace 117 4300032 AR Stud (Welded on Part) 118 4761400 AR Lockwasher 1/4in 119 3311401 AR Nut 1/4in-20NC 120 1320041 3 Clamp 121 4751400 AR Flatwasher 1/4in 122 2220317 1 Fitting, Barbed 90 123 1320022 2 Clamp 124 2200051 1 Plug, Pipe (Not Shown Located at Fuel Tank) 125 2720015 75 in Hose, Fuel Line 126 1060045 2 Cable, Battery (Starter to Ground and Start Relay to Aux Relay) 127 1060147 1 Cable, Battery (+ Battery to Start Relay) 128 1060046 1 Cable, Battery (- Battery to Ground) 129 0400003 1 Battery 130 0400002 1 Hold-Down, Battery 131 0236768 2 Rod, Tie-Down 132 3300029 2 Wingnut 3/8in-16NC 133 3980003 1 Seat, Battery 134 Ref Gauge, Oil Pressure Options (Not Shown - Located at Ground Control Box): 134 2420035 1 Gauge, Oil Pressure (Prior to August 1994) 134 2420164 1 Gauge, Oil Pressure (August 1994 to March 1995) 135 2420019 1 Gauge, Temperature Options (Not Shown - Located at Ground Control Box): 135 2420019 1 Gauge, Temperature (Prior to August 1994) 135 2420159 1 Gauge, Temperature (August 1994 to March 1995) 136 1320012 4 Clamp 138 2720232 1 Hose, Radiator (Bottom) 139 2720254 1 Hose, Radiator (Top) 141 3620026 1 Radiator 143 4340525 1 Support, Radiator 144 0630375 2 Bolt, Carriage 7/16in-14NC x 1in 145 3311701 2 Nut 1/16in-14NC x 1in 146 4751700 2 Flatwasher 7/16in 147 4761700 2 Lockwasher 7/16in 149 3250914 1 Nameplate - Caution: Fan Blade 150 2200053 1 Fitting, Plug 151 4300034 4 Stud (Welded on Part) 152 0641614 AR Bolt 3/8in-16NC x 1 3/4in
REV
ITEM PART NUMBER QTY DESCRIPTION
159 4711600 2 Flatwasher 3/8in Narrow 162 4791600 4 Starwasher 3/8in 163 4300038 1 Stud (Welded on Part) 164 1320014 1 Clamp 165 1320031 1 Clamp 166 0641406 2 Bolt 1/4in-20NC x 3/4in 167 3311405 2 Locknut 1/4in-20NC 168 4791400 2 Starwasher 1/4in Ref FORD ENGINE INSTALLATION (VARIABLE PARTS) 0237937 Ref Standard Machines Built Prior to December 1992
REV
F 0237939 Ref Dual Fuel Machines Built Prior to December 1992 F 0253596 Ref Standard Machines Built December 1992 to March 1995 D 0253597 Ref Dual Fuel Machines Built December 1992 to March 1995 D 170 Ref Baffle Options: 170 3536244 1 Baffle (Prior to December 1992) 170 3536549 1 Baffle (December 1992 to March 1995) 171 Ref Baffle Options: 171 3380319 1 Baffle (Prior to December 1992) 171 3536549 1 Baffle (December 1992 to March 1995) 172 3600071 1 Auxiliary Pump Assembly 172 7004436 1 Replacement Motor and Bracket Assembly 172 7004248 1 Replacement Motor Only 172 7012576 1 Replacement Bracket Only 172 7004249 1 Replacement Coupling 172 7004247 1 Replacement Pump 172 Not Available 1 Seal Kit - 7004247 Pump 173 2680386 1 Shroud, Hood 174 1060149 1 Cable, Battery (Aux Relay to Aux Pump) 175 0901419 2 Bracket, Controller 176 3911012 4 Screw #10-24NC x 3/4in 177 3311001 4 Nut #10-24NC 178 4751000 4 Flatwasher #10 179 4761000 4 Lockwasher #10 180 1060093 1 Cable, Battery (Start Relay to Starter) 181 4920961 1 Cable, Battery (Start Relay to Starter) 0237859 Ref ELECTRICAL PANEL ASSEMBLY 201 3509714 1 Plate, Mounting 202 3740067 1 Relay, Prestolite 203 3300220 4 Nut, Special 204 3740061 1 Solenoid, Start Lockout 205 3311401 7 Nut 1/4in-20NC 206 0641405 10 Bolt 1/4in-20NC x 5/8in 207 4761400 10 Lockwasher 1/4in 208 3740059 1 Relay, Motorcraft 209 3311001 2 Nut #10-24NC 210 3310801 1 Nut #8-32NC 211 4761000 2 Lockwasher #10 212 4760800 1 Lockwasher #8 213 4711400 4 Flatwasher 1/4in 214 4791400 9 Starwasher 1/4in Ref EXHAUST INSTALLATION E
ITEM PART NUMBER QTY DESCRIPTION REV
0237497 Ref Exhaust Installation (Prior to December 1992) -
0253595 Ref Exhaust Installation (December 1992 to March 1995) A
Ref Note: See SPECIAL OPTIONS SECTION for Non-Standard
Exhaust Systems.
351 Ref Muffler Options: 351 3220043 1 Muffler (Prior to December 1992) 351 3220052 1 Muffler (December 1992 to March 1995) 352 1320019 1 Clamp 353 4842226 1 Tube, Exhaust 354 0701010 4 Bolt 10mm x 20mm 355 4832000 4 Lockwasher 10mm 356 4920096 2 ft Wire, Safety 357 4100025 3 ft Sleeve, Fiberglass Ref AIR CLEANER INSTALLATION (STANDARD PARTS) 0236398 Ref Air Cleaner Installation (Prior to September 1991) F 0252239 Ref Air Cleaner Installation (September 1991 to March 1995) 402 1120161 1 Bonnet 403 4842362 1 Tube, Air Intake 404 0080039 1 Elbow, Rubber 405 1320016 2 Clamp 406 0641406 4 Bolt 1/4in-20NC x 3/4in 407 4761400 4 Lockwasher 1/4in 408 3311401 4 Nut 1/4in-20NC 409 0340002 2 Bands 451 1340020 1 Air Cleaner Assembly 451 7004214 1 Element, Air Cleaner Ref ENGINE DISTRESS INSTALLATION 4931589 Ref Engine Distress Installation (Prior to July 1994) B 0255058 Ref Engine Distress Installation (July 1994 to March 1995) A 601 2180360 1 Fitting, Tee 602 4360182 1 Switch, Oil Pressure 603 4360157 1 Switch, Water Temperature Ref ENGINE COMPONENTS 9982700 1 Carburetor (Standard Gas) Without Built-in Choke (Machines Built through 1989) 7000643 1 Carburetor (Standard Gas) With Built-in Choke (Machines Built 1990 to March 1995) 7000646 1 Gasket, Carburetor 7024321 1 Gasket, Carburetor (Top) 7000878 1 Rebuilt Kit - 9982700 & 7000643 Carburetor 7000895 1 Choke Assembly 1140009 1 Carburetor - LP Gas 7000877 1 Fuel Shut-Off (With Wire) 7000884 1 Fuel Shut-Off (With Terminal Post) 7012577 1 Vacuum Line Fitting 7012578 1 Vacuum Line Tube Assembly 7000867 1 Engine Harness 7010633 1 Fuel Pump Assembly 7019932 4 Spark Plug (was p/n 7012595) 7019931 1 Wire Set - Spark Plug 7014677 1 Major Components Kit (Includes 1 each of Standard Gas Carburetor, Water Pump, Fuel Pump, Starter and Standard
ITEM PART NUMBER QTY DESCRIPTION
Alternator) 7010633 1 Pump, Fuel 7012679 1 Starter (was p/n 7000868) 7000874 1 Alternator 7014678 1 Gasket/Electrical Kit (Includes Upper and Lower Gasket Kits, 1 each of Thermostat, Ring Gear, Belt, Coil, Ignition Module, Voltage Regulator, Starter Solenoid and Hose) 7000871 1 Coil 7000869 1 Module, Ignition 7000870 1 Regulator, Voltage 7014679 1 Tune-up Kit (Includes 4 Spark Plugs and 1 each of Oil Filter, Fuel Filter, Cap, Rotor and ignition Wire Set) 7022153 4 Water Pump Assembly 7021869 1 Filter, Engine Oil (Case of 12) (was p/n 7014501) 7022180 1 Ring Gear (Flywheel) (Not Shown) 7023667 1 Fitting, Tee (Water By-Pass) (Not Shown)
