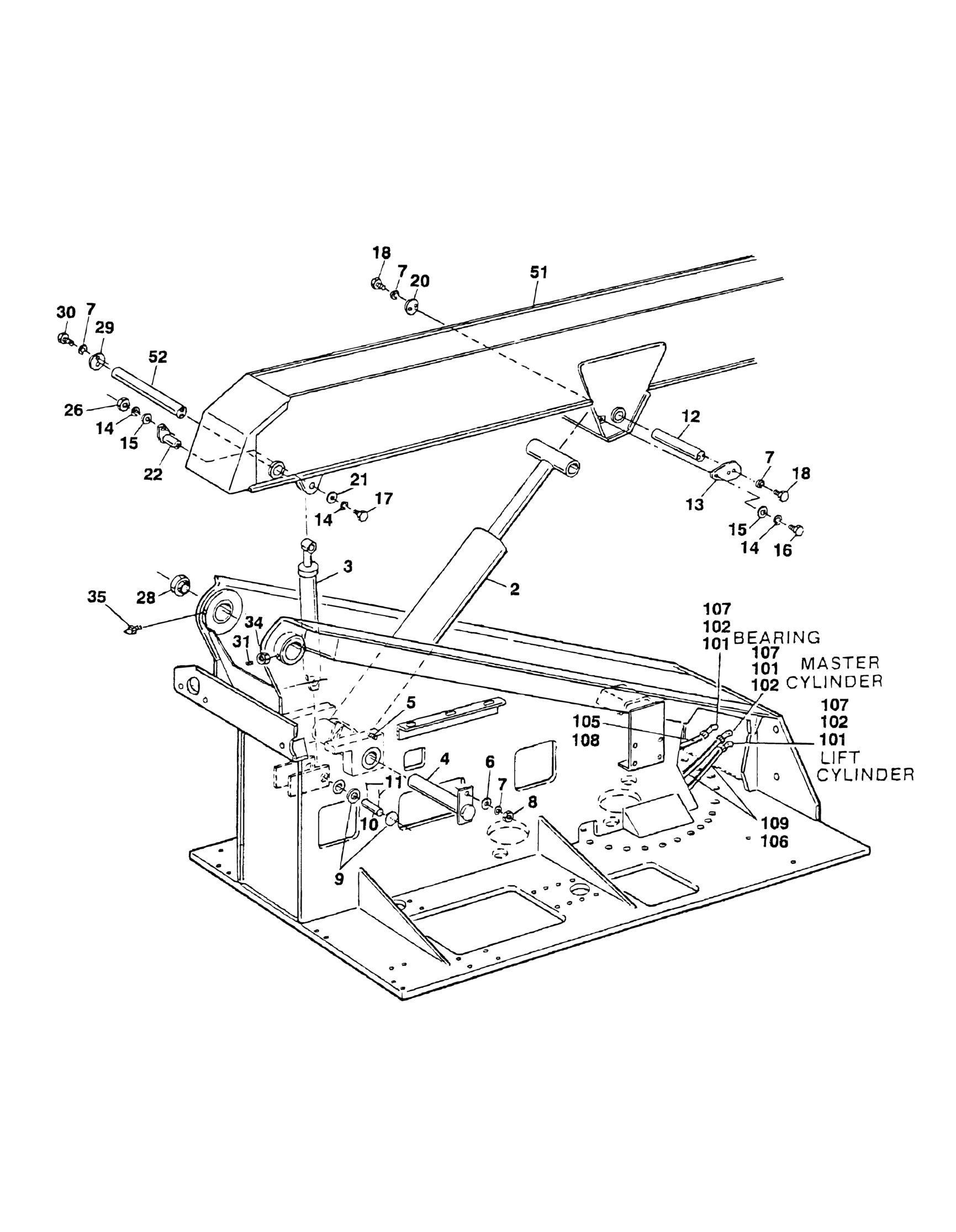

FIGURE 2-1. BOOM, TURNTABLE AND BEARING LUBE INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
Ref TURNTABLE OPTIONS: 4620022 1 Turntable (Vickers Prop Valve - Prior to December 1992) 4620083 1 Turntable (Vickers Prop Valve - December 1992 to Present) Ref BOOM INSTALLATIONS Ref Australian Spec Booms: 0236816 Ref Boom Installations 80HX Built Prior to May 1992 L
0253034 Ref Boom Installations 80HX Built May 1992
B 0253051 Ref Boom Installations 80HX With Chip Covers B 0255182 Ref Boom Installations 80HX With Inverted Power Track 0238153 Ref Boom Installations 80HX+6 Built Prior to May 1992 H 0253038 Ref Boom Installations 80HX+6 Built May 1992 to Present B 0253053 Ref Boom Installations 80HX+6 With Chip Covers B 0258376 Ref Boom Installations 80HX Modified 1 Ref CE Spec Booms: 0250934 Ref Boom Installations 80HX Built Prior to May 1992 B 0253036 Ref Boom Installations 80HX Built May 1992 to Present B 0253052 Ref Boom Installations 80HX With Chip Covers B 0250935 Ref Boom Installations 80HX+6 Built Prior to May 1992 0253039 Ref Boom Installations 80HX+6 Built May 1992 to Present B 0253054 Ref Boom Installations 80HX+6 With Chip Covers B 2 Ref Lift Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 2 1681559 1 Lift Cylinder Assembly (Prior to May 1992) 2 1682691 1 Lift Cylinder Assembly (May 1992 to Present) (TUV Style) 3 1681580 1 Master Level Cylinder Assembly (See CYLINDER SECTION for Breakdown) 4 4040126 1 Shaft 5 4300045 2 Stud 6 4751800 2 Flatwasher 1/2in 7 4761800 10 Lockwasher 1/2in 8 3311805 2 Locknut 1/2in-13NC 9 4740040 2 Flatwasher 10 3420085 1 Pin, Clevis 1 1/4in x 5/16in 11 3450610 2 Pin, Cotter 3/16in x 2 1/2in 12 3421520 1 Pin, Cross 13 3530120 1 Plate, Retainer 14 4761600 3 Lockwasher 3/8in 15 4751600 2 Flatwasher 3/8in 16 0641606 1 Bolt 3/8in-16NC x 3/4in 17 0651608 1 Bolt 3/8in-24NF x 1in 18 0641811 4 Bolt 1/2in-13NC x 1 3/8in 19 0100019 AR Loctite #271 (Not Shown) 20 4740277 1 Flatwasher 21 4740006 1 Flatwasher 22 0236548 1 Pin 23 4300034 1 Stud (Not Shown) 26 3311601 1 Nut 3/8in-16NC 28 0960562 2 Bushing, Self-Aligning (Part of Turntable Weldment) 29 1120192 2 Cap, Boom Pivot 30 0681808 4 Bolt 1/2in-13NC x 1in (Grade 8)
ITEM PART NUMBER QTY
DESCRIPTION
31 3952016 2 Setscrew 5/8in-11NC x 2in 34 3312002 2 Nut, Jam 5/8in-11NC 35 2160006 2 Fitting, Grease 51 Ref Boom Assembly Options: 51 Ref Australian Spec 51 0800662 1 Boom Assembly 80HX Built Prior to May 1992 51 0800807 1 Boom Assembly 80HX Built May 1992 51 0800814 1 Boom Assembly 80HX With Chip Covers 51 0801016 1 Boom Assembly 80HX With Inverted Power Track 51 0800810 1 Boom Assembly 80HX+6 Built May 1992 to Present 51 0800816 1 Boom Assembly 80HX+6 With Chip Covers 51 0801151 1 Boom Assembly 80HX (Modified) 51 Ref CE Spec 51 0800677 1 Boom Assembly 80HX Built Prior to May 1992 51 0800809 1 Boom Assembly 80HX Built May 1992 to Present 51 0800815 1 Boom Assembly 80HX With Chip Covers 51 0800663 1 Boom Assembly 80HX+6 Built Prior to May 1992 51 0800681 1 Boom Assembly 80HX+6 Built Prior to May 1992 51 0800811 1 Boom Assembly 80HX+6 Built May 1992 to Present 51 0800817 1 Boom Assembly 80HX+6 With Chip Covers 52 Ref Pin Options (Boom Pivot): 52 4040129 1 Australian Spec 80HX 52 3421815 1 Australian Spec 80HX with Inverted Power Track 52 3421815 1 Australian Spec 80HX+6 Built Prior to May 1992 52 4040129 1 Australian Spec 80HX+6 Built May 1992 to Present 52 3421815 1 CE Spec 80HX 52 4040129 1 CE Spec 80HX+6 52 4040129 1 CE Spec with Chip Covers 0237546 Ref BEARING LUBE INSTALLATION 101 2160002 3 Fitting, Grease 102 2220124 3 Fitting 105 2750528 1 Hose (60in Length) 106 2220063 2 Fitting, 90 107 2180344 3 Fitting, Bulkhead 108 2220063 1 Fitting, 90 109 2752427 2 Hose
REV
D
