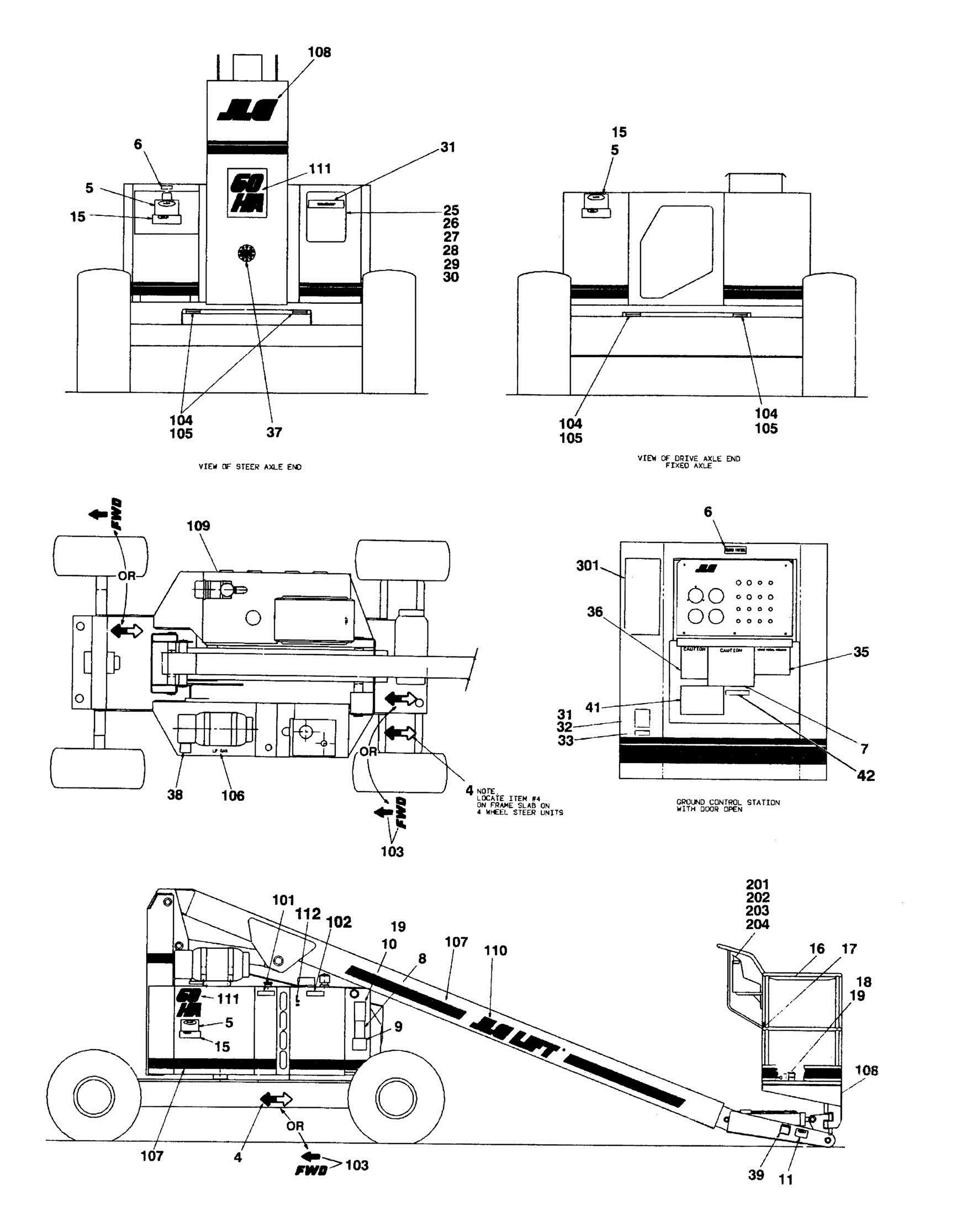

FIGURE 8-2. DECALS INSTALLATION (FEBRUARY 1992 TO PRESENT
ITEM PART NUMBER QTY DESCRIPTION REV
1281796 Ref DECALS INSTALLATION (STANDARD PARTS) I
4 1701529 4 Decal - Arrow (January 1993 to Present) 5 1700585 5 Decal - Crushing (February 1992 to May 1994) 5 1702277 5 Decal - Crushing (May 1994 to Present) 6 1700037 1 Decal - Ground Control 7 1700643 1 Decal - Important (February 1992 to May 1994) 7 1702299 1 Decal - Important (May 1994 to Present) 8 1700584 1 Decal - Patent 9 1700593 1 Decal - Inspection (February 1992 to May 1994) 9 1702153 1 Decal - Inspection (May 1994 to Present) 10 Not Available 1 Nameplate - Serial Number 11 1700640 3 Decal - Crushing (February 1992 to May 1994) 11 1702284 3 Decal - Crushing (May 1994 to Present) 15 1700580 5 Decal - Electrocution (February 1992 to May 1994) 15 1702292 5 Decal - Electrocution (May 1994 to Present) 16 1700476 2 Decal - No Hands (February 1992 to May 1994) 16 1702294 2 Decal - No Hands (May 1994 to Present) 17 1700477 2 Decal - Attach Belt (February 1992 to May 1994) 17 1702276 2 Decal - Attach Belt (May 1994 to September 1995) 17 1702612 2 Decal - Attach Belt (September 1995 to Present) 18 3251766 1 Nameplate - Footswitch (February 1992 to July 1992 Only) 19 3820001 AR Rivet 25 0860520 1 Box, Manual Storage 26 4751400 6 Flatwasher 1/4in 27 3311405 5 Locknut 1/4in-20NC 28 1060279 1 Cable, Lanyard 29 0641408 1 Bolt 1/4in-20NC x 1in 30 1700157 1 DECAL - MANUAL 31 0961127 1 Bushing, Snap 32 0100010 AR Loctite 33 3251243 1 Nameplate - 120V 35 1700582 1 Decal - Ground Control Operation (February 1992 to May 1994) 35 1702293 1 Decal - Ground Control Operation (May 1994 to Present) 36 3251028 1 Decal - Dual Fuel (February 1992 to May 1994) 36 3252356 1 Decal - Dual Fuel (May 1994 to Present) 37 3251813 1 Decal - USA 38 1700818 1 Decal - LP Gas Liquid Withdrawn System 39 1701460 2 Decal - Caution (February 1992 to May 1994) 39 1702280 2 Decal - Caution (May 1994 to Present) 41 1702282 1 Decal - Warning (May 1994 to Present) 42 1702688 1 Decal - 500 LB Max Capacity (September 1995 to Present) 43 Not Available 1 Decal - Bar Code (Not Shown) (September 1995 to Present) 0239627 Ref DECALS INSTALLATION - BROWN (VARIABLE PARTS) I 101 Ref Decal - Fuel Options: 101 1700428 1 Diesel 101 1700430 1 Gasoline 102 1700419 1 Decal - Hydraulic Fluid 103 1700977 4 Decal - FWD (February 1992 to January 1993) 103 1700978 4 Decal - Arrow (February 1992 to January 1993) 104 1700975 4 Decal - Lift Here
ITEM PART NUMBER QTY DESCRIPTION REV
105 1700976 4 Decal - Tie Down 106 1700429 1 Decal - LP Gas 107 1701703 57 ft Decal - Stripe (was p/n 1700431) 108 1700981 2 DECAL - JLG 109 1701205 1 Decal - Model 60HA (Small) 110 1701443 2 DECAL - JLG LIFT 111 1701444 2 Decal - Model 60HA (Large) 112 1700756 1 Decal - Full/Add 2900750 1 Decal and Placard Kit - Brown (Includes items 4, 5, 6, 7, 8, 9, 11, 15, 16, 17, 30, 33, 35, 36, 37, 39, 41, 101, 102, 103, 104, 105, 106, 108, 109, 110, 111, 112, 202 & 203) 2910041 1 Decal Kit - Brown (Includes items 4, 5, 6, 7, 8, 9, 11, 15, 16, 17, 30, 102, 108, 109, 110 & 111) 0252798 Ref DECALS INSTALLATION - BLACK (VARIABLE PARTS) E 101 Ref Decal - Fuel Options: 101 1700196 1 Diesel 101 1700194 1 Gasoline 102 1700195 1 Decal - Hydraulic Fluid 103 1700053 4 Decal - FWD (February 1992 to January 1993) 103 1700978 4 Decal - Arrow (February 1992 to January 1993) 104 1700232 4 Decal - Lift Here 105 1701326 4 Decal - Tie Down 106 1700197 1 Decal - LP Gas 107 1701334 57 ft Decal - Stripe 108 1701321 2 Decal - JLG 109 1701724 1 Decal - Model 60HA (Small) 110 1701551 2 Decal - JLG Lift 111 1701595 2 Decal - Model 60HA (Large) 112 1701336 1 Decal - Full/Add 0253639 Ref CAUTION AND DANGER NAMEPLATE INSTALLATION A 201 3536671 1 Plate, Mounting 202 3252144 1 Nameplate (October 1992 - May 1994) 202 3252369 1 Nameplate (May 1994 to Present) 203 3251881 1 Decal - Symbols (October 1992 to May 1994) 203 1702289 1 Decal - Symbols (May 1994 to Present) 204 3820019 4 Rivet 2910025 1 Decal Kit - CAUTION AND DANGER (Includes items 4, 5, 6, 7, 8, 9, 11, 15, 16, 17, 30, 33, 35, 36, 37, 39, 41, 101, 102, 103, 104, 105, 106, 108, 109, 110, 111, 112, 202 & 203) 1281687 Ref MANUAL DESCENT DECALS INSTALLATION (OPTIONAL) B 301 1701464 1 Decal - Instructions (Prior to April 1992) 301 1701780 1 Decal - Instructions (April 1992 to Present)
