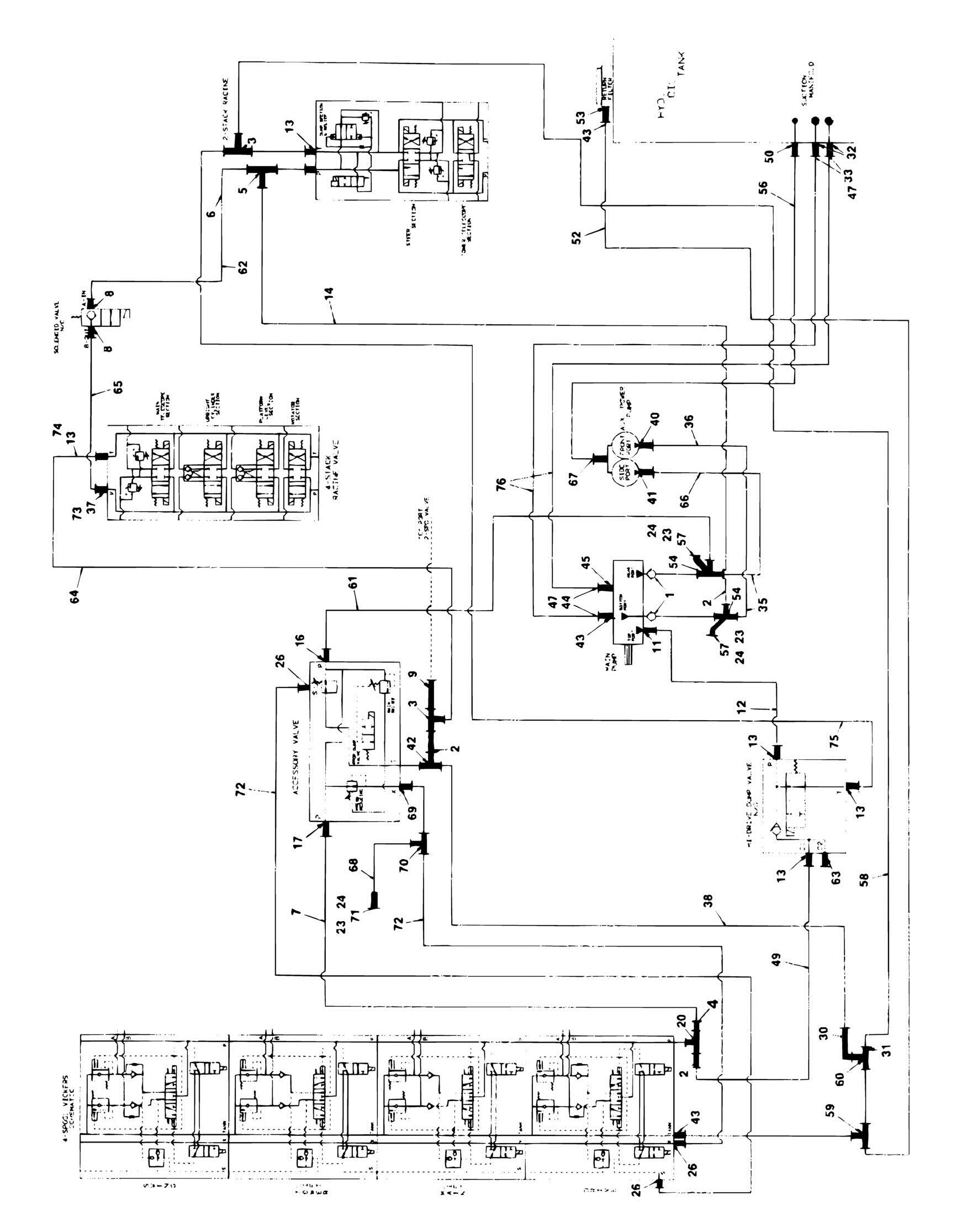

FIGURE 6-7. HYDRAULIC DIAGRAM - PUMPS

FIGURE 6-7. HYDRAULIC DIAGRAM - PUMPS

FIGURE 6-7. HYDRAULIC DIAGRAM - PUMPS

ITEM PART NUMBER QTY

DESCRIPTION

2791494 Ref HYDRAULIC DIAGRAM - PUMO (FORD) 2791675 Ref HYDRAULIC DIAGRAM - PUMP (KUBOTA) 2791608 Ref HYDRAULIC DIAGRAM - PUMP (DEUTZ) 1 4640575 2 Valve, Check 2 2220622 3 Fitting, Reducer 3 2220385 2 Fitting, Tee 4 2220409 1 Fitting, 45 (Ford and Deutz) 5 2220602 1 Fitting, Tee 6 2220619 1 Fitting, Reducer 7 2751331 1 Hose 8 2220372 2 Fitting 9 2220618 1 Fitting, Reducer 11 2220366 1 Fitting, 90 (Kubota) 11 2220375 1 Fitting, Straight (Ford and Deutz) 12 2750757 1 Hose (Ford) 12 2750979 1 Hose (Kubota) 12 2750792 1 Hose (Deutz) 13 2220373 5 Fitting (Ford and Kubota) 13 2220373 4 Fitting (Deutz) 13 2220500 1 Fitting, 45 (Deutz) 14 2750763 1 Hose (Ford and Kubota) 14 2751489 1 Hose (Deutz) 16 2220578 1 Fitting, 90 17 2220451 1 Fitting 20 2220695 1 Fitting, Tee 23 2220428 3 Fitting, Quick Disconnect 24 2220429 3 Cap, Dust 26 2220582 3 Fitting 30 2220710 1 Fitting, Reducer 31 2220624 1 Fitting, Reducer 32 2220349 2 Fitting 33 2210014 2 Fitting, 90 Barbed 35 2220621 2 Fitting, Reducer 36 2751004 1 Hose (Ford) 36 2750997 1 Hose (Kubota) 36 2750908 1 Hose (Deutz) 37 2220371 1 Fitting 38 2751373 1 Hose 40 2220603 1 Fitting (Ford) 40 2220371 1 Fitting (Kubota) 40 2220473 1 Fitting, 90 (Deutz) 41 2220603 1 Fitting (Ford and Deutz) 41 2220775 1 Fitting, 90 (Kubota) 42 2220738 1 Fitting, Tee 43 2220377 3 Fitting 44 2210003 2 Fitting, Barbed (Ford) 44 2210014 2 Fitting, Barbed (Kubota) 44 2210028 2 Fitting, Barbed (Deutz) 45 2220379 1 Fitting 47 1320033 8 Clamp

REV

E G E

ITEM PART NUMBER QTY DESCRIPTION

49 2750777 1 Hose 50 2220346 1 Fitting 52 2751931 1 Hose 53 2220329 1 Fitting, Reducer 54 2180683 2 Fitting, Modified Tee 56 2751469 1 Hose 57 2220820 2 Fitting, 90 58 2750757 1 Hose 59 2220384 1 Fitting, Tee 60 2220642 1 Fitting, Tee 61 2751331 1 Hose (Ford and Kubota) 61 2751322 1 Hose (Deutz) 62 2751113 1 Hose 63 2220237 1 Fitting (Ford and Deutz Only) 64 2751509 1 Hose 65 2751839 1 Hose 66 2751002 1 Hose (Ford) 66 2750997 1 Hose (Kubota) 66 2750908 1 Hose (Deutz) 67 2220671 1 Fitting, 90 (Ford and Kubota) 67 2220596 1 Fitting, 90 (Deutz) 68 2751010 1 Hose 69 2220727 1 Fitting 70 2220584 1 Fitting, Tee 71 2220414 1 Fitting 72 2751391 2 Hose 73 2220507 2 Fitting, 90 74 2220386 1 Fitting, 90 75 2750928 1 Hose 76 2720332 2 Hose, Suction (Ford) 76 2720335 2 Hose, Suction (Kubota) 76 2720343 2 Hose, Suction (Deutz) 0100020 AR Sealant, Thread
