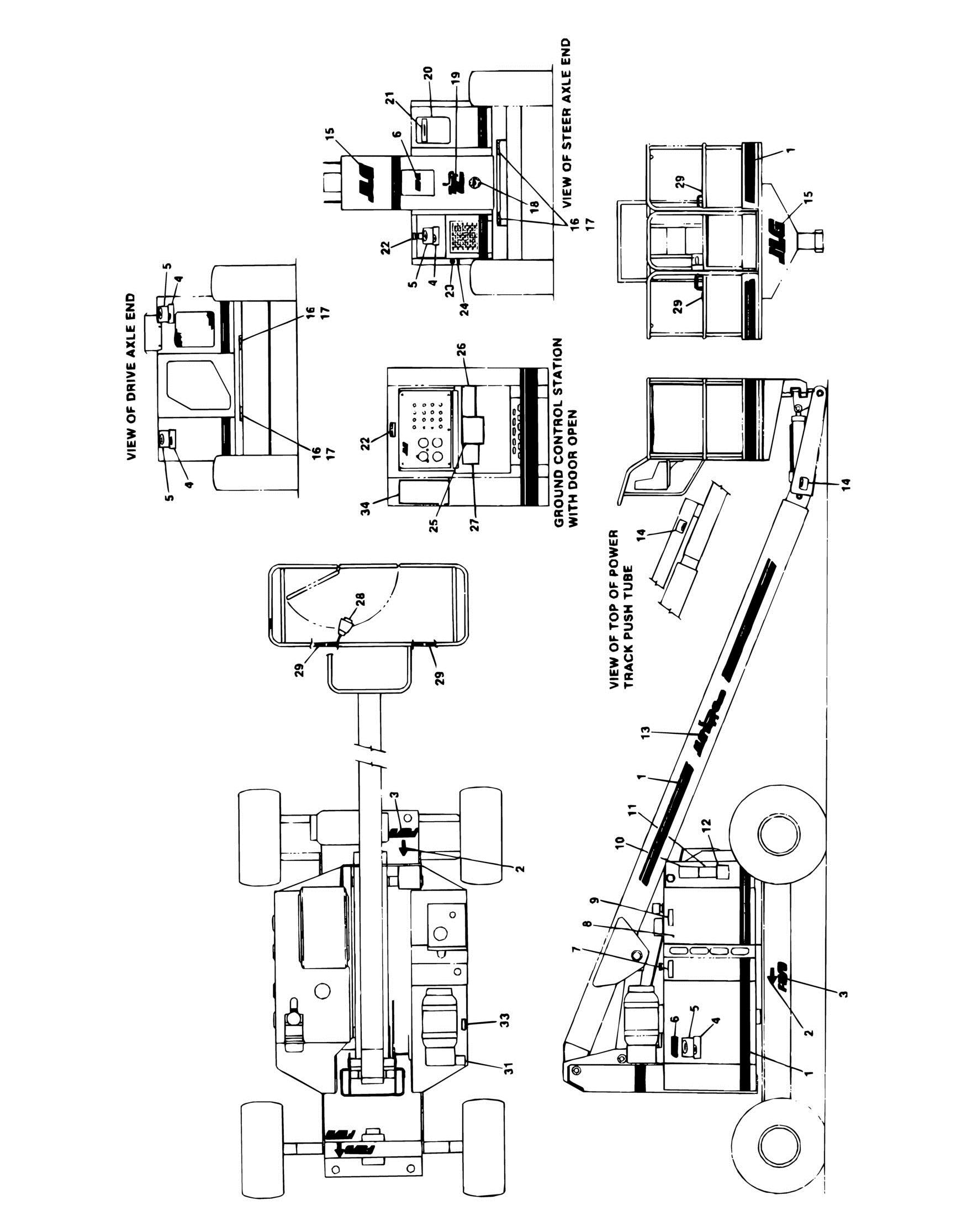

FIGURE 8-1. DECALS INSTALLATION (PRIOR TO FEBRUARY 1992

FIGURE 8-1. DECALS INSTALLATION (PRIOR TO FEBRUARY 1992)

FIGURE 8-1. DECALS INSTALLATION (PRIOR TO FEBRUARY 1992)

ITEM PART NUMBER QTY

DESCRIPTION

0239627 Ref DECAL INSTALLATION (PRIOR TO FEBRUARY 1992) 1 1700431 57 ft Decal - Stripe 2 1700978 4 Decal - Arrow 3 1700977 4 Decal - FWD 4 1700580 5 Decal - Electrocution 5 1700585 5 Decal - Crushing 6 1701205 3 Decal - 60HA 7 1700430 1 Decal - Fuel - Gasoline 7 1700428 1 Decal - Fuel - Diesel 8 1700756 1 Decal - Full/Add 9 1700419 1 Decal - Hydraulic Oil 10 Not Available 1 Nameplate - Serial Number 10 3820001 4 Rivet 11 1700584 1 Decal - Patent 12 1700593 1 Decal - Inspection 13 1700979 2 Decal - Top Gun (Boom Location) 14 1700640 3 Decal - Crushing 15 1700981 2 Decal - JLG 16 1700975 4 Decal - Lift Here 17 1700976 4 Decal - Tie Down 18 3251813 1 Nameplate - Made In USA 19 1700980 1 Decal - Top gun (Upright Location) 20 0860520 1 Box, Manual Storage 20 3311405 4 Locknut 1/4in-20NC 20 4751400 4 Flatwasher 1/4in 20 1060279 1 Cable, Lanyard 20 0641408 1 Bolt 1/4in-20NC x 1in 20 4751400 2 Flatwasher 1/4in 20 3311405 1 Locknut 1/4in-20NC 21 1700157 1 Decal - Manual 22 1700037 1 Decal - Ground Controls 23 0961127 1 Bushing, Snap 23 0100010 AR Loctite 24 3251243 1 Nameplate - 120V 25 1700643 1 Decal - Important 26 1700582 1 Decal - Ground Control Operation 27 3251028 1 Decal - Dual Fuel 28 3251766 1 Nameplate - Footswitch 28 3820001 4 Rivet 29 1700477 2 Decal - Attach Belt 30 1700476 1 Decal - No Hands 31 1700818 1 Decal - LP Gas Liquid Withdraw System 33 1700429 1 Decal - LP Gas 34 1701464 1 Decal - Manual Descent (Optional) 2900750 1 Decal Kit (Includes Latest Decals - See DECALS INSTALLATION (FEBRUARY 1992 TO PRESENT) for Breakdown)

REV

D
