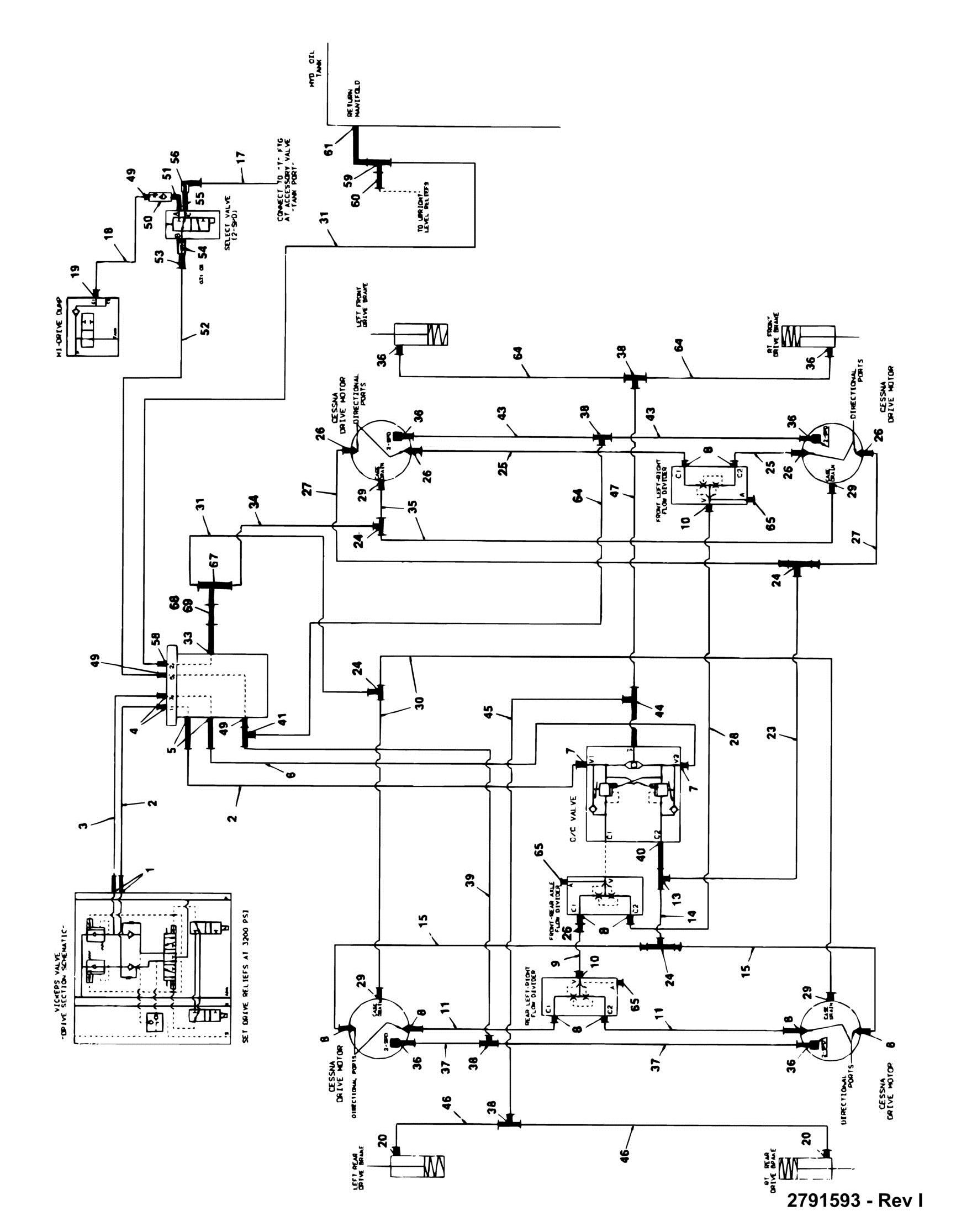

FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD/2WS
FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD/2WS)
FIGURE 6-4. HYDRAULIC DIAGRAM - DRIVE (4WD/2WS)
ITEM PART NUMBER QTY
DESCRIPTION
2791593 Ref HYDRAULIC DIAGRAM - DRIVE (4WD/2WS) 1 2220451 2 Fitting 2 2750692 2 Hose 3 2751357 1 Hose 4 2220356 2 Fitting, 45 5 2220347 2 Fitting 6 2751341 1 Hose 7 2220465 2 Fitting 8 2220375 9 Fitting 9 2750969 1 Hose 10 2220800 2 Fitting, Straight 11 2750972 2 Hose 13 2220602 1 Fitting, Tee 14 2751502 1 Hose 15 2751517 2 Hose 17 2750902 1 Hose 18 2751391 1 Hose 19 2220582 1 Fitting, Straight 20 2220466 2 Fitting, 90 23 2750792 1 Hose 24 2220362 4 Fitting, Tee 25 2750771 2 Hose 26 2220366 6 Fitting, 90 27 2750777 2 Hose 28 2751484 1 Hose 29 2220596 4 Fitting, 90 30 2750774 2 Hose 31 2751483 2 Hose 33 2220345 1 Fitting, Straight 34 2750762 1 Hose 35 2751472 2 Hose 36 2220415 6 Fitting 37 2751010 2 Hose 38 2220504 4 Fitting, Tee 39 2751428 1 Hose 40 2220833 1 Fitting, Reducer 41 2220605 1 Fitting, Tee 43 2751011 2 Hose 44 2220711 1 Fitting, Tee 45 2751397 1 Hose 46 2751014 2 Hose 47 2750904 1 Hose 49 2220414 3 Fitting 50 4640197 1 Valve, Check 51 2220673 1 Fitting, 90 52 2751415 1 Hose 53 2220585 1 Fitting, 90 54 2220822 1 Fitting 55 2220417 1 Fitting, Reducer 56 2220909 1 Fitting, Straight
REV
I
ITEM PART NUMBER QTY
58 2220355 1 Fitting, 45 59 2220679 1 Fitting, Tee 60 2220618 1 Fitting, Reducer 61 2220070 1 Fitting, 90 64 2751398 3 Hose 65 2220235 3 Fitting, Plug 67 2220469 1 Fitting, 4 Way 68 2750970 1 Hose 69 2220517 1 Cap 0100020 AR Sealant, Thread
