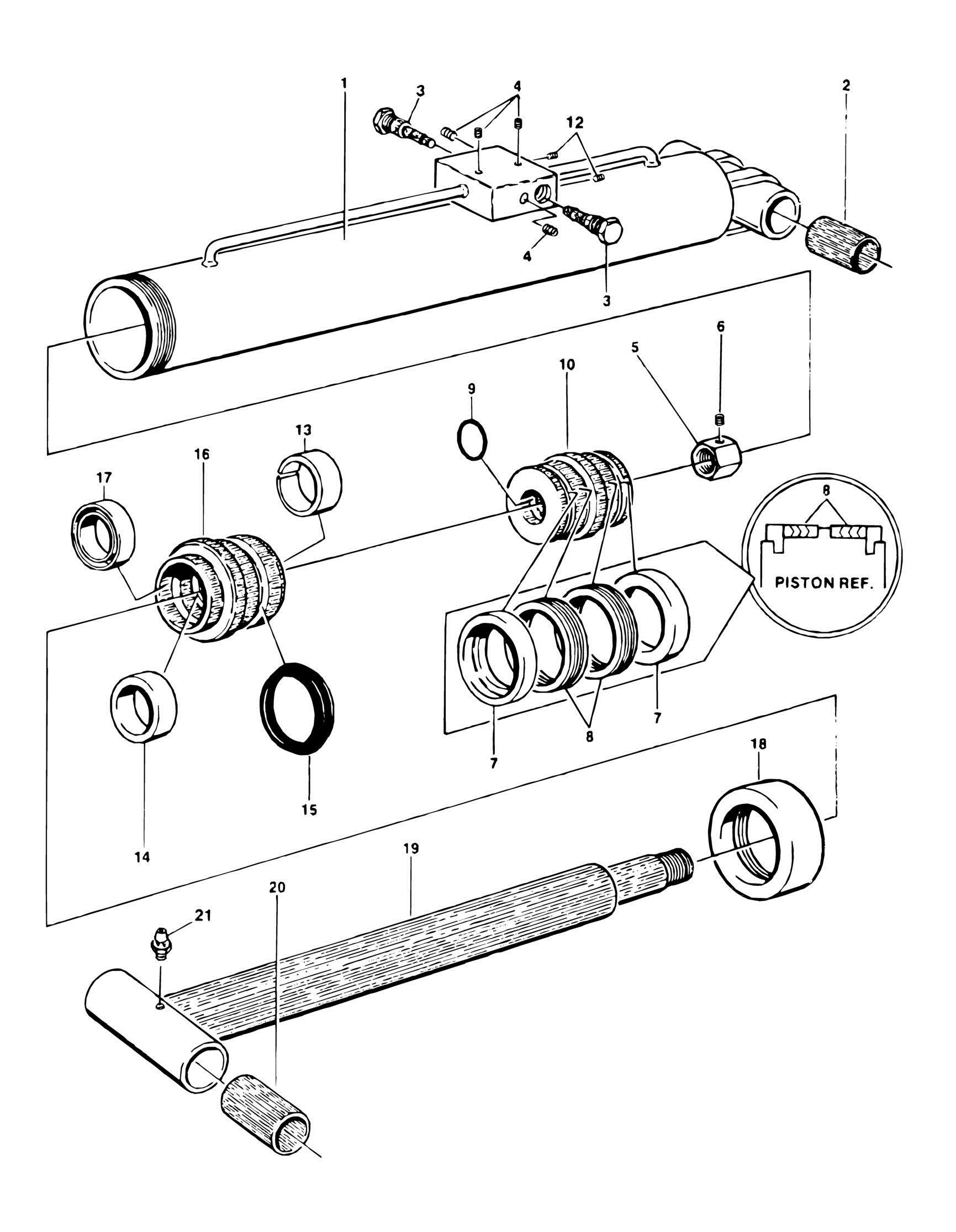

FIGURE 5-9. TOWER LIFT CYLINDER ASSEMBLIES (PRIOR TO APRIL 1992

FIGURE 5-9. TOWER LIFT CYLINDER ASSEMBLIES (PRIOR TO APRIL 1992)

FIGURE 5-9. TOWER LIFT CYLINDER ASSEMBLIES (PRIOR TO APRIL 1992)

ITEM PART NUMBER QTY

DESCRIPTION

1682053 Ref TOWER LIFT CYLINDER ASSEMBLY (STANDARD) 1682458 Ref TOWER LIFT CYLINDER ASSEMBLY (CSA) 1 1682054 1 Barrel Assembly 2 0961361 2 Bushing, Bronze 3 4640509 2 Valve, Cartridge 3 2900792 2 Seal Kit - 4640509 Valve 4 2200201 4 Plug 1/8in 4 0100020 AR Sealant 5 3300256 1 Nut, Special (Prior to February 1991) 5 3300287 1 Nut, Hex (February 1991 to April 1992) 6 3900139 1 Setscrew 1/4in-20NC x 1/2in (Prior to February 1991) 6 3300170 1 Setscrew 3/8in-16NC x 3/8in (February 1991 to April 1992) 6 0100011 AR Loctite #242 6 0100038 AR Primer, Locking 7 Kit 2 Ring, Guidelock 8 Kit 2 Seal 9 Kit 1 O-Ring 10 3480136 1 Piston 12 2200213 2 Plug 3/8in 12 0100020 AR Sealant 13 Kit 1 Ring, Wear 14 Kit 1 Seal 15 Kit 1 O-Ring 16 1682083 1 Head 17 Kit 1 Ring, Wear 18 1120160 1 Cap 18 0100035 AR Loctite #222 19 1682078 1 Rod Assembly (Standard) 19 1682457 1 Rod Assembly (CSA) 20 0961361 2 Bushing, Bronze (Prior to February 1994) 20 0961760 2 Bushing, Bronze (February 1994 to Present) 21 2160002 1 Fitting, Grease (Prior to September 1991) 21 2160001 1 Fitting, Grease - 90 (September 1991 to April 1992) 2900375 1 Seal Kit (Includes Items 7, 8, 9, 13, 14, 15 & 17)

REV

I A
