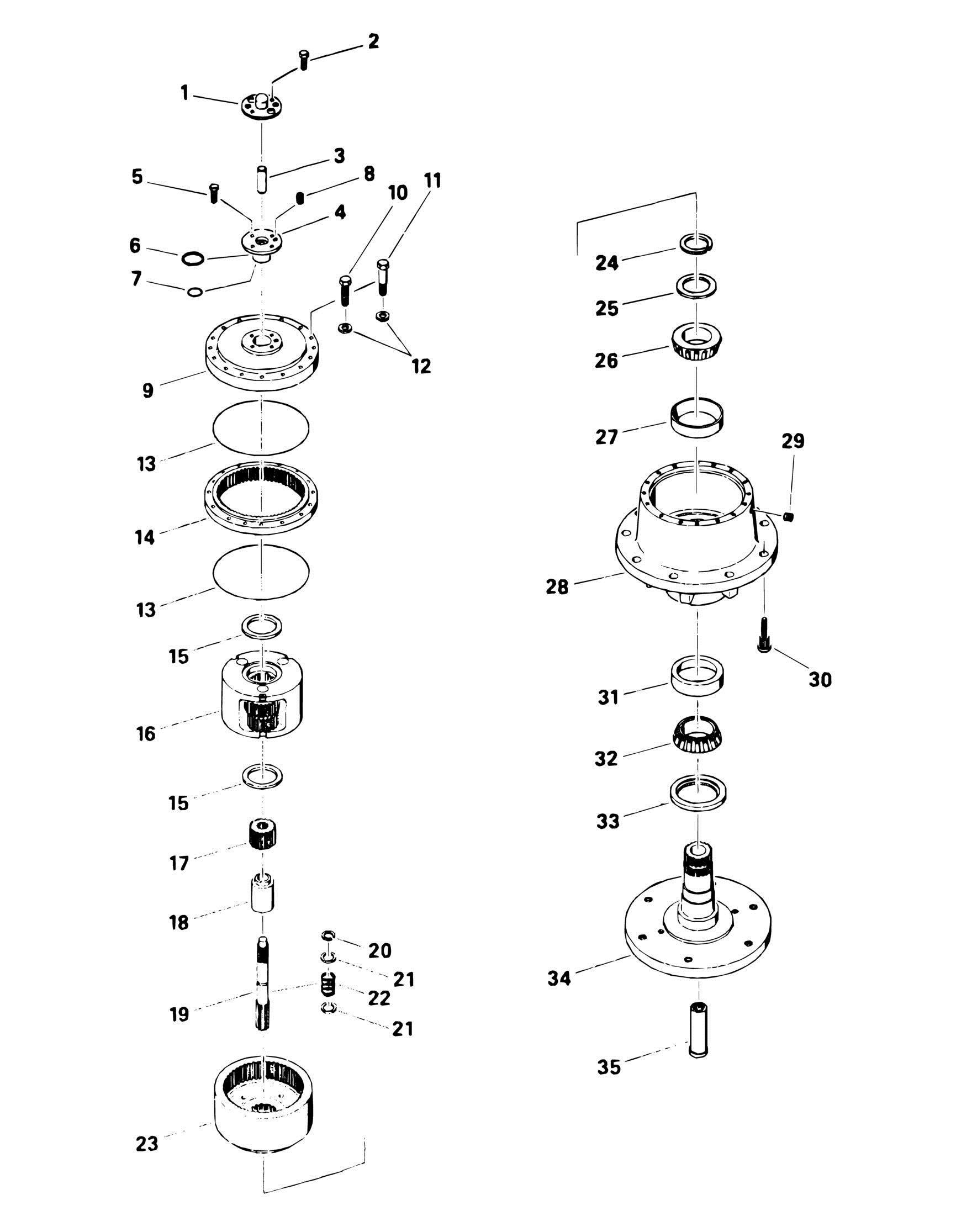

FIGURE 1-12. DRIVE HUB ASSEMBLY (4WD REAR WITH 2WS AND 4WD FRONT AND REAR WITH 4WS
ITEM PART NUMBER QTY
DESCRIPTION
2780170 Ref DRIVE HUB ASSEMBLY (4WD REAR WITH 2WS AND 4WD
FRONT AND REAR WITH 4WS)
70001111 1 Cover Assembly (was p/n 7001989) 1 70001111 1 Cap, Disconnect (was p/n 7000211) 2 7000220 2 Bolt, Hex Head 3 70001111 1 Rod, Disconnect (was p/n 7000212) 4 70001111 1 Cap, Cover (was p/n 7000227) 5 7000220 2 Bolt, Hex Head 6 7000215 1 O-Ring 7 7000213 1 O-Ring 8 7000243 1 Plug, Pipe 9 70001111 1 Cover (was p/n 7000226) 10 7000217 12 Bolt, Hex Head 11 7000214 4 Bolt, Hex Head - Shoulder 12 4751500 16 Flatwasher 13 7000230 2 O-Ring 14 7001988 1 Gear, Ring 15 7000253 2 Washer, Thrust 16 7001984 1 Planet Carrier Assembly 16 7001931 1 Carrier 16 7001985 6 Washer, Thrust 16 7001909 96 Bearing, Needle Roller 16 7000263 3 Spacer 16 7001911 3 Shaft, Planet 16 7001987 3 Gear, Cluster 16 7001913 3 Rollpin 17 7001990 1 Gear, Input 18 7000252 1 Spacer, Sun Gear 7000250 1 Input Shaft Assembly 19 7000260 1 Shaft, Input 20 7000261 1 Ring, Retaining 21 7000263 2 Spacer 22 7000262 1 Spring 23 7000246 1 Gear, Stationary Internal Ref Hub Assembly 24 7000229 1 Ring, Retaining 25 7000232 1 Spacer 26 7000257 1 Bearing, Tapered Roller 27 7000258 1 Cone, Bearing 28 7007601 1 Hub 29 7000242 1 Plug, Pipe 30 7007697 9 Stud, Wheel 31 Kit 1 Cone, Bearing 32 Kit 1 Bearing, Tapered Roller 33 7001998 1 Seal 34 7001997 1 Spindle 35 7000206 1 Coupling, Input 7010429 1 Bearing Kit (Includes Items 31 & 32)
