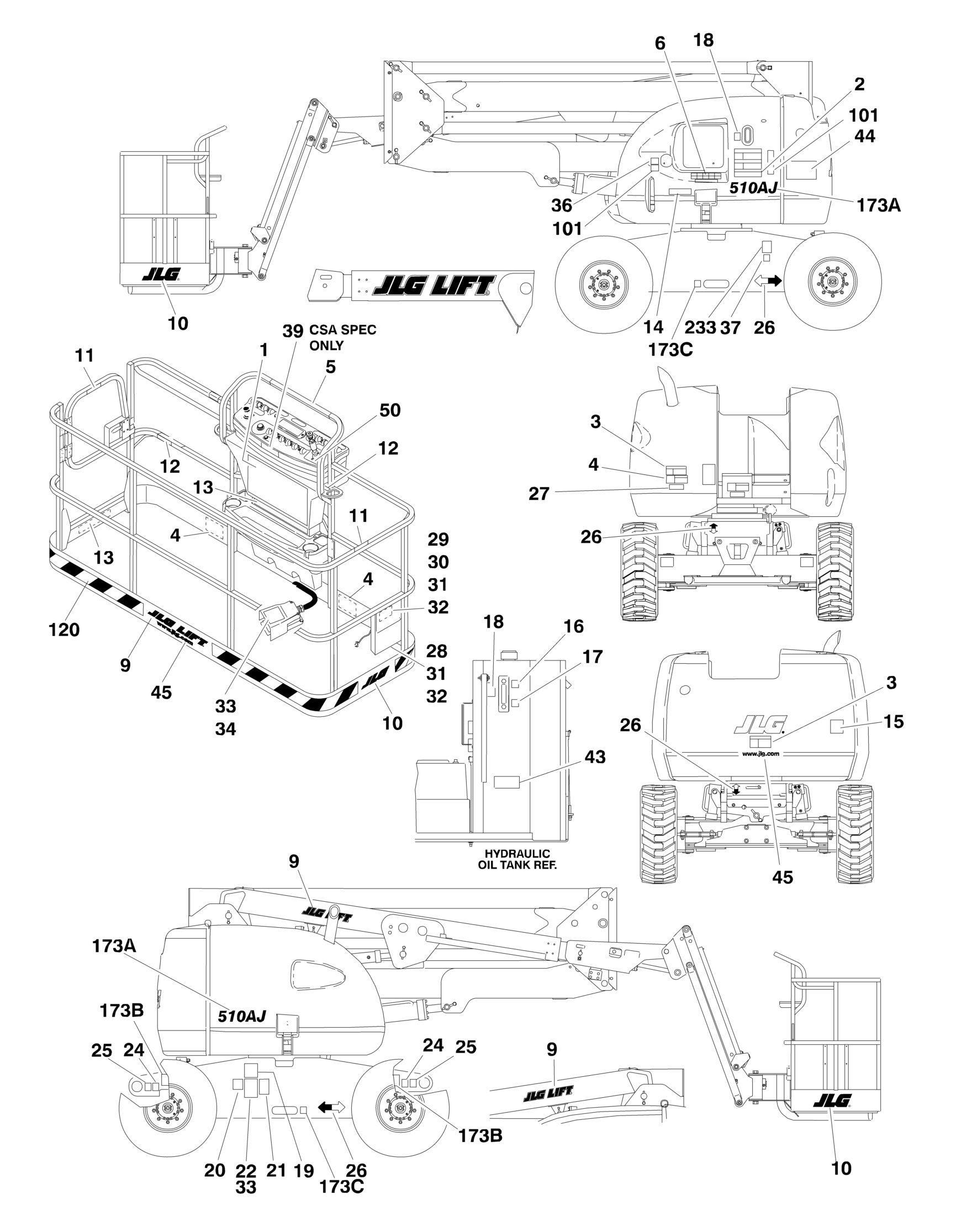

FIGURE 8-2. DECALS INSTALLATION - ANSI EXPORT SPECS
ITEM PART NUMBER QTY
DESCRIPTION
Ref Belgium Built Machines use S/Ns 13xxxxxxxx. Ref Romanian Built Machines use S/N E3xxxxxxxx. Ref DECAL INSTALLATIONS 0272579 Ref Brazil Spec (Spanish/Portuguese) 0272578 Ref Chinese Spec (English/Chinese) 0272577 Ref CSA Spec (English/French) 0272575 Ref Japanese Spec 0272576 Ref Korean Spec 0271189 Ref Latin America Spec (English/Spanish) 0272530 Ref JLG Logo Decals 1 Ref Decal - Danger/Warning Options: 1 1703928 1 Brazil Spec 1 1703925 1 Chinese Spec 1 1703924 1 CSA Spec 1 1703926 1 Japanese Spec 1 1703927 1 Korean Spec 1 1703923 1 Latin American Spec 2 Ref Decal - Danger/Warning Options: 2 1703934 1 Brazil Spec 2 1703931 1 Chinese Spec 2 1703930 1 CSA Spec 2 1703932 1 Japanese Spec 2 1703933 1 Korean Spec 2 1703929 1 Latin American Spec 3 Ref Decal - Danger Electrocution Options: 3 1703940 2 Brazil Spec 3 1703937 2 Chinese Spec 3 1703936 2 CSA Spec 3 1703938 2 Japanese Spec 3 1703939 2 Korean Spec 3 1703935 2 Latin American Spec 4 Ref Decal - Warning/Crushing 4 1703952 3 Brazil Spec 4 1703949 3 Chinese Spec 4 1703948 3 CSA Spec 4 1703950 3 Japanese Spec 4 1703951 3 Korean Spec 4 1703947 3 Latin American Spec 5 Ref Decal - Legend Options: 5 Not Required 0 Brazil/Chinese/Japanese/Korean Spec 5 1702784 1 CSA/Latin America Spec Belgium Built Machines (Prior to SN
1300002605)
5 1706931 1 CSA/Latin America Spec Belgium Built Machines (SN
1300002605 through 1300006700)
5 1001108493 1 CSA/Latin America Spec Belgium Built Machines (SN
1300006701 to Present)
5 1001108493 1 CSA/Latin America Spec Romanian Built Machines (SN
E300000100 through E300001114)
6 Ref Decal - Legend Options: 6 Not Required 0 Brazil/Chinese/Japanese/Korean Spec
REV
11 10 12 10 10 7 2
ITEM PART NUMBER QTY
DESCRIPTION
6 1703808 AR CSA/Latin American Spec Belgium Built Machines (Prior to SN
1300002605)
6 1706941 AR CSA/Latin America Spec Belgium Built Machines (SN
1300002605 to Present)
6 1706941 AR CSA/Latin America Spec Romanian Built Machines (SN
E300000100 through E300001114)
9 1702774 3 Decal - Lift (3 1/2in) 10 1702773 2 Decal - JLG (5 in) 11 Ref Decal - No Hands Options: 11 1704002 2 Brazil Spec 11 Not Required 0 Chinese/Japanese/Korean Spec 11 1704000 2 CSA Spec 11 1704001 2 Latin American Spec 12 1704277 3 Decal - Attach Lanyard 13 Ref Decal - Max Capacity Options: 13 Ref Brazil Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002601) 13 1707134 AR Belgium Built Machines (SN 1300002601 through
1300006894)
13 1001121920 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121920 AR Romanian Built Machines (SN E300000100 through
E300001114)
13 Ref Chinese Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002601) 13 1707060 AR Belgium Built Machines (SN 1300002601 through
1300006894)
13 1001121810 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121810 AR Romanian Built Machines (SN E300000100 through
E300001114)
13 Ref CSA Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002601) 13 1707055 AR Belgium Built Machines (SN 1300002601 through
1300006894)
13 1001121803 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121803 AR Romanian Built Machines (SN E300000100 through
E300001114)
13 Ref Japanese Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002601) 13 1707059 AR Belgium Built Machines (SN 1300002601 through
1300006894)
13 1001121808 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121808 AR Romanian Built Machines (SN E300000100 through
E300001114)
13 Ref Korean Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002601) 13 1707058 AR Belgium Built Machines (SN 1300002601 through
1300006894)
13 1001121918 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121918 AR Romanian Built Machines (SN E300000100 through
E300001114)
13 Ref Latin American Spec 13 1703996 AR Belgium Built Machines (Prior to SN 1300002775) 13 1707056 AR Belgium Built Machines (SN 1300002775 through
1300006894) REV
ITEM PART NUMBER QTY
DESCRIPTION
13 1001121805 AR Belgium Built Machines (SN 1300006895 to Present) 13 1001121805 AR Romanian Built Machines (SN E300000100 through
E300001114)
14
Ref Decal - Max Capacity Options: 14 Ref Brazil Spec 14 1704112 1 Belgium Built Machines (Prior to SN 1300002385) 14 1707133 1 Belgium Built Machines (SN 1300002385 through
1300006894)
14 1001121923 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121923 1 Romanian Built Machines (SN E300000100 through
E300001114)
14 Ref Chinese Spec 14 Not Required 0 Belgium Built Machines (Prior to SN 1300002601) 14 1707044 1 Belgium Built Machines (SN 1300002601 through
1300006894)
14 1001121823 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121823 1 Romanian Built Machines (SN E300000100 through
E300001114)
14 Ref CSA Spec 14 1704112 1 Belgium Built Machines (Prior to SN 1300002601) 14 1707047 1 Belgium Built Machines (SN 1300002601 through
1300006894)
14 1001121816 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121816 1 Romanian Built Machines (SN E300000100 through
E300001114)
14 Ref Japanese Spec 14 Not Required 0 Belgium Built Machines (Prior to SN 1300002385) 14 1707054 1 Belgium Built Machines (SN 1300002385 through
1300006894)
14 1001121821 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121821 1 Romanian Built Machines (SN E300000100 through
E300001114)
14 Ref Korean Spec 14 Not Required 0 Belgium Built Machines (Prior to SN 1300002601) 14 1707042 1 Belgium Built Machines (SN 1300002601 through
1300006894)
14 1001121921 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121921 1 Romanian Built Machines (SN E300000100 through
E300001114)
14 Ref Latin American Spec 14 1704112 1 Belgium Built Machines (Prior to SN 1300002775) 14 1707049 1 Belgium Built Machines (SN 1300002775 through
1300006894)
14 1001121818 1 Belgium Built Machines (SN 1300006895 to Present) 14 1001121818 1 Romanian Built Machines (SN E300000100 through
E300001114)
15 Ref Decal - USA Options: 15 3251813 1 Brazil/CSA/Latin American Spec 15 Not Required 0 Chinese/Japanese/Korean Spec 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701503 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701503 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 19 Ref Decal - Inspection Options:
REV
ITEM PART NUMBER QTY DESCRIPTION
19 1704008 1 Brazil Spec 19 1704006 1 CSA Spec 19 1704007 1 Latin American Spec 19 Not Required 0 Chinese/Japanese/Korean Spec 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down/Lift 25 1701500 4 Decal - Tie Down/Lift 26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251243 1 120V-60Hz - Brazil/CSA/Latin American Spec 27 Not Required 0 Chinese/Japanese/Korean Spec 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in Regular 32 3311405 5 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 Ref Decal - Footswitch Options: 34 1703985 1 Brazil Spec 34 1703982 1 Chinese Spec 34 1703984 1 CSA Spec 34 1703980 1 Japanese Spec 34 1703981 1 Korean Spec 34 1703983 1 Latin American Spec 35 Not Required 0 Decal - Maximum Tire Load 36 Ref Decal - Fuel Options: 36 1701542 1 Ford Engine Machines 36 1701505 1 Deutz Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines (English Language) 38 1704271 1 Dual Fuel Machines (CSA Spec) 38 1702720 1 Dual Fuel Machines (Spanish Language) 39 Ref Decal - CSA Options: 39 1705514 1 CSA Spec 39 Not Required 0 Brazil/ Chinese/ Japanese/ Korean/ Latin American Spec 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram 45 1704885 2 Decal - Website 46 0641406 4 Bolt, 1/4in-20NC x 3/4in (Not Shown) 50 Ref Decal, Drive/Steer Options (Belgium Built Machines): (SN
1300006701 to Present)
50 Ref Decal, Drive/Steer Options (Romanian Built Machines): (SN
E300000100 through E300001114)
50 1705905 1 Brazil Spec 50 1705430 1 Chinese Spec
REV
ITEM PART NUMBER QTY
50 1705429 1 CSA Spec 50 1705426 1 Japanese Spec 50 1705427 1 Korean Spec 50 1705910 1 Latin American Spec 0010717 Ref DECAL OPTIONS
101
DESCRIPTION
Ref Decal - Low Sulfur Fuel Options (Caterpillar, Deutz and Perkins Engine Machines): 101 1001108923 1 CSA Spec 101 Not Required 0 Brazil/ Chinese/ Japanese/ Korean/ Latin American Spec 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/6.61m Decal - Warning Stripes 173 0272582 Ref Model Designation Decal Installation 173A 1705487 2 Decal - 510AJ 173B 1705669 4 Decal - Max Tire Load 173C 1702300 2 Decal - Tie-Down
REV
2
