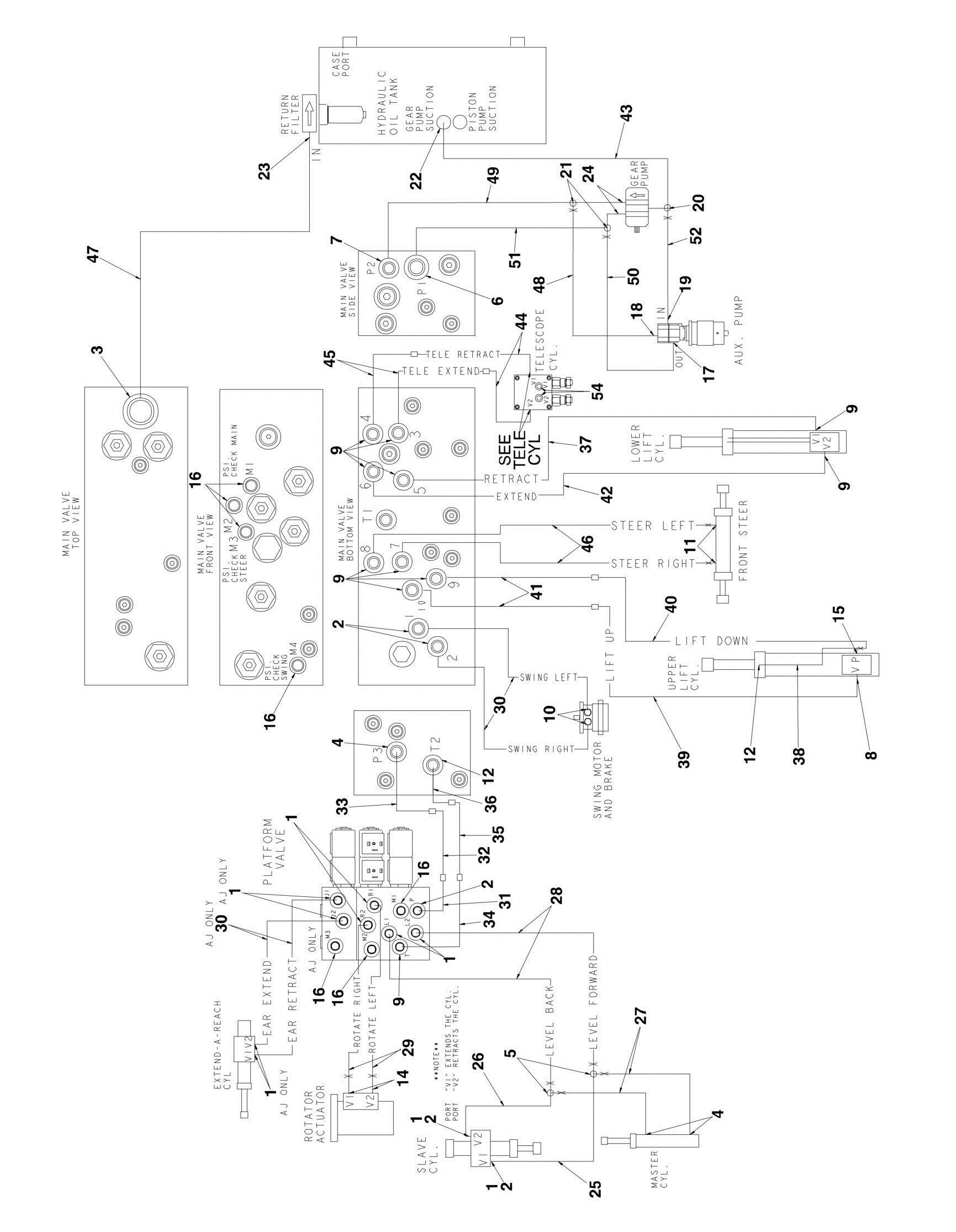

FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM

FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM

FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

Ref STANDARD HYDRAULIC DIAGRAM 2792580 Ref Turntable Hydraulic Diagram 2792584 Ref Main Boom Hydraulic Diagram 2792583 Ref Tower Boom Hydraulic Diagram 1 2110404 10 Fitting, Straight 2 2110406 3 Fitting, Straight 3 2111212 1 Fitting, Straight 4 2130406 3 Fitting, Elbow 5 2170504 2 Fitting, Tee 6 2150808 1 Fitting, Elbow 7 2150606 1 Fitting, Elbow 8 2170206 1 Fitting, Long Elbow 9 2110606 11 Fitting, Straight 10 2110410 2 Fitting, Straight 11 2110606 2 Fitting, Straight (1.25in Length) 11 2170106 2 Fitting, Long Straight (2.27in Length) 12 2130606 2 Fitting, Elbow 14 2150404 2 Fitting, Elbow 15 2170406 1 Fitting, Tee 16 2221086 7 Fitting, Pressure, Check 17 Ref Fitting Options: 17 2130604 1 Fitting, Elbow 17 2110604 1 Fitting, Straight 18 2110604 1 Fitting, Straight 19 2131210 1 Fitting, Elbow 20 2170316 1 Fitting, Tee 21 2170808 2 Fitting, Tee 22 2111620 1 Fitting, Straight 23 2111216 1 Fitting, Straight 24 4641199 2 Valve, Check 25 2753546 1 Hose 26 2753546 1 Hose 27 2753845 2 Hose 28 2753548 2 Hose 29 2753557 2 Hose 30 Ref Hose Options: 30 2753550 2 Main Boom Hydraulic Diagram (66in Length) 30 2753675 2 Standard Hydraulic Diagram (84in Length) 31 2753847 1 Hose 32 2753552 1 Hose 33 2753553 1 Hose 34 2753846 1 Hose 35 2753561 1 Hose 36 2753562 1 Hose 37 2753563 1 Hose 38 4568280 1 Tube 39 2753565 1 Hose 40 2753566 1 Hose 41 2753567 2 Hose 42 2753568 1 Hose

REV

6 2 1

ITEM PART NUMBER QTY DESCRIPTION

43 2753611 1 Hose 44 2753569 2 Hose 45 2753570 2 Hose 46 2753571 2 Hose 47 2753613 1 Hose 48 2753572 1 Hose 49 2753573 1 Hose 50 2753589 1 Hose 51 2753590 1 Hose 52 2753614 1 Hose 53 1705091 4 Decal, Hose Tags (Not Shown) 54 2130606 2 Fitting, Elbow
