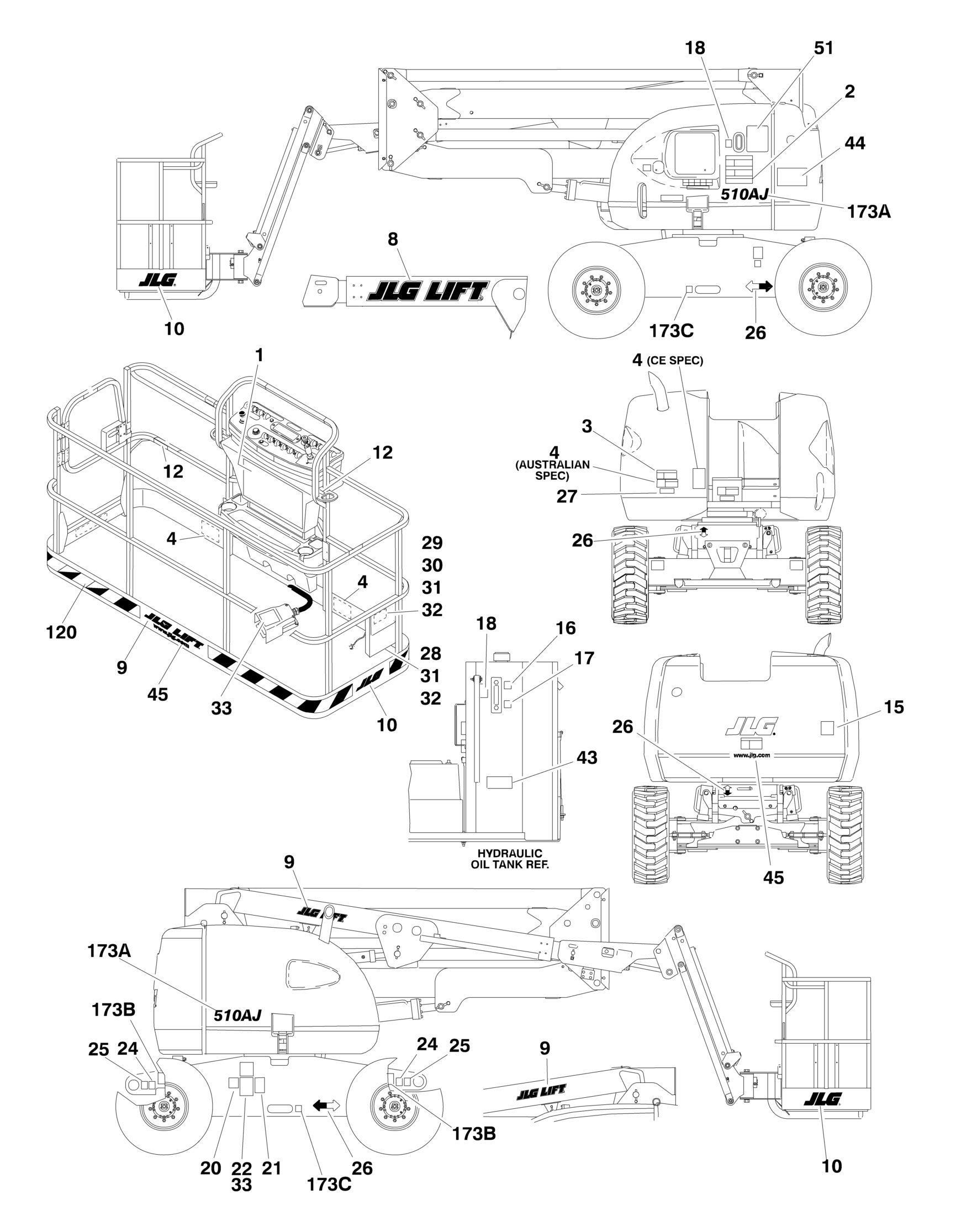

FIGURE 8-3. DECALS INSTALLATION - CE AND AUSTRALIAN SPECS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref Belgium Built Machines use S/Ns 13xxxxxxxx. Ref Romanian Built Machines use S/N E3xxxxxxxx. Ref DECAL INSTALLATIONS 0272574 Ref Australian Spec 7
Ref Dutch Spec Options: 0272500 Ref Belgium Built Machines (Prior to SN 1300000178)
5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 Ref French Spec Options: 0272502 Ref Belgium Built Machines (Prior to SN 1300000178) 5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 Ref German Spec Options: 0272499 Ref Belgium Built Machines (Prior to SN 1300000178) 5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 Ref Italian Spec Options: 0272501 Ref Belgium Built Machines (Prior to SN 1300000178) 5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 0273184 Ref Norwegian Spec 3 Ref Spanish Spec Options: 0272503 Ref Belgium Built Machines (Prior to SN 1300000178) 5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 Ref UK Spec Options: 0272498 Ref Belgium Built Machines (Prior to SN 1300000178) 5 0273452 Ref Belgium Built Machines (SN 1300000178 to Present) 4 0273452 Ref Romanian Built Machines (SN E300000100 through
E300001114)
4 0272530 Ref JLG Logo Decals 1 1 Ref Decal - Danger/Warning Options: 1 1703992 1 Australian Spec 1 1704809 1 Dutch Spec 1 1704811 1 French Spec 1 1704767 1 German Spec 1 1704810 1 Italian Spec 1 1705270 1 Norwegian Spec 1 1704812 1 Spanish Spec 1 1704808 1 UK Spec 2 Ref Decal - Danger/Warning Options: 2 1705332 1 Australian Spec 2 1705410 1 Dutch Spec 2 1705412 1 French Spec 2 1705409 1 German Spec 2 1705411 1 Italian Spec
ITEM PART NUMBER QTY DESCRIPTION
2 1705272 1 Norwegian Spec 2 1705413 1 Spanish Spec 2 1705408 1 UK Spec 4 1701518 3 Decal - Warning/Crushing 9 1702774 3 Decal - Lift (3 1/2in) 10 1702773 2 Decal - JLG (5 in) 12 1704277 3 Decal - Attach Lanyard 15 1705084 1 Decal - Sound Power Level (CE Spec Only) 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701503 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701503 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down /Lift 25 1701500 4 Decal - Tie Down /Lift 26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251242 1 240V-50Hz - Australian Spec 27 Not Required 0 All Other Specs 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 Ref Fastener Options: 33 2080057 2 Amtak 33 3820001 4 Rivet (Norwegian Spec Only) 34 Ref Decal - Footswitch Options: 34 3252347 1 Australian Spec 34 Ref Dutch Spec 34 1703518 1 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114)
34
Ref French Spec 34 1693292 1 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114)
34 Ref German Spec 34 1693294 1 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114)
34 Ref Italian Spec 34 1701600 1 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114) REV
ITEM PART NUMBER QTY DESCRIPTION
34 1705275 1 Norwegian Spec 34 Ref Spanish Spec 34 1701791 1 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114)
34
Ref UK Spec 34 Not Required 0 Belgium Built Machines (Prior to SN 1300000178) 34 1705828 1 Belgium Built Machines (SN 1300000178 to Present) 34 1705828 1 Romanian Built Machines (SN E300000100 through
E300001114)
35 Not Required 0 Decal - Maximum Tire Load 36 1701505 1 Decal - Fuel 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram 45 1704885 2 Decal - Website 46 0641406 4 Bolt, 1/4in-20NC x 3/4in (Not Shown) 47 1705821 1 Decal, Tipping/Elect (PLF) (Not Shown) 48 1705822 1 Decal, Elect/Safety Manual (MTB) (Not Shown) 51 1001112551 1 Decal - Emergency Controls (Australian Specs) (Belgium Built Machines) (SN 1300006704 to Present) 51 1001112551 1 Decal - Emergency Controls (Australian Specs) (Romanian Built Machines) (SN E300000100 through E300001114) 0010578 Ref DECAL OPTIONS 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/6.61m Decal - Warning Stripes 173 0272582 Ref Model Designation Decal Installation 173A 1705487 2 Decal - 510AJ 173B 1705669 4 Decal - Max Tire Load 173C 1702300 2 Decal - Tie-Down
REV
2
