1300003476 to Present, SN E300000100 through E300001114

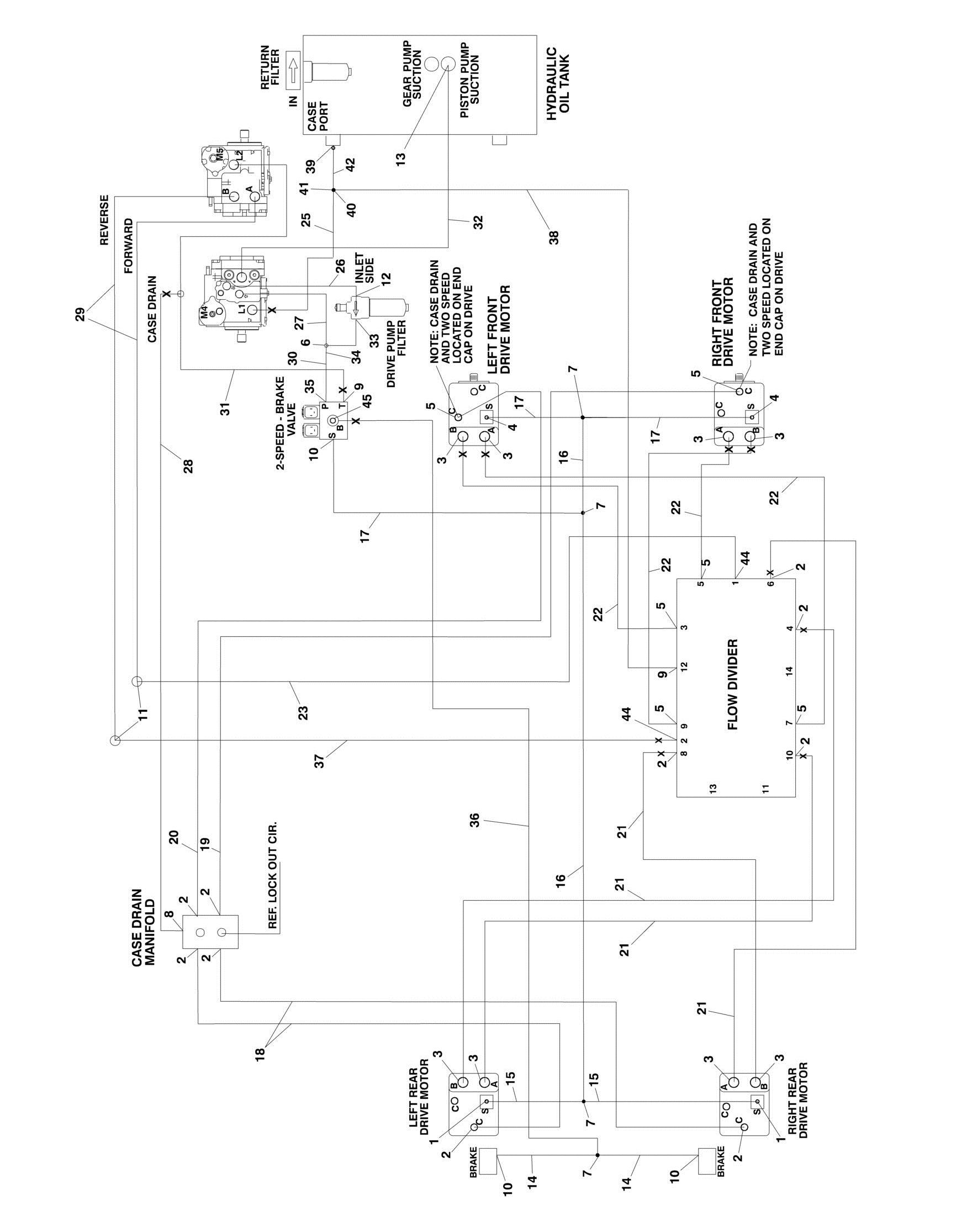

FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003476 to Present, SN E300000100 through E300001114)

FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003476 to Present, SN E300000100 through E300001114)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. 1001094635 Ref DRIVE HYDRAULIC DIAGRAM - 4WD 1 2110406 2 Fitting, Straight 2 2110808 10 Fitting, Straight 3 2110812 8 Fitting, Straight 4 2130406 2 Fitting, Elbow 5 2130808 6 Fitting, Elbow 6 2221088 1 Fitting, Tee 7 2170504 4 Fitting, Tee 8 2130812 1 Fitting, Elbow 9 2110604 2 Fitting, Straight 10 2130404 3 Fitting, Elbow 11 2221085 2 Fitting, Elbow 12 2131008 1 Fitting, Elbow 13 2111620 1 Fitting, Straight 14 2753546 2 Hose 15 2753537 2 Hose 16 2753540 2 Hose 17 2753541 3 Hose 18 2753586 2 Hose 19 2753580 1 Hose 20 2753581 1 Hose 21 2754244 4 Hose 22 1001094649 4 Hose 23 2753605 1 Hose 25 2753843 1 Hose 26 2753594 1 Hose 27 2753595 1 Hose 28 2753588 1 Hose 29 2753604 2 Hose 30 2753538 1 Hose 31 2753578 1 Hose 32 2753610 1 Hose 33 2221216 1 Fitting, Straight 34 2221183 1 Fitting, Straight 35 2110404 1 Fitting, Straight 36 2753787 1 Hose 37 2753602 1 Hose 38 2754471 1 Hose 39 2131216 1 Fitting, Elbow 40 2221296 1 Fitting, Straight 41 2170512 1 Fitting, Tee 42 2753698 1 Hose 44 2111212 2 Fitting, Straight 45 4641281 1 Valve, Check

REV

3
