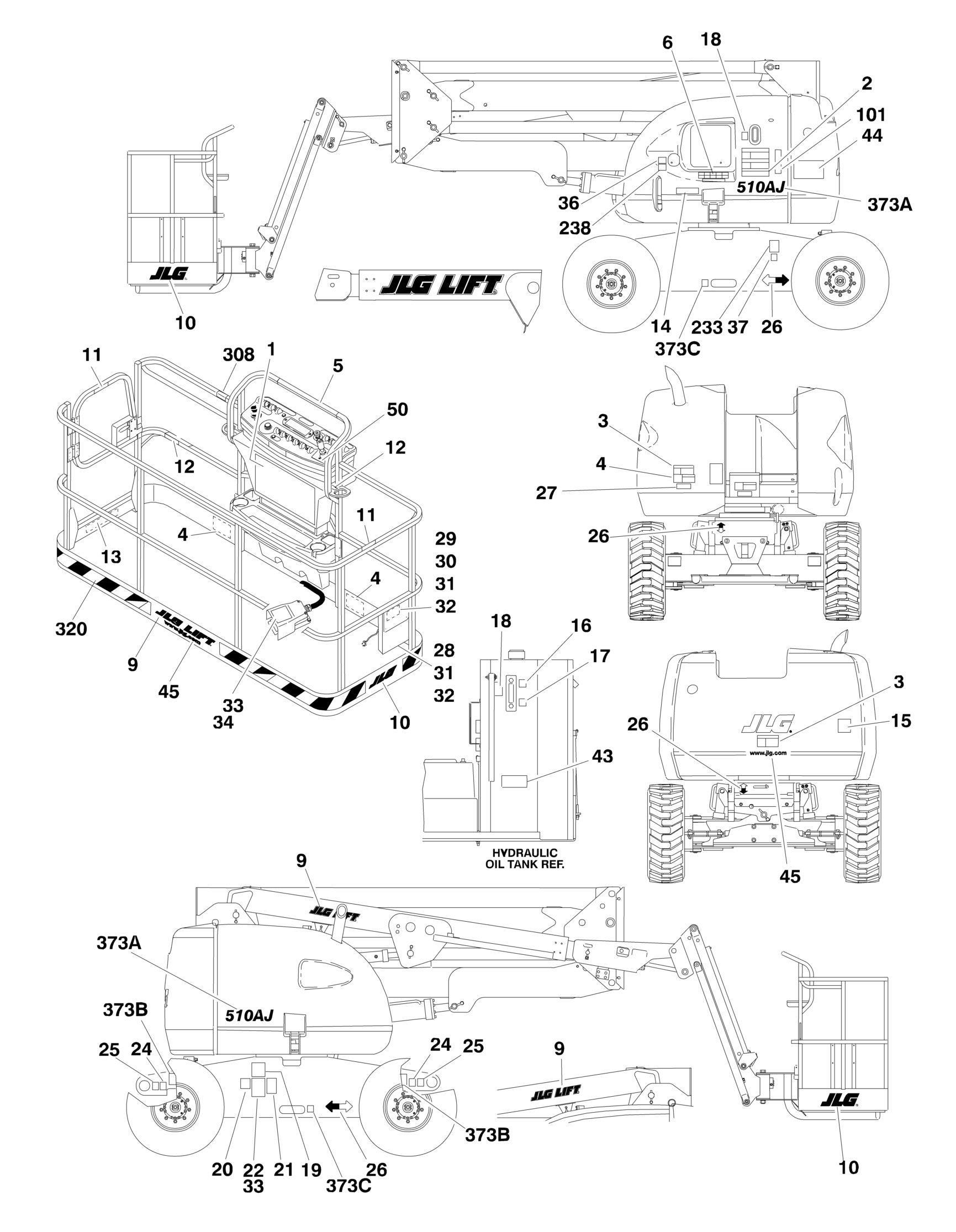

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC

ITEM PART NUMBER QTY

DESCRIPTION

Ref Belgium Built Machines use S/Ns 13xxxxxxxx. Ref Romanian Built Machines use S/N E3xxxxxxxx. Ref STANDARD DECAL INSTALLATION 0272573 Ref 450A/AJ Series II 0272530 Ref JLG Logo Decals 1 1703797 1 Decal - Danger/Warning 2 1703798 1 Decal - Danger/Warning 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning/Crushing 5 Ref Decal - Legend Options: 5 1702784 1 Belgium Built Machines (Prior to SN 1300002605) 5 1706931 1 Belgium Built Machines (SN 1300002605 through

1300006700)

5 1001108493 1 Belgium Built Machines (SN 1300006701 to Present) 5 1001108493 1 Romanian Built Machines (SN E300000100 through

E300001114)

6 Ref Decal - Legend Options: 6 1703808 1 Belgium Built Machines (Prior to SN 1300002605) 6 1706941 1 Belgium Built Machines (SN 1300002605 to Present) 6 1706941 1 Romanian Built Machines (SN E300000100 through

E300001114)

9 1702774 3 Decal - JLG Lift (3 1/2in) 10 1702773 2 Decal - JLG (5in) 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard Here 13 Ref Decal - Max Capacity Options: 13 1701645 1 Belgium Built Machines (Prior to SN 1300006859) 13 1001121801 1 Belgium Built Machines (SN 1300006859 to Present) 13 1001121801 1 Romanian Built Machines (SN E300000100 through

E300001114)

14 Ref Decal - Max Capacity 14 1702688 1 Belgium Built Machines (SN 130000001 through 1300002600) 14 1707013 1 Belgium Built Machines (SN 1300002601 through

1300006858)

14 1001121814 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121814 1 Romanian Built Machines (SN E300000100 through

E300001114)

15 3251813 1 Decal - USA 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701502 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701502 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 19 See Note 1 Decal - Inspection (Note: Was p/n 1701502 - No Longer Required) 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down /Lift 25 1701500 4 Decal - Tie Down /Lift 26 1701529 4 Decal- Arrow

REV

12 1

ITEM PART NUMBER QTY DESCRIPTION

27 3251243 1 Nameplate 120V-60Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard (Belgium Built Machines) (Prior to SN

1300006895)

30 0641408 1 Bolt 1/4in-20NC x 1in (Belgium Built Machines) (Prior to SN

1300006895)

31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 3820001 AR Rivet 34 3252347 1 Decal - Footswitch 36 Ref Decal - Fuel 36 1701542 1 Gas Engine Machines 36 1701505 1 Diesel Engine Machines 37 Ref Decal - LPG Gas 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram 45 1704885 2 Decal - Website 46 0641406 4 Bolt 1/4in-20NC x 3/4in (Not Shown) 50 1705351 1 Decal, Drive/Steer (Belgium Built Machines) (SN 1300006701 to

Present)

50 1705351 1 Decal, Drive/Steer (Romanian Built Machines) (SN E300000100

through E300001114)

0272341 Ref TIRE SEALANT DECAL INSTALLATIONS 101 1705363 1 Decal - Tire Sealant 0010717 Ref DECAL OPTIONS 233 1700818 1 Decal - LP (Dual Fuel Machines Only) 238 1001108923 1 Decal - Low Sulfur Fuel (Caterpillar, Deutz and Perkins Engine Machines)

308 Ref Decal - Warning Prop Options:

308 1702962 Diesel Machines

308 1702961

Gas Machines 0272165 Ref Warning Stripe Decal Installation 320 4420051 21.7 ft/6.61m Decal - Warning Stripes 373 0272582 Ref Model Designation Decal Installation 373A 1705487 2 Decal - 510AJ 373B 1705669 4 Decal - Max Tire Load 373C 1702300 2 Decal - Tie-Down
