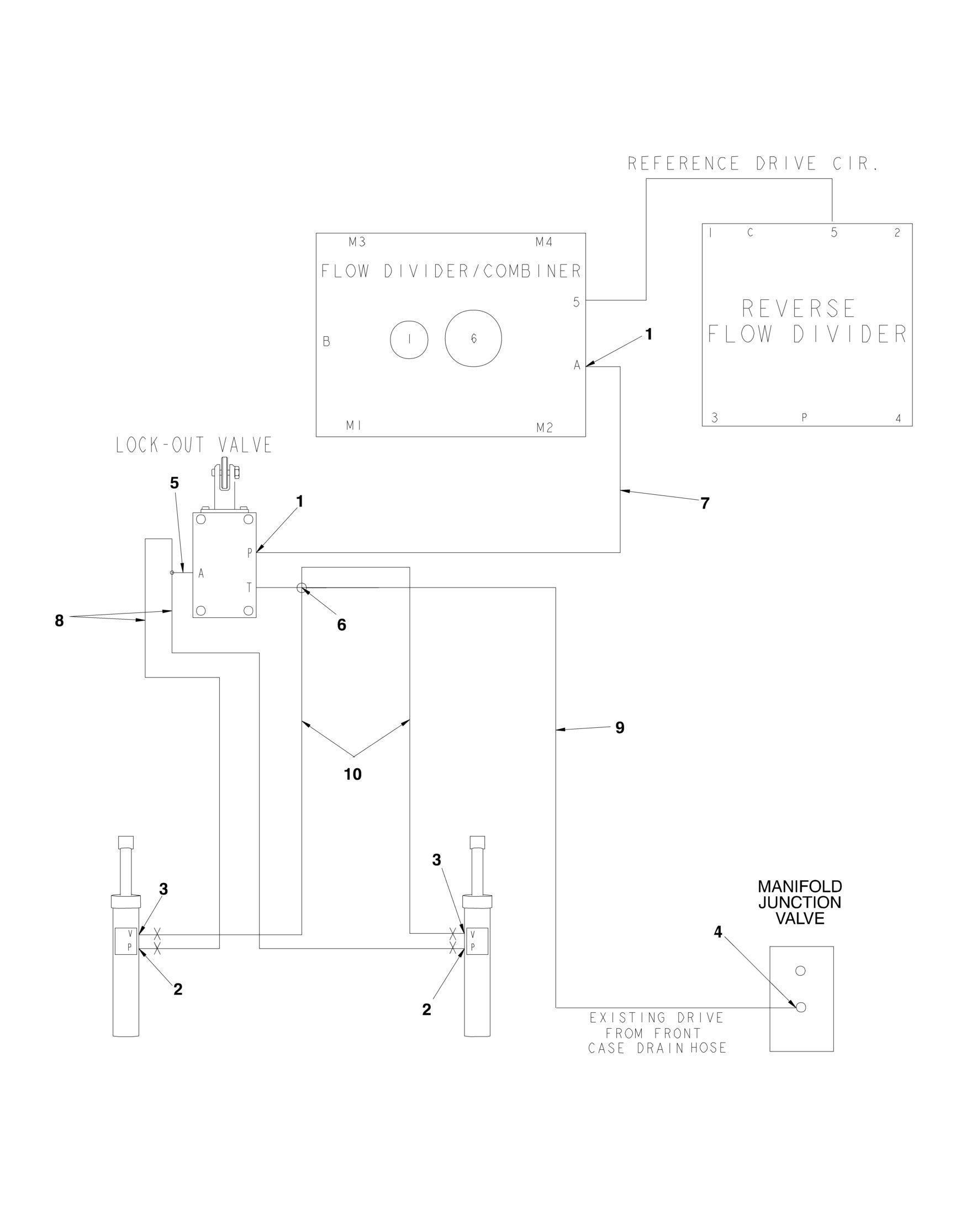

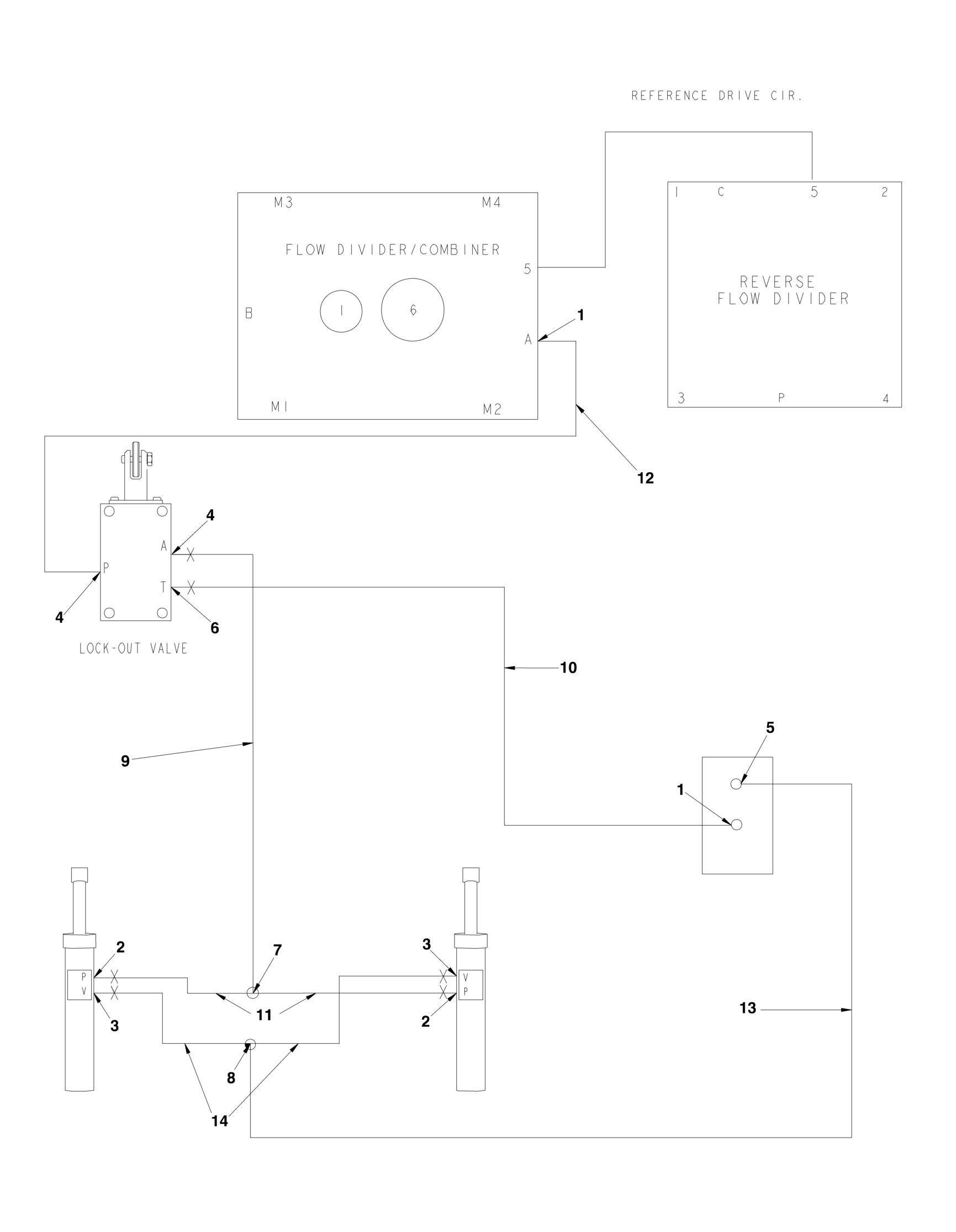

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES) (Prior to SN 1300000353 FIGURE 6-2. AXLE LOCKOUT HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES) (SN 1300000353 through 1300003222) ......................................................................................................................................................................................................236
ITEM PART NUMBER QTY
DESCRIPTION
Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. Ref AXLE LOCKOUT HYDRAULIC DIAGRAM 2792579 Ref 4WD 1 2110404 2 Fitting, Fitting 2 2110406 2 Fitting, Straight 3 2110606 2 Fitting, Straight 4 2130604 1 Fitting, Elbow 5 2170404 1 Fitting, Tee 6 2221083 1 Fitting, Cross 7 2753540 1 Hose 8 2753543 2 Hose 9 2753576 1 Hose 10 2753855 2 Hose
REV
1
ITEM PART NUMBER QTY
DESCRIPTION
Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. Ref AXLE LOCKOUT HYDRAULIC DIAGRAM 2792621 Ref 4WD 1 2110404 2 Fitting, Fitting 2 2110406 2 Fitting, Straight 3 2110606 2 Fitting, Straight 4 2130404 2 Fitting, Elbow 5 2130604 1 Fitting, Elbow 6 2150404 1 Fitting, Elbow 7 2170504 1 Fitting, Cross 8 2170506 1 Fitting, Cross 9 2753935 1 Hose 10 2753934 1 Hose 11 2753936 2 Hose 12 2753937 1 Hose 13 2753625 1 Hose 14 2753855 2 Hose
REV
3
