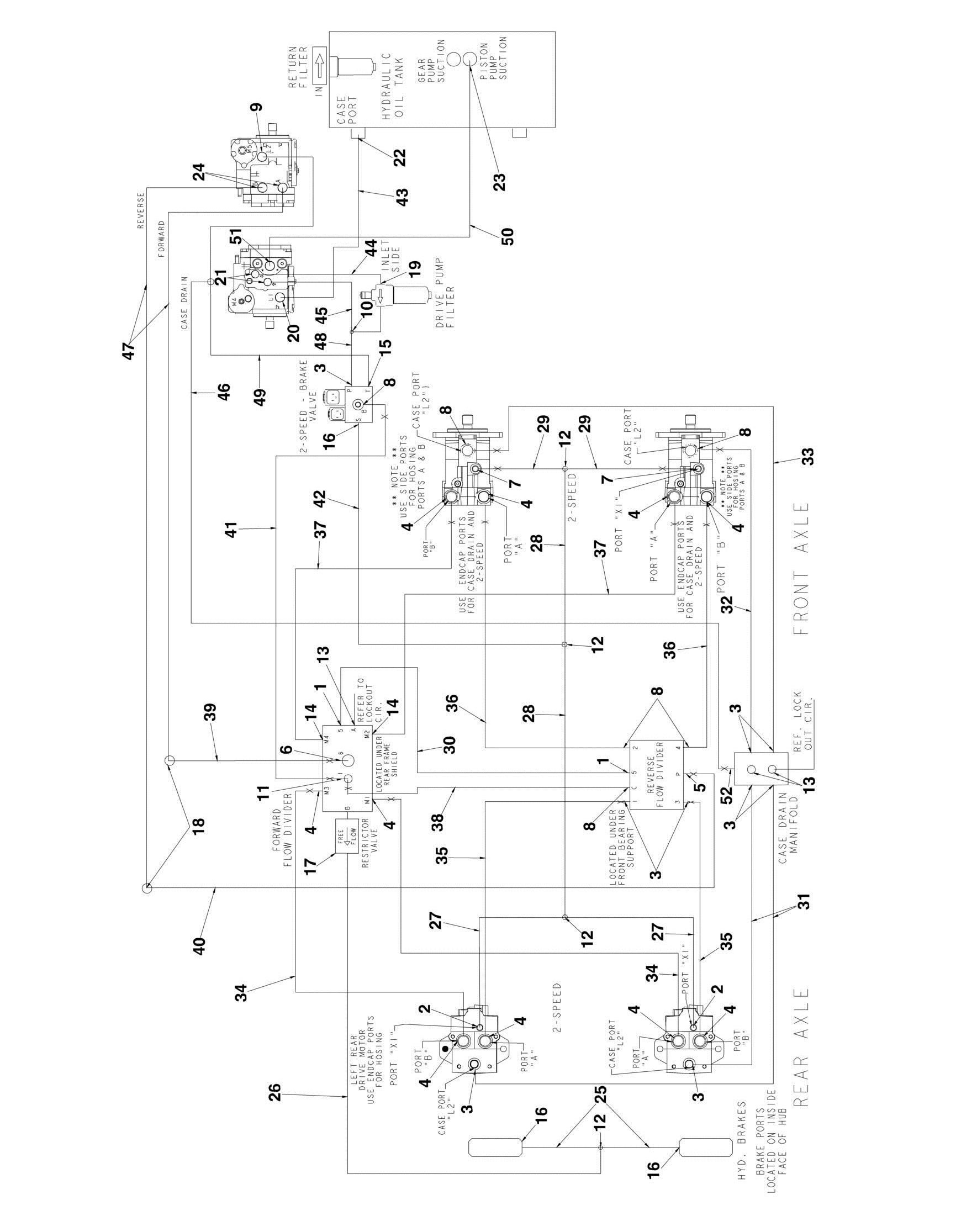

FIGURE 6-4. DRIVE HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES) (Prior to SN 1300003476 FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN
ITEM PART NUMBER QTY DESCRIPTION REV
Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. Ref DRIVE HYDRAULIC DIAGRAM - 4WD 2792578 Ref Belgium Built Machines (Prior to SN 1300001243) 5 2792707 Ref Belgium Built Machines (SN 1300001243 through 1300003476) 4 1 2110404 2 Fitting, Straight 2 2110406 2 Fitting, Straight 3 2110808 9 Fitting, Straight 4 2110812 10 Fitting, Straight 5 2111212 1 Fitting, Straight 6 2111216 1 Fitting, Straight 7 2130406 2 Fitting, Elbow 8 2130808 6 Fitting, Elbow 9 2221084 1 Fitting, Tee (Prior to SN 1300001788) 10 2221088 1 Fitting, Tee 11 2170308 1 Fitting, Tee 12 2170504 4 Fitting, Tee 13 2220235 3 Plug (Prior to SN 1300001243) 14 2130812 2 Fitting, Elbow 15 2110604 1 Fitting, Straight 16 2130404 3 Fitting, Elbow 17 4641198 1 Valve, Check (Use P/N 4641281) 18 2221085 2 Fitting, Elbow 19 Ref Fitting, Elbow Options: 19 2131012 1 Belgium Built Machines (Prior to SN 1300001243) 19 2131008 1 Belgium Built Machines (SN 1300001243 through
1300003476)
20 2131212 1 Fitting, Elbow (Belgium Built Machines) (Prior to SN
1300001788)
21 2111010 2 Fitting, Straight (Belgium Built Machines) (Prior to SN
1300001788)
22 2131216 2 Fitting, Straight 23 2111620 1 Fitting, Straight 24 2151212 2 Fitting, Elbow (Belgium Built Machines) (Prior to SN
1300001788)
25 2753546 2 Hose 26 2753538 1 Hose 27 2753537 2 Hose 28 2753555 2 Hose 29 2753856 2 Hose 30 2753542 1 Hose 31 2753586 2 Hose 32 2753553 1 Hose 33 2753553 1 Hose 34 2753858 2 Hose 35 2753859 2 Hose 36 2753600 2 Hose 37 2753601 2 Hose 38 2753582 1 Hose 39 2753602 1 Hose
ITEM PART NUMBER QTY DESCRIPTION
40 2753603 1 Hose 41 2753585 1 Hose 42 2753555 1 Hose 43 2753597 1 Hose 44 2753594 1 Hose 45 2753595 1 Hose 46 2753588 1 Hose 47 2753854 2 Hose 48 2753584 1 Hose 49 2753578 1 Hose 50 2753611 1 Hose 51 2111612 1 Fitting, Straight (Belgium Built Machines) (Prior to SN
1300001788)
52
Ref Fitting Options: 52 2150812 1 Elbow (Belgium Built Machines) (Prior to SN 1300001243) 52 2221216 1 Straight (Belgium Built Machines) (SN 1300001243 through
