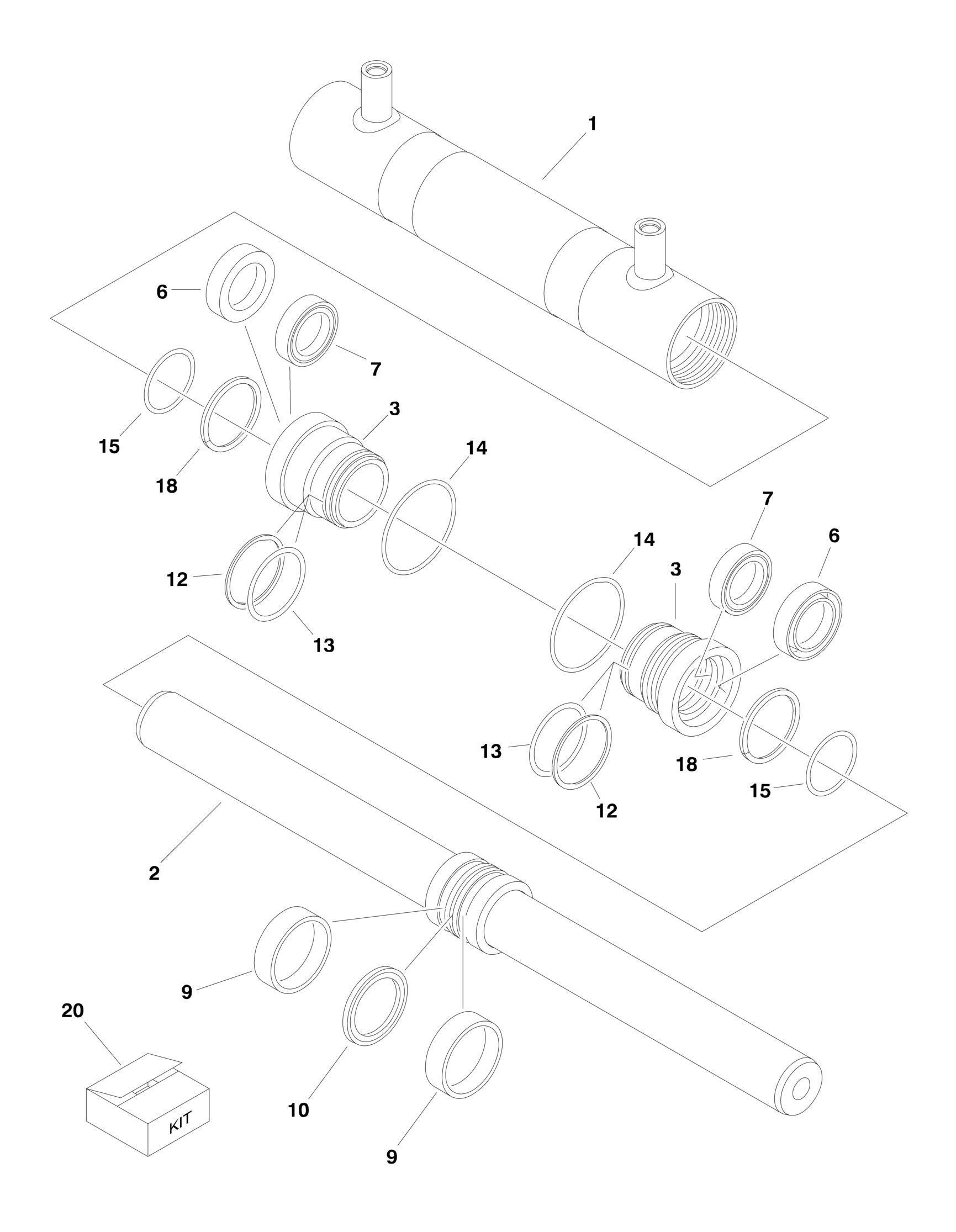

FIGURE 5-8. STEER CYLINDER ASSEMBLY

FIGURE 5-8. STEER CYLINDER ASSEMBLY

FIGURE 5-8. STEER CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1684246 Ref STEER CYLINDER ASSEMBLY 1 7026105 1 Barrel 2 7026106 1 Rod 3 7026104 2 Head 6 7026107 2 Wiper 7 7026107 2 Seal 9 7026107 2 Ring, Wear 10 7026107 1 Seal 12 7026107 2 Ring, Back-up 13 7026107 2 O-Ring 14 7026107 2 O-Ring 15 7026100 2 O-Ring 18 70002219 2 Ring, Retaining 20 7026107 1 Seal Kit, Cylinder (Includes Items 6, 7, 9, 10 & 12-14)

REV

B
