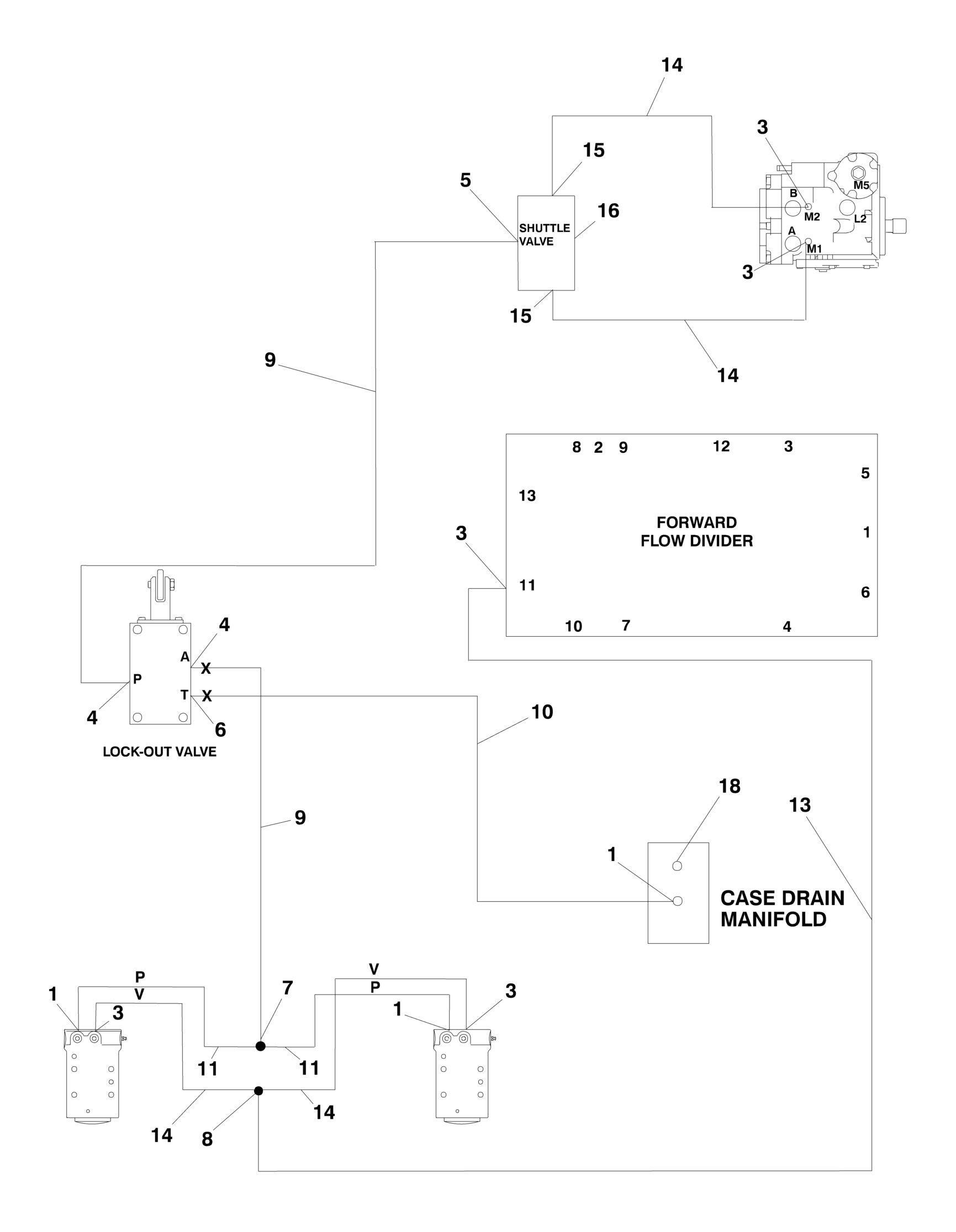

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) SN 1300003223 to Present, SN E300000100 through E300001114

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003223 to Present, SN E300000100 through E300001114)

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003223 to Present, SN E300000100 through E300001114)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. Ref AXLE LOCKOUT HYDRAULIC DIAGRAM 2792778 Ref 4WD 1 2110404 3 Fitting, Straight 3 2110606 5 Fitting, Straight 4 2130404 2 Fitting, Elbow 5 1001098446 1 Fitting, Straight 6 2150404 1 Fitting, Elbow 7 2170504 1 Fitting, Tee 8 2170506 1 Fitting, Tee 9 2753782 2 Hose 10 2753934 1 Hose (Use p/n 1001103977) 11 2753939 2 Hose 13 2753851 1 Hose 14 2753625 4 Hose 15 2130606 2 Fitting, Elbow 16 8902175 1 Valve, Shuttle 18 2220235 1 Plug

REV

6
