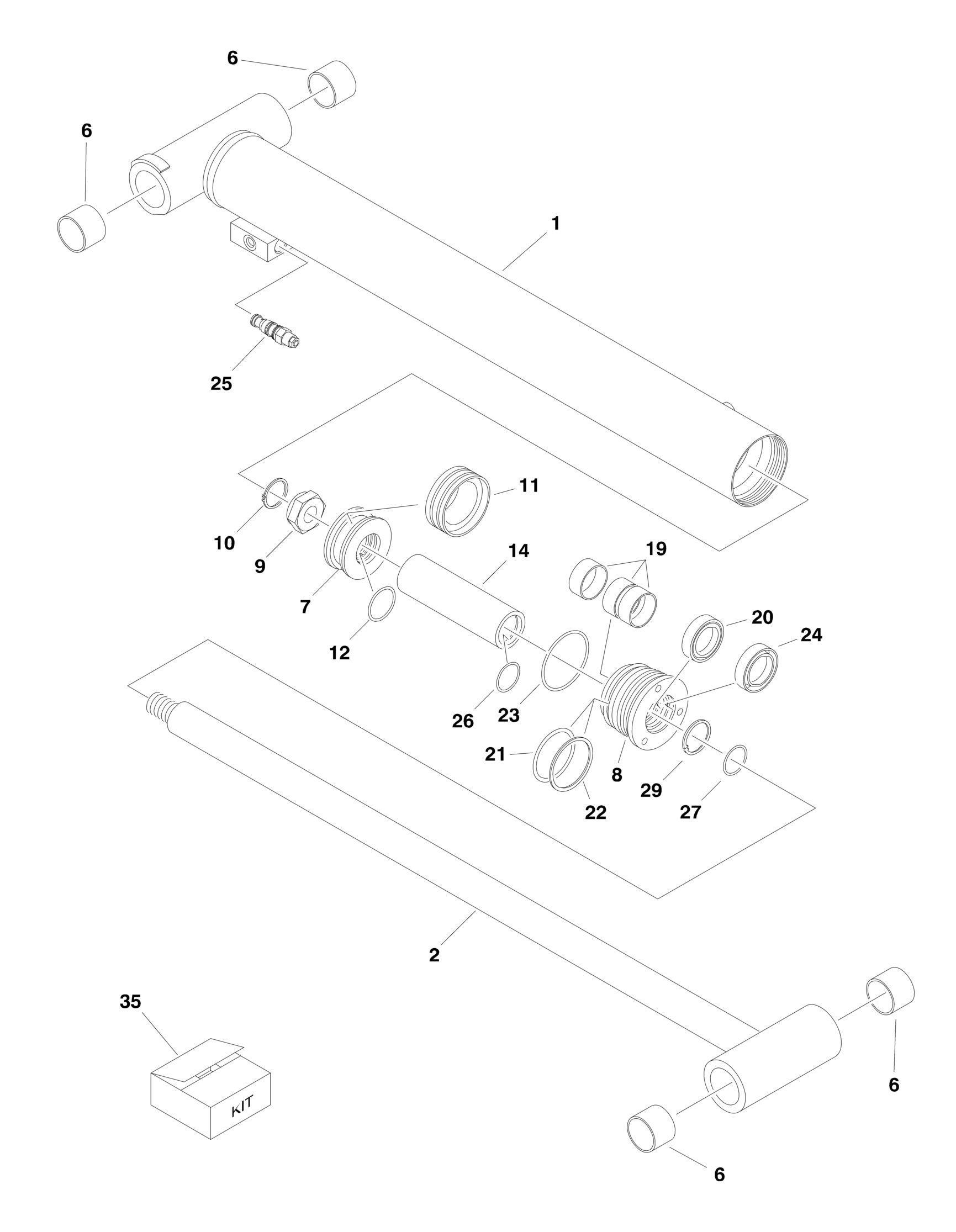

FIGURE 5-5. LIFT (MAIN BOOM) CYLINDER ASSEMBLY

FIGURE 5-5. LIFT (MAIN BOOM) CYLINDER ASSEMBLY

FIGURE 5-5. LIFT (MAIN BOOM) CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1684244 Ref MAIN LIFT CYLINDER ASSEMBLY 1 7026101 1 Barrel 2 7026102 1 Rod 6 0961950 4 Bearing 7 7026097 1 Piston 8 7026098 1 Head 9 7026099 1 Nut 10 70002224 1 Ring, Retaining 11 70002225 1 Seal 12 70002225 1 O-Ring 14 See Note 1 Spacer (Note: Not Available for Purchase) 19 70002225 3 Ring, Wear 20 70002225 1 Seal 21 70002225 1 O-Ring 22 70002225 1 Ring, Back-up 23 70002225 1 O-Ring 24 70002225 1 Wiper 25 4640936 1 Cartridge, Valve 25 2900770 1 Seal Kit - 4640936 Valve 26 Item 35 1 O-Ring 27 Item 35 1 O-Ring 29 70002219 1 Ring, Retaining 35 70002225 1 Seal Kit, Cylinder (Includes Items 11, 12, 19-24, 26 & 27)
