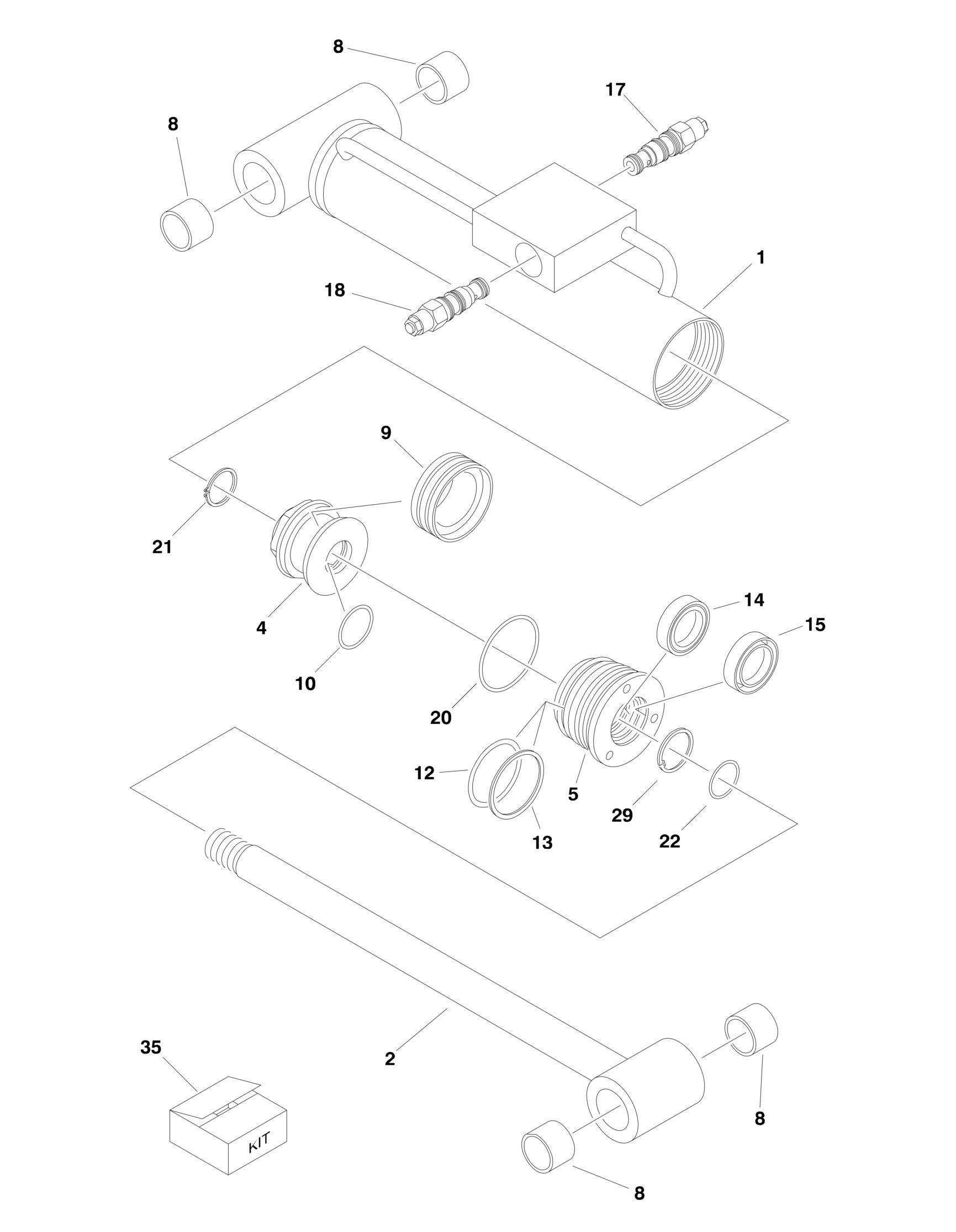

FIGURE 5-3. LEVEL (PLATFORM) CYLINDER ASSEMBLY

FIGURE 5-3. LEVEL (PLATFORM) CYLINDER ASSEMBLY

FIGURE 5-3. LEVEL (PLATFORM) CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

Ref Note: Original Equipment Cylinder may have been replaced

with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.

Ref LEVEL CYLINDER ASSEMBLY 1684240 Ref Belgium Built Machines (Prior to SN 1300004150) 1001094789 Ref Belgium Built Machines (SN 1300004150 to Present) 1001094789 Ref Romanian Built Machines (SN E300000100 through

E300001114)

1 7026117 1 Barrel 2 7026118 1 Rod 4 7026081 1 Piston 4 7026082 NLA Head (1684240 Cylinder) (Use p/n 70005580) 5 70005580 1 Head (1001094789 Cylinder) 8 0961951 4 Bearing 9 7026087 1 Seal 10 7026087 1 O-Ring 12 7026087 1 O-Ring 13 7026087 1 Ring, Back-up 14 7026087 1 Seal 15 7026087 1 Wiper 17 Ref Cartridge, Valve Options: 17 7011378 1 Cartridge (Belgium Built Machines) (Prior to SN 1300004150) 17 70001086 1 Cartridge (Belgium Built Machines) (SN 1300004150 to

Present)

17 70001086 1 Cartridge (Romanian Built Machines) (SN E300000100

through E300001114)

17 2900770 1 Seal Kit - 7011378 & 70001086 Valves 18 7011377 1 Cartridge, Valve 18 7011358 1 Seal Kit - 7011377 Valve 20 7026087 1 O-Ring 21 70002216 1 Ring, Retaining 22 7026087 1 O-Ring 29 70002217 1 Ring, Retaining 35 7026087 1 Seal Kit - Cylinder (Includes Items 9, 10, 12-15, 20, & 22) (Wear Rings (Not Shown) in Head p/n 70005580 are also included kit)
