FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300003223 FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES)

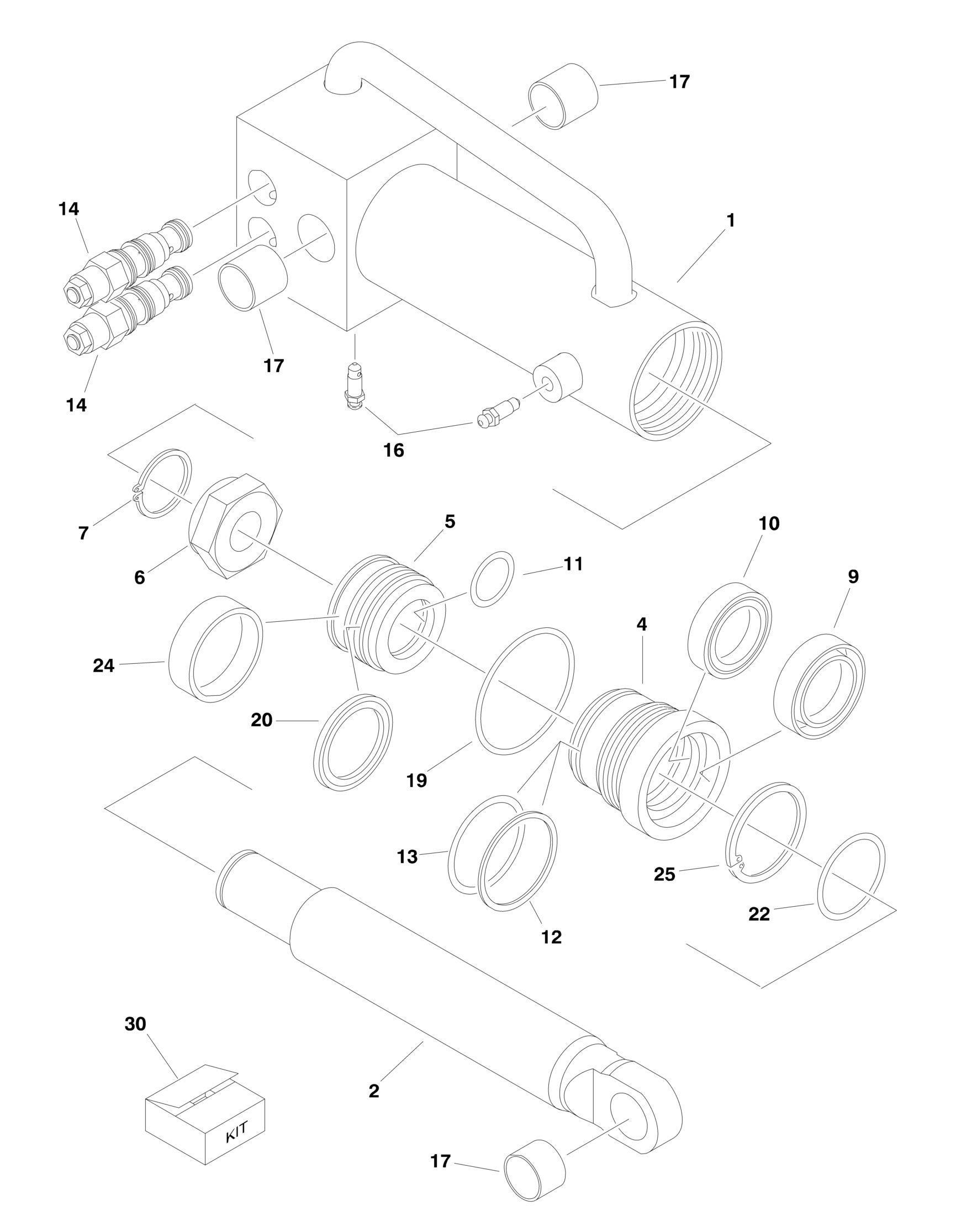

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300003223)

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300003223)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. 1684243 Ref AXLE LOCKOUT CYLINDER ASSEMBLY 1 7026114 1 Barrel 2 7026115 1 Rod 4 7026104 1 Head 5 7026110 1 Piston 6 7026111 1 Locknut 7 70002216 1 Ring, Retaining 9 7026116 1 Wiper 10 7026116 1 Seal 11 7026116 1 O-Ring 12 7026116 1 Ring, Back-up 13 7026116 1 O-Ring 14 4641162 2 Cartridge, Valve 14 2900770 2 Seal Kit - 4641162 Valve (1 Per Assembly) 16 4640858 2 Bleeder 17 0962466 3 Bearing 19 7026116 1 O-Ring 20 7026116 1 Seal 21 7026116 1 O-Ring (Not Shown) 22 7026116 1 O-Ring 24 7026116 1 Ring, Wear 25 70002219 1 Ring, Retaining 30 7026116 1 Seal Kit, Cylinder (Includes Items 9-13, 19-22 & 24)

REV

E
