SN 1300003223 to Present, SN E300000100 through E300001114

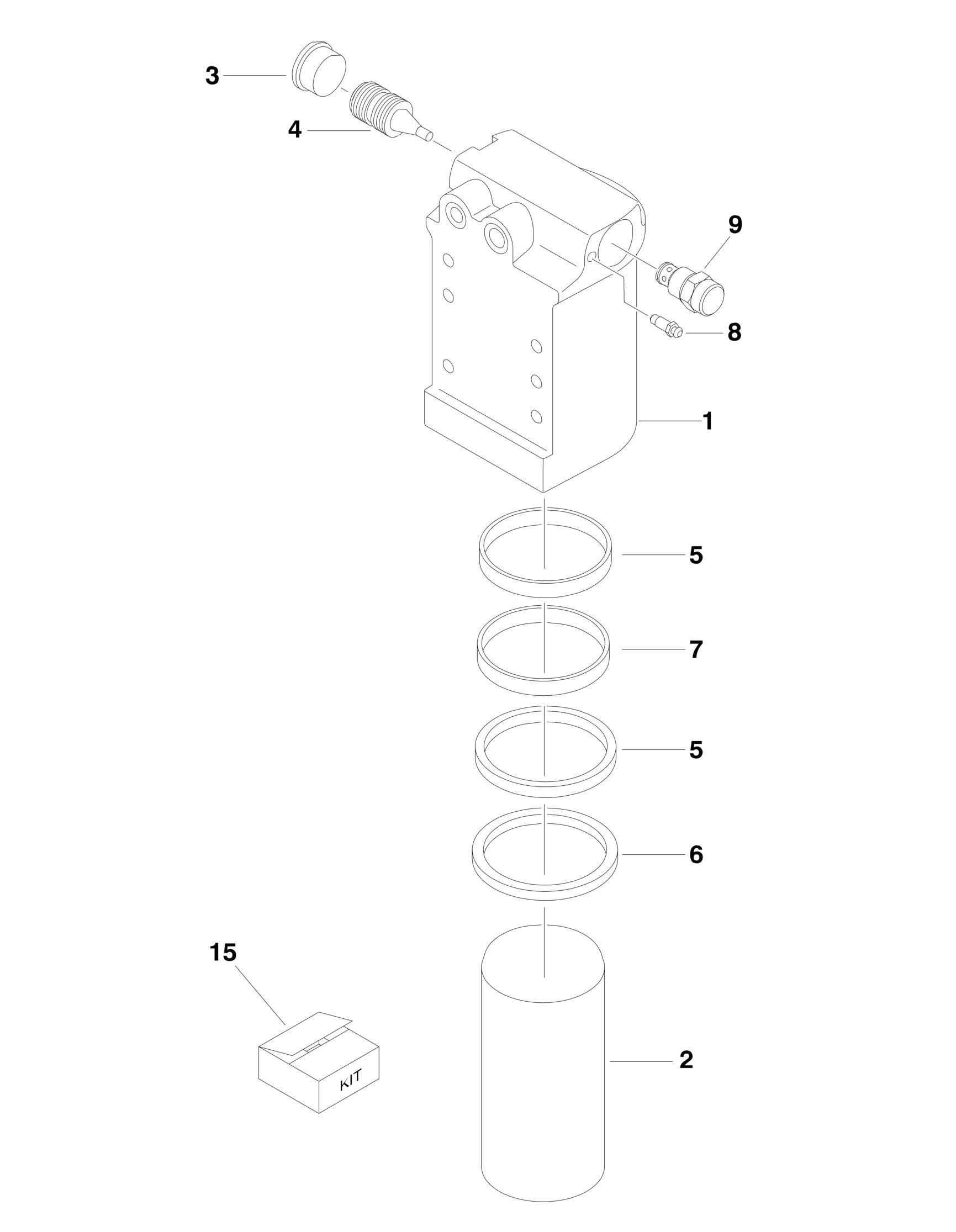

FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003223 to Present, SN E300000100 through E300001114)

FIGURE 5-2. AXLE LOCKOUT CYLINDER ASSEMBLY (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300003223 to Present, SN E300000100 through E300001114)

ITEM PART NUMBER QTY

DESCRIPTION

Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines uses SNs E3xxxxxxxx. 1684465 Ref AXLE LOCKOUT CYLINDER ASSEMBLY 1 0370026 1 Barrel 2 1684290 1 Rod 3 2220890 1 Plug 4 3480288 1 Piston, Pilot 5 2902266 2 Ring, Wear 6 2902266 1 Wiper 7 2902266 1 Seal, Rod 8 4640858 1 Bleeder 9 4641390 1 Cartridge, Valve 9 7017496 1 Seal Kit 15 2902266 1 Seal Kit, Cylinder (Includes Items 4-6)

REV

F
