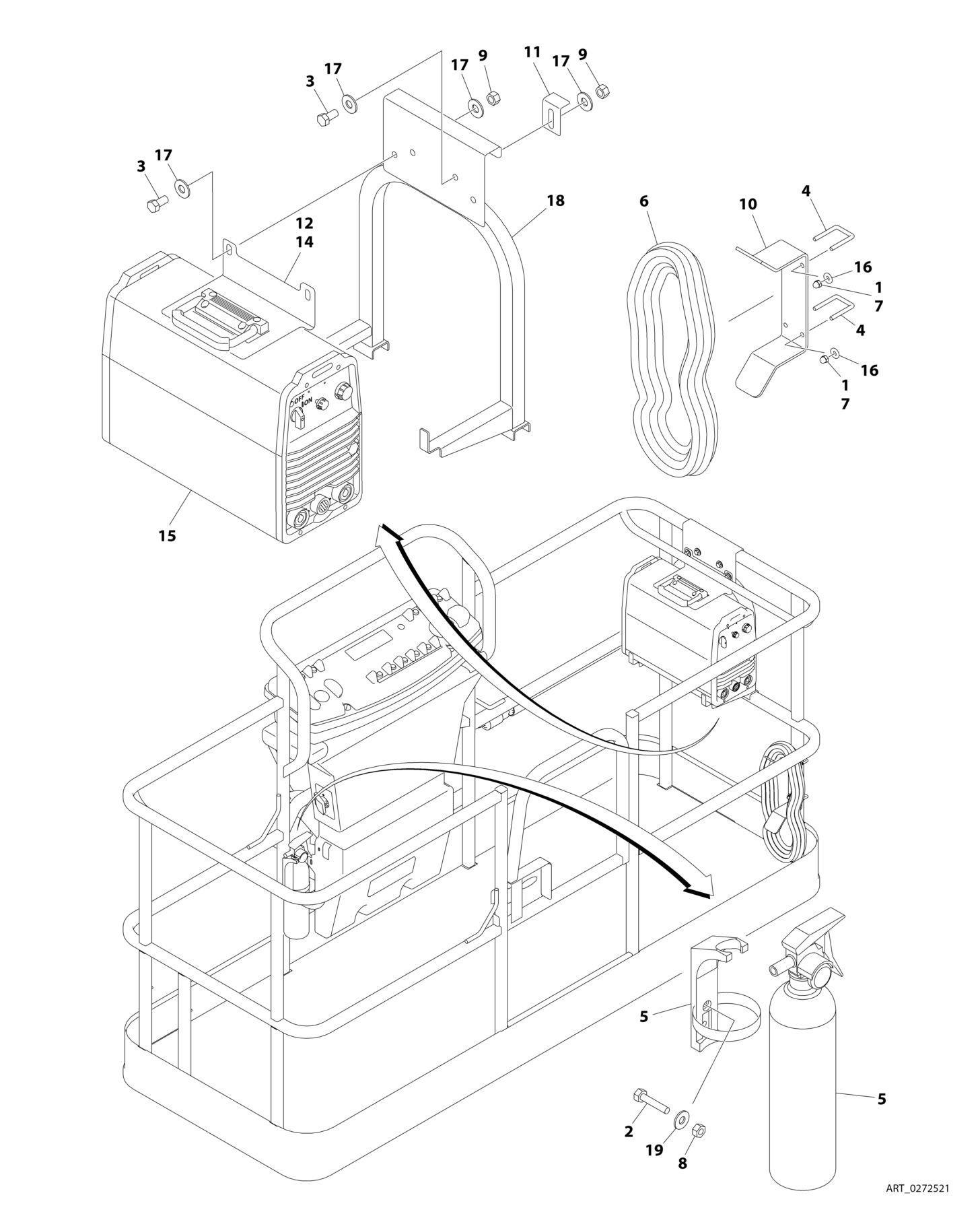

FIGURE 4-8. SKYWELDER INSTALLATION - 50HZ (Prior to SN 1300001851
ITEM PART NUMBER QTY
DESCRIPTION
0272521 Ref SKYWELDER INSTALLATION 1 0100011 AR Compound, Locking 2 0630518 2 Screw #10 x 3/4 3 0641606 4 Bolt 3/8 x 3/4 4 1320302 2 U-Clamp 5 2030010 1 Extinguisher, Fire 6 2902217 1 Weld Leads Kit 7 3300151 4 Nut 1/4 8 3311005 2 Nut #10 9 3311605 4 Nut 3/8 10 3573400 1 Bracket 11 3577121 2 Angle 12 3573642 1 Plate 13 4240099 AR Tie-Strap (Not Shown) 14 4420037 AR Tape 15 4530028 1 Welder Assembly (See Separate Breakdown in this Section) 16 4751400 4 Washer 1/4 17 4751600 8 Washer 3/8 18 4846627 1 Support 19 4751000 2 Washer #10
