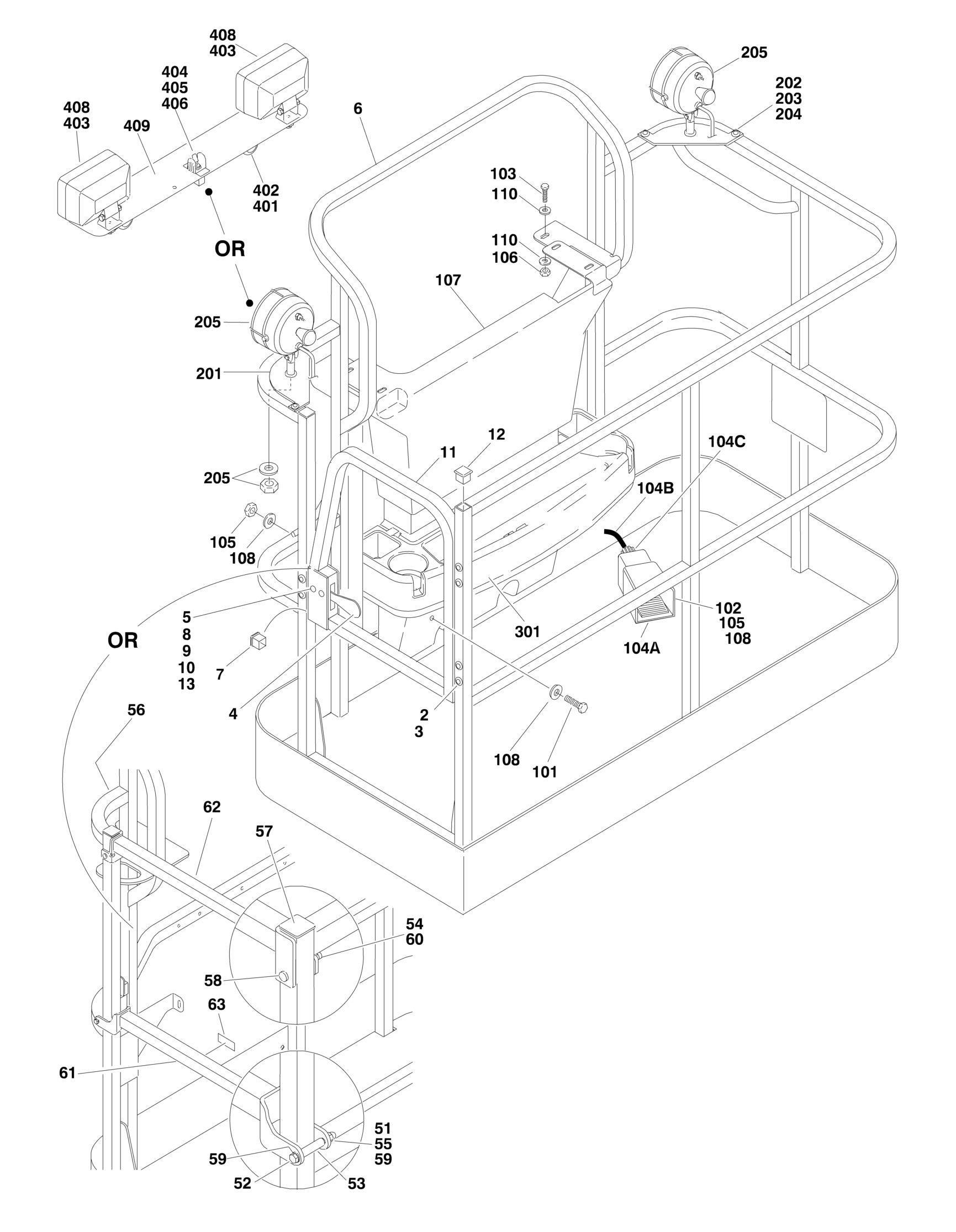

FIGURE 4-1. PLATFORM INSTALLATION

FIGURE 4-1. PLATFORM INSTALLATION

FIGURE 4-1. PLATFORM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

Ref PLATFORM ASSEMBLY WITH GATE Ref Original Equipment Platforms 3510832 Ref 6ft (1.83m) with No Mesh (Use p/n 1001144025) 3510831 Ref 5ft (1.52m) with No Mesh (Use p/n 1001144026) 3510830 Ref 4ft (1.22m) with No Mesh (Use p/n 1001144027) Ref Service Replacement Platforms 1001144025 Ref 6ft (1.83m) with No Mesh 1001144026 Ref 5ft (1.52m) with No Mesh 1001144027 Ref 4ft (1.22m) with No Mesh Ref Note: Original Equipment platform may have been replaced

with Service Replacement platform. Identify platform before ordering parts.

Ref Note: Platform and Mesh must be ordered separately for

Platforms with Mesh. See SPECIAL OPTIONS SECTION for Mesh Installations.

Ref Note: Replacement Decals Must be Ordered Separately - See

DECAL SECTION.

2 2080040 16 Fastener, Huck 3 2600281 2 Hinge, Self-Closing 4 2940074 1 Latch 5 3311001 4 Nut #10-24NC (Belgium Built Machines) (Prior to SN

1300000311)

6 See Note 1 Platform Weldment(Note: Not Available - Purchase Complete Assembly) 7 3520072 1 Cap-Plug 8 Ref Hardware Options: 8 3900205 4 Screw #10-24NC 8 3820020 4 Rivet, Pop 9 4751000 8 Flatwasher #10 Regular (Belgium Built Machines) (Prior to SN

1300000311)

10 4761000 AR Lockwasher #10 (Belgium Built Machines) (Prior to SN

1300000311)

11 Ref Gate Weldment Options: 11 4846452 1 Gate for Original Equipment Platform p/n 3510830, 3510831, 3510832 11 1001144629 1 Gate for Service Replacement Platform p/ns 1001144025, 1001144026, 1001144027 12 3520198 2 Plug, Square Tube 13 0100011 AR Compound, Locking (Belgium Built Machines) (Prior to SN

1300000311)

Ref PLATFORM ASSEMBLY WITH DROP-BAR Ref Original Equipment Platforms 1001138433 Ref 6ft (1.83m) with No Mesh (Use p/n 1001144020) 1001138432 Ref 5ft (1.52m) with No Mesh (Use p/n 1001144019) 1001138431 Ref 4ft (1.22m) with No Mesh (Use p/n 1001144018) Ref Service Replacement Platforms 1001144020 Ref 6ft (1.83m) with No Mesh 1001144019 Ref 5ft (1.52m) with No Mesh 1001144018 Ref 4ft (1.22m) with No Mesh Ref Note: Platform and Mesh must be ordered separately for

Platforms with Mesh. See SPECIAL OPTIONS SECTION for Mesh Installations.

Ref Note: Replacement Decals Must be Ordered Separately - See

REV

L L M

B B B

B B B

B B B

ITEM PART NUMBER QTY DESCRIPTION

DECAL SECTION.

51 0100011 AR Compound, Locking 52 0641418 2 Bolt 1/4in-20NC x 2-1/4in 53 0961845 2 Bushing 54 3290606 2 Nut M6 55 3300151 2 Nut, Acorn 56 See Note 1 Platform Weldment (Note: Purchase Platform Assembly) 57 3520198 2 Cap-Plug 58 4010618 2 Screw M6 x 50mm 59 4711400 4 Flatwasher 1/4in Thin 60 4811700 2 Flatwasher M6 61 1001138494 1 Bar, Drop 62 1001138514 1 Rail (Top) 63 1001140429 1 Decal - Drop-Bar Ref CONSOLE BOX AND FOOTSWITCH INSTALLATION Ref Note: For Module (with/without UGM) Identification, refer to

Revision Log page A.

Ref Note: All Romanian Built Machines are built with UGM. Ref Without UGM 0271931 Ref Deutz Engines Belgium Built Machines (Prior to SN

1300006701)

1001108829 Ref Deutz Engines Belgium Built Machines (SN 1300006701 to

Present)

1001106932 Ref Caterpillar/Perkins Engines Ref With UGM 1001108902 Ref Caterpillar/Deutz/Perkins Engines 101 0641406 2 Bolt 1/4in-20NC x 3/4in 102 0641408 3 Bolt 1/4in-20NC x 1in 103 0641610 4 Bolt 3/8in-16NC x 1-1/4in 104 Ref Platform Console Box Assembly Options (Not Shown) (See PLATFORM CONSOLE ASSEMBLY for Breakdown): 104 Ref WITHOUT UGM 104 0861512 1 Deutz Engines Belgium Built Machines (Prior to SN

1300006701)

104 1001108828 1 Deutz Engines Belgium Built Machines (SN 1300006701 to

Present)

104 1001106931 1 Caterpillar/Perkins Engines 104 Ref WITH UGM 104 1001108901 1 Caterpillar/Deutz/Perkins Engines 104A 0272970 1 Footswitch Assembly (Includes p/n 1001117320 Footswitch and Items 104B-104E) Ref Note: Assembly p/n 0272970 may use either p/n 4360031 or

p/n 1001117320. If Original Equipment was replaced as an "assembly," p/n 1001117320 may have been used as part of the Service Replacement. Identify component before ordering parts.

104A Ref Footswitch Options: 104A 4360031 1 Belgium Built Machines (Prior to SN 1300006895) 104A 7000625 2 Block, Contact for 4360031 Footswitch

104A 1001117320 1 104A 1001117320 1

Belgium Built Machines (SN 1300006895 to Present) Romanian Built Machines (SN E300000100 through

E300001114)

104A 70003483 2 Block, Contact for 1001117320 Footswitch 104B 1060918 7 ft/2.14m Cable, Electrical - 18/3

REV

C

B

B

B

B

ITEM PART NUMBER QTY DESCRIPTION REV

104C 4460071 1 Connector, Strain Relief

104D 4460464 1

Pin, Male (Not Shown) 104E 4460226 2 Socket, Female (Not Shown) 105 3311405 5 Locknut 1/4in-20NC 106 3311605 4 Locknut 3/8in-16NC 107 3380434 1 Panel, Decal Mount 108 4740362 7 Washer, Fender 1/4in 109 4751400 4 Flatwasher 1/4in Regular 110 4751600 8 Flatwasher 3/8in Regular Ref WORKLIGHTS INSTALLATIONS (optional) 0270814 Ref Belgium Built Machines (Prior to SN 1300000138)

3/E 0273495 Ref Belgium Built Machines (SN 1300000138 through 1300001679) E 0274862 Ref Belgium Built Machines (SN 1300001680 to Present) B 0274862 Ref Romanian Built Machines (SN E300000100 through

E300001114)

B 201 3536089 2 Plate, Mounting 202 Ref Fastener Options: 202 0641414 4 Bolt 1/4in-20NC x 1-3/4in 202 2080040 4 Fastener, Huck (Not Shown) 203 3311405 4 Locknut 1/4in-20NC (Belgium Built Machines Only) (Prior to SN

1300004011)

204 4711400 8 Flatwasher 1/4in Thin (Belgium Built Machines Only) (Prior to

SN 1300004011)

205 2920140 2 Worklight 205 7016399 2 Bulb, Replacement (1 Per Worklight) 206 4240099 10 Tie-Strap (Not Shown) 207 2820035 9 Loom, Vinyl (Not Shown) 209 Ref Connector, Strain Relief Options (Not Shown - Located at Console Box): 209 4460598 1 Belgium Built Machines (Prior to SN 1300000138) 209 4460426 1 Belgium Built Machines (SN 1300000138 to Present) 209 4460426 1 Romanian Built Machines (SN E300000100 through

E300001114)

Ref TRAY INSTALLATIONS (OPTIONAL) 301 1580012 1 Tray, Storage (Center) 0272921 Ref FLOODLIGHTS INSTALLATION (OPTIONAL) A

401 0641518 2 Bolt 5/16in-18NC x 2-1/4in 402 2560173 2 Handle, Star Knob 403 2920157 2 Floodlight 403 7024452 2 Bulb, Replacement (1 Per Light) 404 3250585 1 Nameplate - Lights On 405 4060802 1 Guard, Switch 406 4360336 1 Switch, Toggle 407 4420037 AR Tape, Insulation (Not Shown) 408 4751800 2 Flatwasher 1/2in Regular 409 4846561 1 Mount, Light 411 0641406 Bolt 1/4in-20NC x 3/4in (Used with #413 - Not Shown) 412 1060663 72 ft/22m Cable, Electrical 12/3 (Not Shown) 413 1320222 1 J-Clip (Not Shown) 414 3311405 1 Locknut 1/4in-20NC (Used with #413 - Not Shown) 415 4711400 2 Flatwasher 1/4in Thin (Used with #413 - Not Shown)
