FIGURE 2-21. HOODS INSTALLATION (BELGIUM BUILT MACHINES) (Prior to SN 1300006659 FIGURE 2-22. HOODS INSTALLATION (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN 1300006659

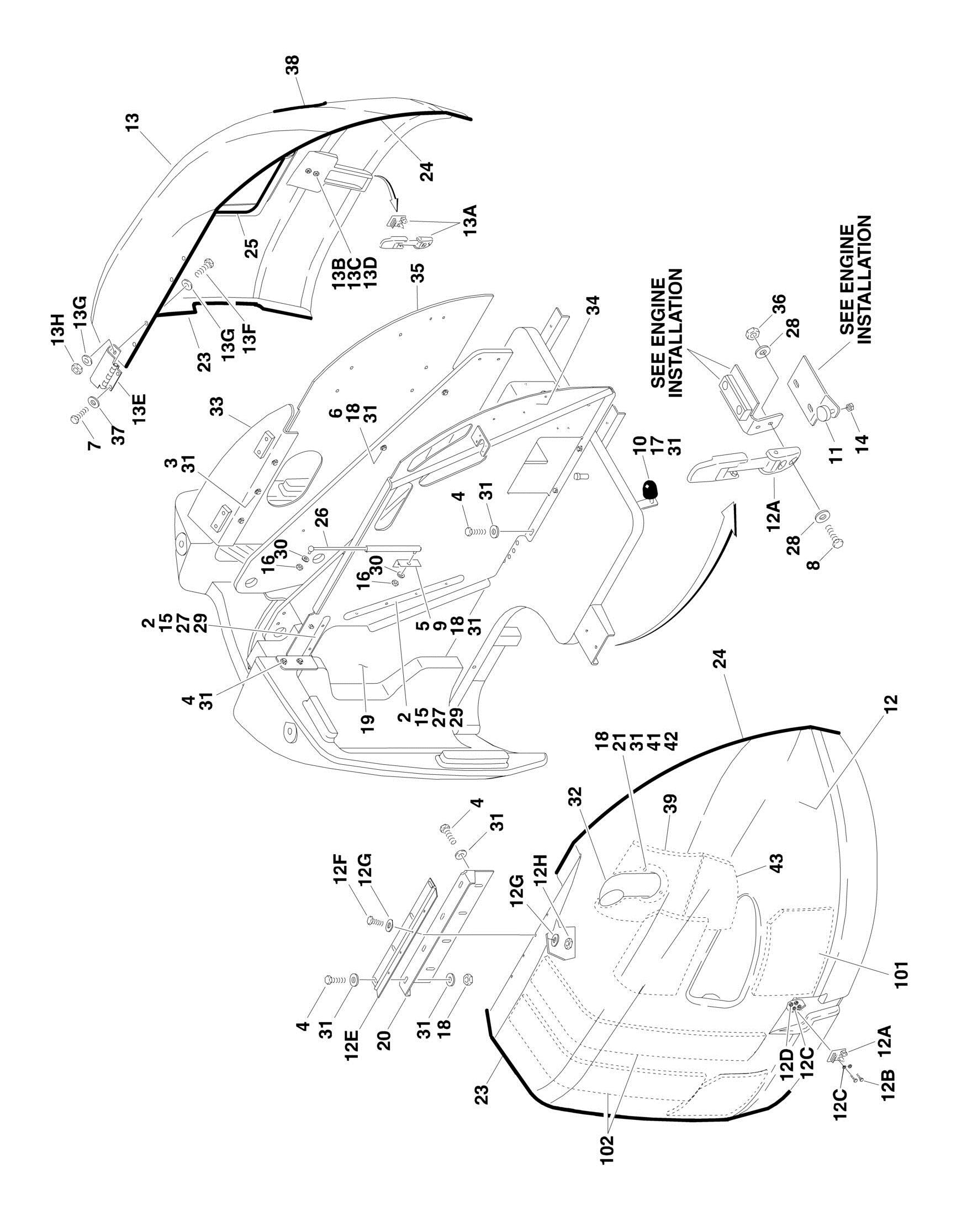

FIGURE 2-21. HOODS INSTALLATION (BELGIUM BUILT MACHINES) (Prior to SN 1300006659)

FIGURE 2-21. HOODS INSTALLATION (BELGIUM BUILT MACHINES) (Prior to SN 1300006659)

ITEM PART NUMBER QTY DESCRIPTION

Ref HOODS INSTALLATION Ref Perkins Engine Machines 0272449 Ref Perkins Engine Machines (Prior to SN 1300003222) 0275867 Ref Perkins Engine Machines (SN 1300003222 through

1300006659)

Ref Deutz Engine Machines 0272449 Ref Deutz Engine Machines (Prior to SN 1300003222) 0275867 Ref Deutz Engine Machines (Use P/N 1001100286) (SN

1300003222 through 1300006659)

1 0100011 AR Compound, Locking 2 0641408 6 Bolt 1/4in-20NC x 1-1/4in 3 0641606 3 Bolt 3/8in-16NC x 3/4in 4 0641608 13 Bolt 3/8in-16NC x 1in 5 0641610 2 Bolt 3/8in-16NC x 1-1/4in 6 0641614 4 Bolt 3/8in-16NC x 1-3/4in 7 0721004 4 Bolt #10-24NC x 1/2in 8 0721006 4 Bolt #10-24NC x 3/4in 9 0902504 1 Angle, Mounting 10 0940071 1 Bumper 11 0940083 2 Bumper 12 Ref Hood Kit (Engine Side) Options: 12 1001101160 1 Perkins Engine Machines (Includes Items 12A-12H, 23, 24, and Current Heat Shields) (Note: Item 32 must be ordered separately) 12 1001091124 1 Deutz Engine Machines (Includes Items 12A-12H, 23, 24, 32 and Current Heat Shields) Ref Note: Replacement Decals Must be Ordered Separately -

See DECAL SECTION.

12A 2940109 1 Latch 12B 0721008 2 Screw, Machine #10-24NC x 1in 12C 4751100 4 Flatwasher #10 Regular 12D 3311005 2 Locknut #10-24NC 12E 2600210 1 Hinge 12F 3900232 4 Screw, Button Head 3/8in-16NC x 1-1/4in 12G 4751600 8 Flatwasher 3/8in Regular 12H 3311605 4 Locknut 3/8in-16NC 13 1001091125 1 Hood Kit (Tank Side) (Includes Items 13A-13H, 23, 24 & 38) 13A 2940109 1 Latch 13B 0721008 2 Screw, Machine #10-24NC x 1in 13C 4750800 4 Flatwasher #8 Regular 13D 3311005 2 Locknut #10-24NC 13E 2600246 2 Hinge 13F 0721006 4 Screw, Machine #10-24NC x 3/4in 13G 4750800 8 Flatwasher #8 Regular 13H 3311005 4 Locknut #10-24NC 14 3311401 2 Nut 1/4in-20NC 15 3311405 6 Locknut 1/4in-20NC 16 3311505 2 Nut 5/16in - 18NC 17 3311601 5 Nut 3/8in-16NC 18 3311605 10 Locknut 3/8in-16NC 19 3380445 1 Panel, Rubber

REV

D D

D A

ITEM PART NUMBER QTY

DESCRIPTION

20 3573024 1 Plate, Hinge Mounting 21 3900232 3 Capscrew, Button Head 3/8in-16NC 1-1/4in 23 3960462 9 ft/2.74m Seal, Hood 24 3960464 9 ft/2.74m Seal, Hood 26 4160170 1 Spring, Gas 27 4740362 6 Washer, Fender 28 4750800 12 Flatwasher #8 Regular 29 4751400 6 Flatwasher 1/4in Regular 30 4751500 2 Flatwasher 5/16in Regular 31 4751600 40 Flatwasher 3/8in Regular 32 4845194 1 Exhaust Tube Weldment 33 4846037 1 Hood Mounting Weldment 34 Ref Hood Mounting Weldment Options: 34 4846670 1 Hood Mounting Weldment (Use p/n 4341388) (Prior to SN

1300003223)

34 4341388 1 Hood Mounting Weldment (SN 1300003223 through

1300006659)

35 4846669 1 Hood Mounting Weldment 36 3311005 4 Locknut #10-24NC 37 4751000 8 Flatwasher #10 Regular 38 4060805 6 ft/1.75m Flex-Trim 40 Ref Insulation, Heat Shield Options: 40 1001098567 1 Caterpillar/Perkins Engine Machines 40 Not Required 0 Deutz Engine Machines 41 4740500 3 Washer, Special (Not Used on Deutz Engine Machines) 42 4061010 1 Shield, Heat (Not Used on Deutz Engine Machines) 43 Ref Insulation, Heat Shield Options: 43 1001098568 1 Perkins Engine Machines 43 Not Required 0 Deutz Engine Machines 0258430 Ref NOISE REDUCTION INSTALLATION (DEUTZ ENGINE

MACHINES ONLY)

101 2820099 3 Insulation, Foam 102 2820100 2 Insulation, Foam

REV

2/B
