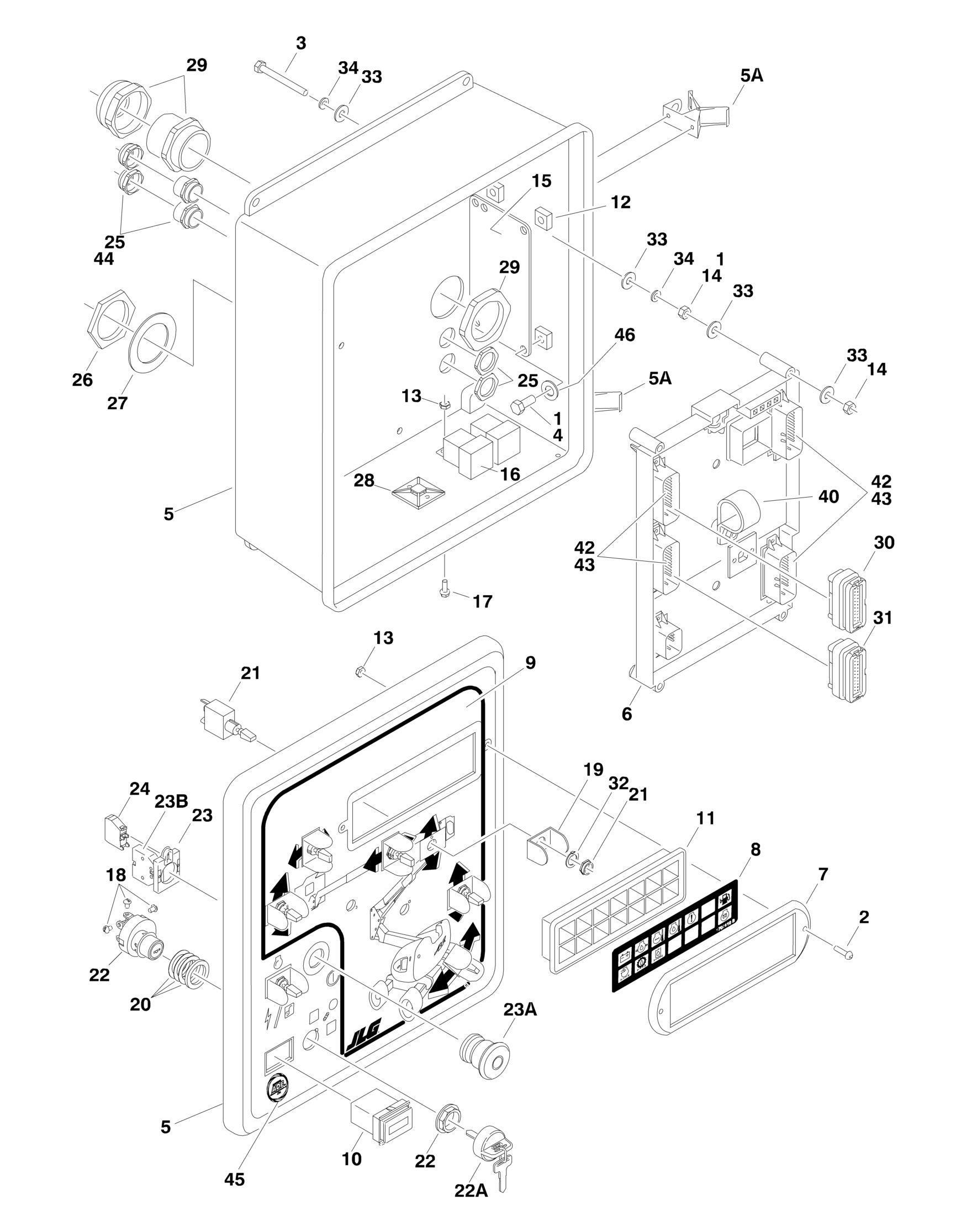

FIGURE 2-18. GROUND CONTROL BOX ASSEMBLY (WITHOUT UGM
ITEM PART NUMBER QTY DESCRIPTION REV
Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SN E3xxxxxxxx. Ref Note: All Romanian Built Machines were built with UGM. This
control box used only on Belgium Built Machines.
Ref Note: For Module (with/without UGM) Identification, refer to
Revision Log page A.
Ref GROUND CONTROL BOX ASSEMBLIES 0861428 Ref Deutz Engine Machines (Prior to SN 1300000981) N 0861743 Ref Deutz Engine Machines (SN 1300000981 through 1300002604) C 1810124 Ref Deutz Engine Machines (SN 1300002605 to Present) E 1001096956 Ref Perkins Engine Machines E 1 0100011 AR Compound, Locking 2 0630518 2 Screw, Button Head 3 0630548 5 Bolt 4 0641508 4 Bolt 5/16in-18NC x 1in 5 0861419 1 Box, Fiberglass 5A 7020246 2 Latch 6 Ref Module, Control Options (Re-calibration Required When Replaced): 6 1600327 1 Module, Control (Use p/n 2915239) (Prior to SN 1300000353) 6 2915014 1 Module, Control (Use p/n 2915239) (Prior to SN 1300000353) Ref Note: 2915239 is an Update Kit Includes Module p/n
1600364, Cables, Programming Instructions and CD Software.
6 1600364 1 Module, Control (Use p/n 2915239) (SN 1300000353 through
1300000980)
6 1600411 1 Module, Control (SN 1300000981 to Present) 7 1670829 1 Bezel 8 Ref Decal - Ground Control Display Options: 8 1702610 1 Decal - Ground Control Display (Prior to SN 1300000011) 8 1705752 1 Decal - Ground Control Display (SN 1300000011 through
1300002313)
8 1705753 1 Decal - Ground Control Display (SN 1300002314 through
1300002604)
8 1706712 1 Decal - Ground Control Display (SN 1300002605 to Present) 9 Ref Decal - Faceplate Options: 9 1703691 1 Decal - Faceplate (Prior to SN 1300002605) 9 1706921 1 Decal - Faceplate (SN 1300002605 through 1300006687) 9 1001102598 1 Decal - Faceplate (SN 1300006688 to Present) 10 2420172 1 Gauge, Hourmeter 11 2760105 1 Housing, Display Light 12 3300205 4 Nut, Retainer 13 3300408 4 Locknut, Plastic Insert 14 3311401 10 Nut 1/4in-20NC 15 3539219 1 Plate, Reinforcement 16 3740049 2 Relay 17 3900268 2 Screw #10-24NC x 1/2in 18 3910804 6 Screw #8-32NC x 1/4in 19 4060906 AR Shield, Toggle Switch 20 4070991 1 Shim (.015in) (Use p/n 4070987) 21 4360328 8 Switch, Toggle
ITEM PART NUMBER QTY DESCRIPTION
22 4360470 1 Switch, Key 22A 2860030 1 Key 23 4360475 1 Switch, Emergency Stop 23A 7020175 1 Cap, Mushroom Head 23B 7020176 1 Block, Contact 24 4360476 1 Switch, Contact Block 25 4460426 AR Connector, Strain Relief 26 4460470 1 Nut, Terminal 27 4460471 1 Locknut, Terminal 28 4460488 11 Base, Terminal Mounting 29 4460526 1 Connector, Strain Relief 30 4460874 1 Connector (Natural) 31 4460875 1 Connector (Gray) 32 4740444 AR Washer, Special 33 4751400 21 Flatwasher 1/4in Regular 34 4761400 10 Lockwasher 1/4in 35 4922666 1 Cable, Analyzer (Not Shown - See ELECTRICAL SECTION for Breakdown) (Prior to SN 1300002605)
36
Ref Ground Control Box Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 36 4922638 1 Ground Control Box Harness Assembly (Prior to SN
1300000981)
36 4923223 1 Ground Control Box Harness Assembly (SN 1300000981
through 1300002604)
36 4923575 1 Ground Control Box Harness Assembly (SN 1300002605 to
Present)
37 Ref Engine Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 37 4922522 1 Deutz Engine Machines (Prior to SN 1300000981) 37 4923265 1 Deutz Engine Machines (SN 1300000981 to Present) 37 4923581 1 Perkins Engine Machines (Prior to SN 1300005190) 37 1001098840 1 Perkins Engine Machines (SN 1300005190 to Present) 38 4922523 1 Valve Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 40 1320060 1 Clamp, Hose 42 0100048 AR Grease, Dielectric 43 4460905 4 Seal, Plug 44 3520035 1 Plug 45 1705132 1 Decal - ADE Control Only (Prior to SN 1300002605) 46 4751500 4 Flatwasher 5/16in Regular Only (Prior to SN 1300002605)
