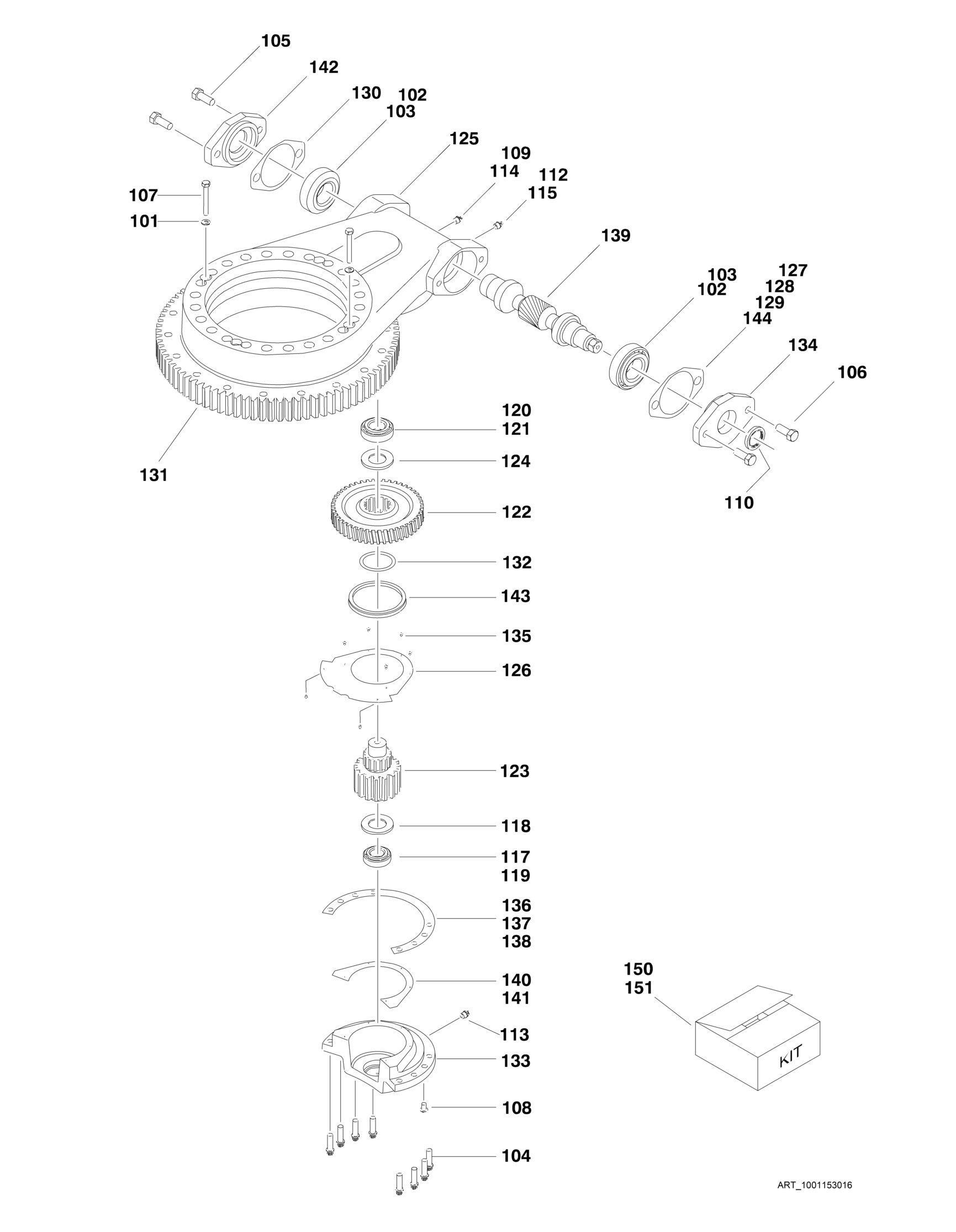

FIGURE 2-7. SWING BEARING AND ROTATION BOX ASSEMBLY (SERVICE REPLACEMENT
ITEM PART NUMBER QTY DESCRIPTION REV
1001153016 Ref SWING BEARING AND ROTATION BOX ASSEMBLY (JING WEI) C 101 4891500 2 Flatwasher 5/16in Hardened 102 7026042 2 Cup, Bearing 103 7026043 2 Cone, Bearing 104 0681610 8 Bolt 3/8 x 1-1/4 Grade 8 105 0641808 2 Bolt 1/2 x 1 106 0641810 2 Bolt 1/2 x 1-1/4 107 0641520 2 Bolt 5/16in-18NC x 2-1/2in 108 See Note 1 Plug 1/8in (Note: Not Available - Purchase Locally) 109 See Note 1 Plug (Note: Not Available - Purchase Locally) 110 7026060 1 Seal, Oil 112 See Note 2 Cap (Note: Not Available - Purchase Complete Assembly) 113 See Note 1 Fitting, Grease (Note: Not Available - Purchase Locally) 114 7026044 1 Bushing, Reducer 115 7027358 1 Fitting, Grease 117 7026045 1 Cup, Bearing 118 7026046 1 Ring, Grease 119 7026047 1 Cone, Bearing 120 7026048 1 Cup, Bearing 121 7026049 1 Cone, Bearing 122 7026050 1 Worm-Gear 123 7026051 1 Pinion, Output 124 7026052 1 Spacer, Washer 125 See Note 1 Housing (Note: Not Available - Purchase Complete Assembly) 126 7026053 1 Cover, Gear 127 7026059 AR Shim, Brown (.010in) 128 7026059 AR Shim, Clear (.0075in) 129 7026059 AR Shim, Blue (.005in) 130 7026059 AR Shim, Yellow (.020in) 131 70004158 1 Bearing, Turntable 132 7026060 1 O-Ring 133 7026055 1 Cap, Gear 134 7027354 1 Cap, Worm 135 70000681 8 Screw #6-32 x 3/8in 136 7026059 AR Shim, Natural (.0075) 137 7026059 AR Shim, Blue (.005) 138 7026059 AR Shim, Green (.003) 139 7026057 1 Gear, Worm 140 7026059 AR Shim, Blue (.005) 141 7026059 AR Shim, Yellow (.020) 142 7027356 1 Adapter, Motor 143 7026060 1 Seal, Face 144 7026059 AR Shim, Green (.003) 150 7026060 1 Seal Kit (Includes Items 110, 132 & 143) 151 7026059 1 Shim Kit (Includes Items 127-130, 136-138, 140-141 & 144)
