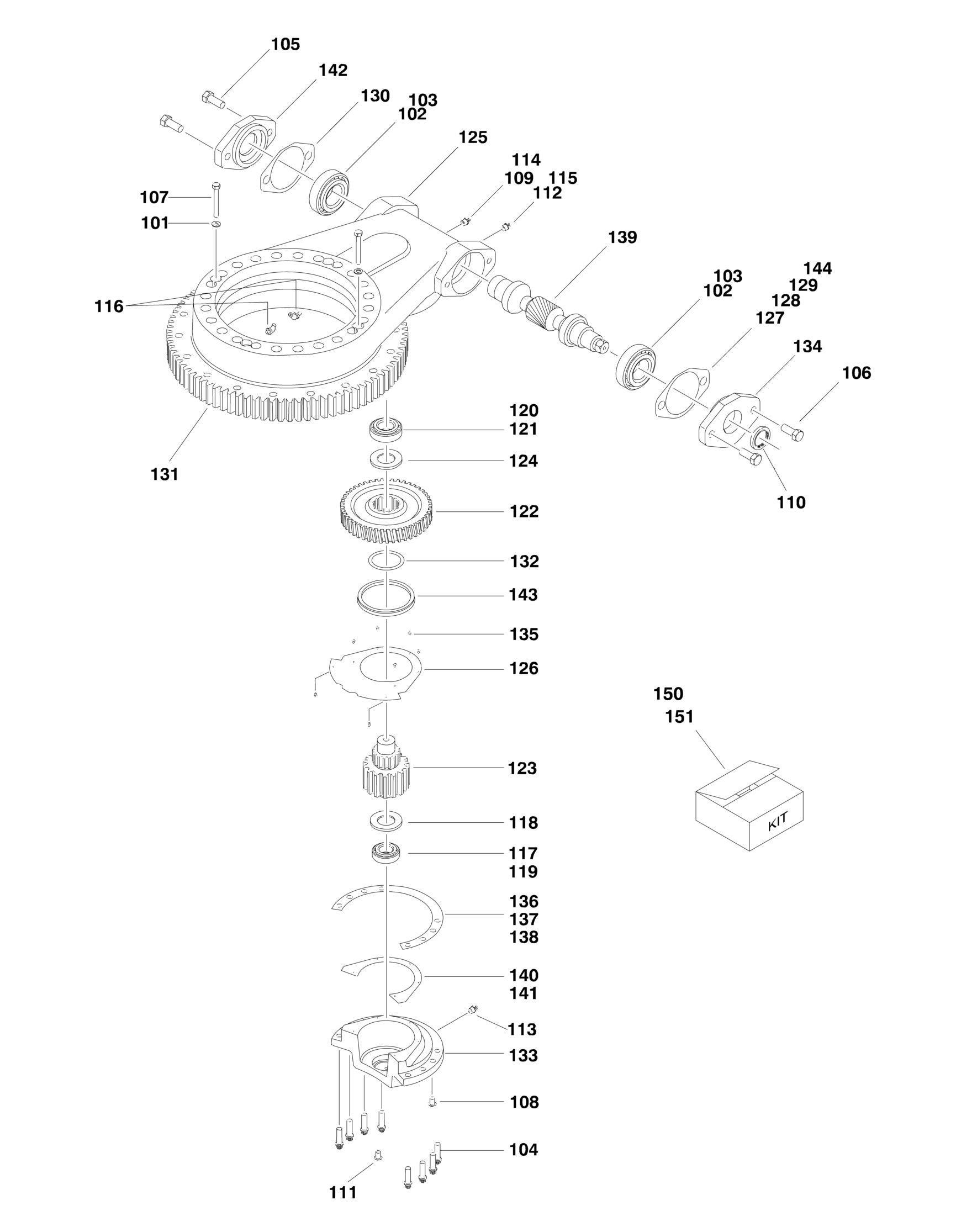

FIGURE 2-6. SWING BEARING AND ROTATION BOX ASSEMBLY (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY DESCRIPTION REV
Ref SWING BEARING AND ROTATION BOX ASSEMBLY 0440255 Ref Belgium Built Machines (SN 1300000001 through 1300000352) B 0440272 Ref Belgium Built Machines (SN 1300000353 to Present) C 0440272 Ref Romanian Built Machines (SN E300000100 through
E300001114)
C 101 4891500 2 Flatwasher 5/16in Hardened 102 7026042 2 Cup, Bearing 103 7026043 2 Cone, Bearing 104 0681610 8 Bolt 3/8in-16NC x 1-1/4in (Grade 8) 105 0641808 2 Bolt 1/2in-13NC x 1in 106 0641810 2 Bolt 1/2in-13NC x 1-1/4in 107 0641520 2 Bolt 5/16in-18NC x 2-1/2in 108 See Note 1 Plug 1/8in (Note: Not Available - Purchase Locally) 109 See Note 1 Plug (Note: Not Available - Purchase Locally) 110 7026060 1 Seal, Oil 111 See Note 1 Plug 1/4in (0440255 Bearing Only) (Note: Not Available Purchase Locally) 112 See Note 2 Cap (Note: Not Available - Purchase Complete Assembly) 113 See Note 1 Fitting, Grease (Note: Not Available - Purchase Locally) 114 7026044 1 Bushing, Reducer 115 7027358 1 Fitting, Grease 116 See Note 2 Fitting, Grease Elbow (0440255 Bearing Only) (Note: Not Available - Purchase Locally) 117 7026045 1 Cup, Bearing 118 7026046 1 Ring, Grease 119 7026047 1 Cone, Bearing 120 7026048 1 Cup, Bearing 121 7026049 1 Cone, Bearing 122 7026050 1 Worm-Gear 123 7026051 1 Pinion, Output 124 7026052 1 Spacer, Washer 125 See Note 1 Housing (Note: Not Available - Purchase Complete Assy) 126 7026053 1 Cover, Gear Options: 127 7026059 AR Shim, Brown (.010) 127 Ref 0440255 Bearing 127 Ref 0440272 Bearing 128 7026059 AR Shim, Clear (.0075) Options: 128 Ref 0440255 Bearing 128 Ref 0440272 Bearing 129 7026059 AR Shim, Blue (.005) Options: 129 Ref 0440255 Bearing 129 Ref 0440272 Bearing 130 7026059 AR Shim, Yellow (.020) Options: 130 Ref 0440255 Bearing 130 Ref 0440272 Bearing 131 Ref Bearing, Turntable Options: 131 7026054 1 0440255 Bearing 131 1001104627 1 0440272 Bearing (Bearing Kit, Turntable p/n 1001104627 includes bearing and hardware to mount bearing/rotation box assembly to machine) (was p/n 70000042) 132 7026060 1 O-Ring
ITEM PART NUMBER QTY DESCRIPTION
133 7026055 1 Cap, Gear 134 Ref Cap, Worm Options: 134 7026056 1 0440255 Bearing 134 7027354 1 0440272 Bearing 135 70000681 8 Screw #6-32NC x 3/8in 136 7026059 AR Shim, Natural (.0075in) Options: 136 Ref 0440255 Bearing 136 Ref 0440272 Bearing 137 7026059 AR Shim, Blue (.005in) Options: 137 Ref 0440255 Bearing 137 Ref 0440272 Bearing 138 7026059 AR Shim, Green (.003in) Options: 138 Ref 0440255 Bearing 138 Ref 0440272 Bearing 139 7026057 1 Worm, Ground 140 7026059 AR Shim, Blue (.005in) Options: 140 Ref 0440255 Bearing 140 Ref 0440272 Bearing 141 7026059 AR Shim, Yellow (.020in) Options: 141 Ref 0440255 Bearing 141 Ref 0440272 Bearing 142 Ref Adapter, Motor Options: 142 7026058 2 0440255 Bearing 142 7027356 AR 0440272 Bearing 143 7026060 1 Seal, Face 144 7026059 AR Shim, Green (.003in) Options: 144 Ref 0440255 Bearing 144 Ref 0440272 Bearing 150 7026060 1 Seal Kit (Includes Items 110, 132 & 143) 151 7026059 1 Shim Kit (Includes Items 127-130, 136-138, 140-141 & 144)
