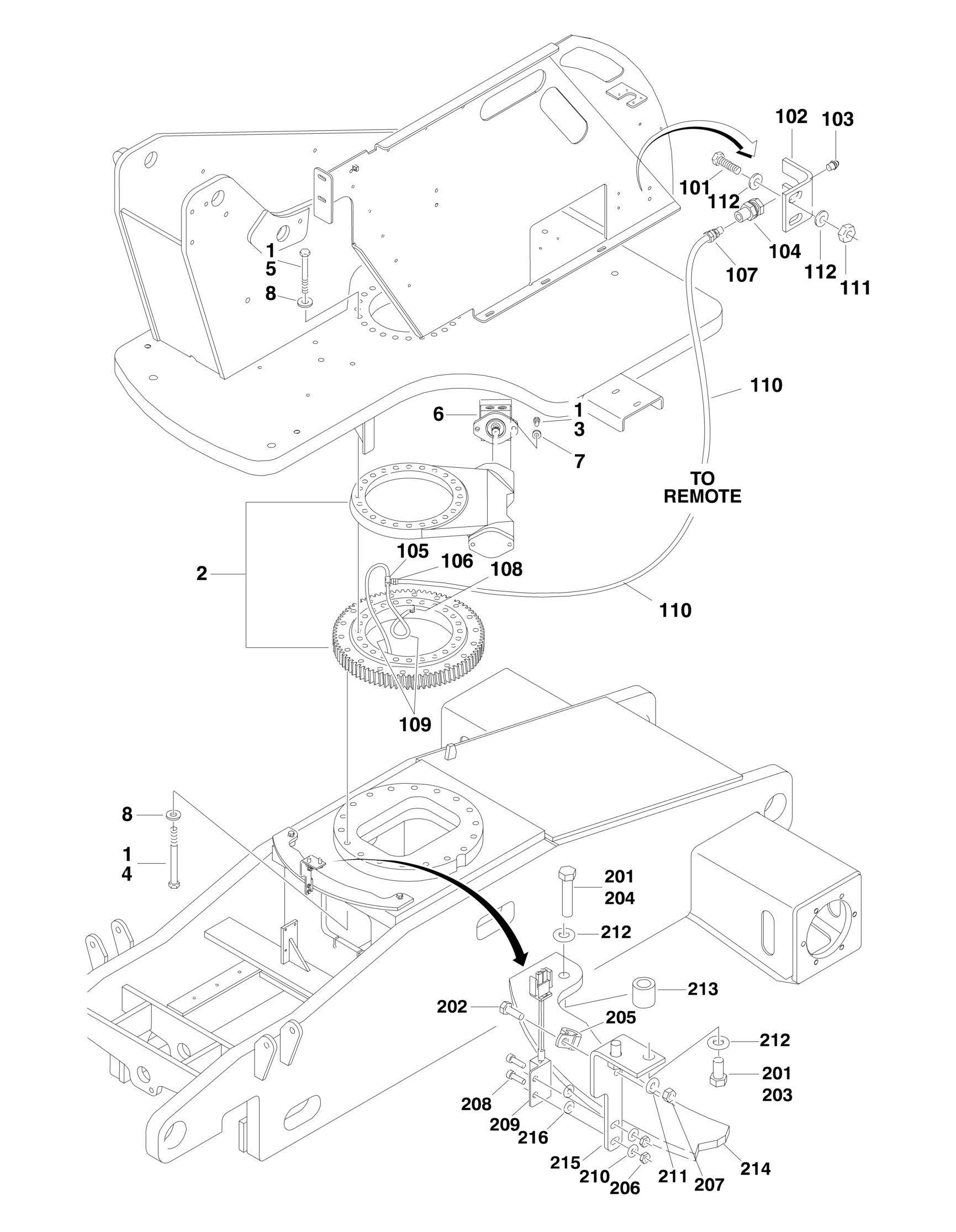

FIGURE 2-3. TURNTABLE AND SWING DRIVE INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref SWING DRIVE INSTALLATION OPTIONS: 0272167 Ref Belgium Built Machines (Prior to SN 1300000353) 0273358 Ref Belgium Built Machines (SN 1300000353 to Present) 0273358 Ref Romanian Built Machines (SN E300000100 through
E300001114)
1 0100019 AR Compound, Locking 2 Ref Swing Bearing and Rotation Box Assembly Options (See SWING BEARING AND ROTATION BOX ASSEMBLY for Breakdown): 2 0440255 NLA Swing Bearing and Rotation Box Assembly (Belgium Built Machines) (Use p/n 1001231278) (Prior to SN 1300000353) 2 0440272 NLA Swing Bearing and Rotation Box Assembly (Belgium Built Machines) (Use p/n 1001231278) (SN 1300000353 to Present) 2 0440272 NLA Swing Bearing and Rotation Box Assembly (Romanian Built Machines) (Use p/n 1001231278) (SN E300000100 through
E300001114)
3 Ref Bolt 1/2in-13NC Options: 3 0641818 2 2-1/4in Length (Belgium Built Machines) (Prior to SN
1300006701)
3 3931832 2 2in Length (Belgium Built Machines) (SN 1300006701 to
Present)
3 3931832 2 2in Length (Romanian Built Machines) (SN E300000100
through E300001114)
4 0682040 18 Bolt 5/8in-11NC x 5in (Grade 8) 5 0682048 24 Bolt 5/8in-11NC x 6in 6 Ref Swing Motor Assembly Options: 6 3160287 1 Motor for Belgium Built Machines (See SWING MOTOR ASSEMBLY for Breakdown - Use p/n 1001105455) (Prior to
SN 1300006701)
6 1001104850 1 Motor for Belgium Built Machines (See SWING MOTOR ASSEMBLY for Breakdown) (SN 1300006701 to Present) 6 1001104850 1 Motor for Romanian Built Machines (See SWING MOTOR ASSEMBLY for Breakdown) (SN E300000100 through
E300001114)
7 Ref Flatwasher 1/2in Hardened Options: 7 4891800 2 Belgium Built Machines (Prior to SN 1300006701) 7 4740171 2 Belgium Built Machines (SN 1300006701 to Present) 7 4740171 2 Romanian Built Machines (SN E300000100 through
E300001114)
8 4892000 42 Flatwasher 5/8in Hardened 9 Ref Grease, Bearing (Not Shown) Options: 9 Not Required 0 Belgium Built Machines (Prior to SN 1300000353) 9 2160001 AR Belgium Built Machines (SN 1300000353 to Present) 9 2160001 AR Romanian Built Machines (SN E300000100 through
E300001114)
0258400 Ref REMOTE BEARING LUBE INSTALLATION 101 0641609 2 Bolt 3/8in-16NC x 1-1/8in 102 0902520 1 Bracket 103 2160002 1 Fitting, Grease 104 2180344 1 Fitting, Bulkhead 105 2180822 1 Fitting, Tee 106 2200261 1 Fitting, Coupling 107 2220001 1 Fitting, Straight 108 2220124 2 Fitting, Elbow
REV
D
D
B
ITEM PART NUMBER QTY DESCRIPTION
109 2750529 2 Hose 110 2750807 1 Hose 111 3311605 2 Locknut 3/8in-16NC 112 4751600 4 Flatwasher 3/8in Regular 1001102695 Ref DRIVE ORIENTATION INSTALLATION (BELGIUM BUILT
MACHINES) (SN 1300006701 to Present)
1001102695 Ref DRIVE ORIENTATION INSTALLATION (ROMANIAN BUILT
MACHINES) (SN E300000100 through E300001114)
201 0100011 AR Compound, Locking 202 0641406 1 Bolt 1/4in-20NC x 3/4in 203 0641606 2 Bolt 3/8in-16NC x 3/4in 204 0641614 2 Bolt 3/8in-16NC x 1-3/4in 205 1320041 1 Clamp 206 3311005 2 Locknut #10 207 3311405 1 Locknut 1/4in 208 3931010 2 Screw #10-24 x 5/8in 209 4360517 1 Switch, Proximity 209 4460320 1 Connector, Male 209 4460227 2 Pin, Male 210 4711000 2 Flatwasher #10 Thin 211 4711400 1 Flatwasher 1/4in Thin 212 4711600 4 Flatwasher 3/8in Thin 213 1001145163 2 Spacer (was p/n 7116691 & 1001114757) 214 1001102526 1 Cam 215 1001102527 1 Bracket, Switch 216 4740120 2 Flatwasher, Special
REV
D
D
ITEM PART NUMBER QTY
DESCRIPTION

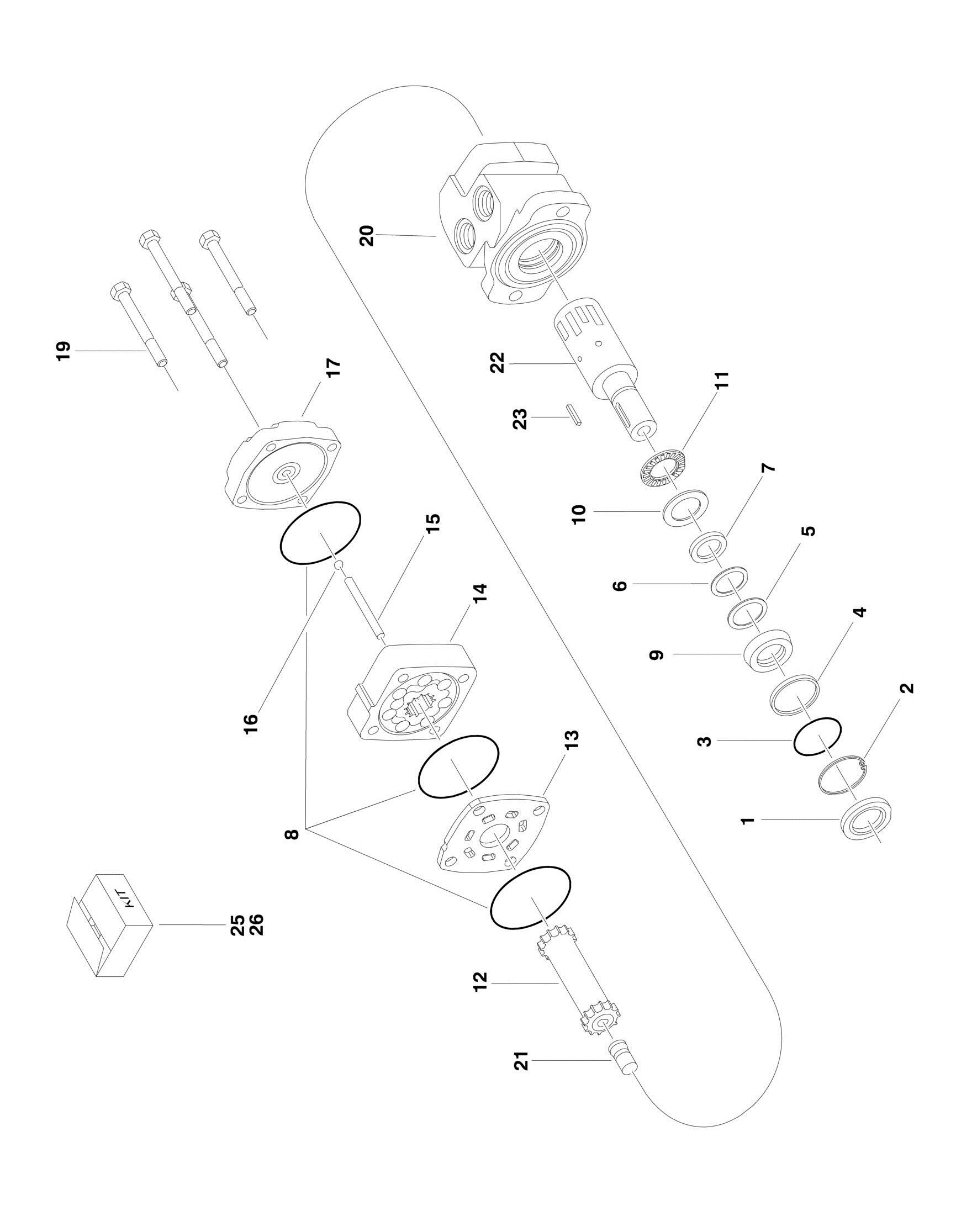

3160287 Ref SWING MOTOR ASSEMBLY Ref Note: Original Equipment motor p/n 3120287 may have been
replaced with Service Replacement motor p/n 1001105455. Visually identify component before ordering parts. Service Replacement motor shown on next illustration
1 2900477 1 Seal, Dust 2 2900477 1 Ring, Retaining 3 2900477 1 Shim, Metal Back-Up 4 2900477 1 Seal, High Pressure 5 2900477 1 Shim, Metal Back-Up 6 2900477 1 Shim, Teflon Back-Up 7 2900477 1 Seal, Shaft 8 2900477 3 Seal, Body 9 2900477 1 Washer, Carrier 10 2900477 1 Thrustwasher 11 See Note 1 Bearing, Thrust (Note: Not Available - Replace Complete Motor) 12 7005889 1 Link, Drive 13 See Note 1 Plate, Wear (Note: Not Available - Replace Complete Motor) 14 7016432 1 Rotor Set Assembly 15 7016433 1 Pin, Drive Link 16 See Note 1 Ball (Note: Not Available - Replace Complete Motor) 17 See Note 1 Cover, End (Note: Not Available - Replace Complete Motor) 18 See Note 1 Nameplate (Note: Not Available for Purchase) 19 7016434 1 Bolt Set (Includes 4 Bolts) 20 7016435 1 Housing 21 7016435 1 Plug, Cooling 22 7005843 1 Shaft 23 7005887 1 Key 25 2900477 1 Seal Kit (Includes Items 1-10) 26 7016435 1 Housing/Shaft Kit (Includes Items 20-23)
REV
B
