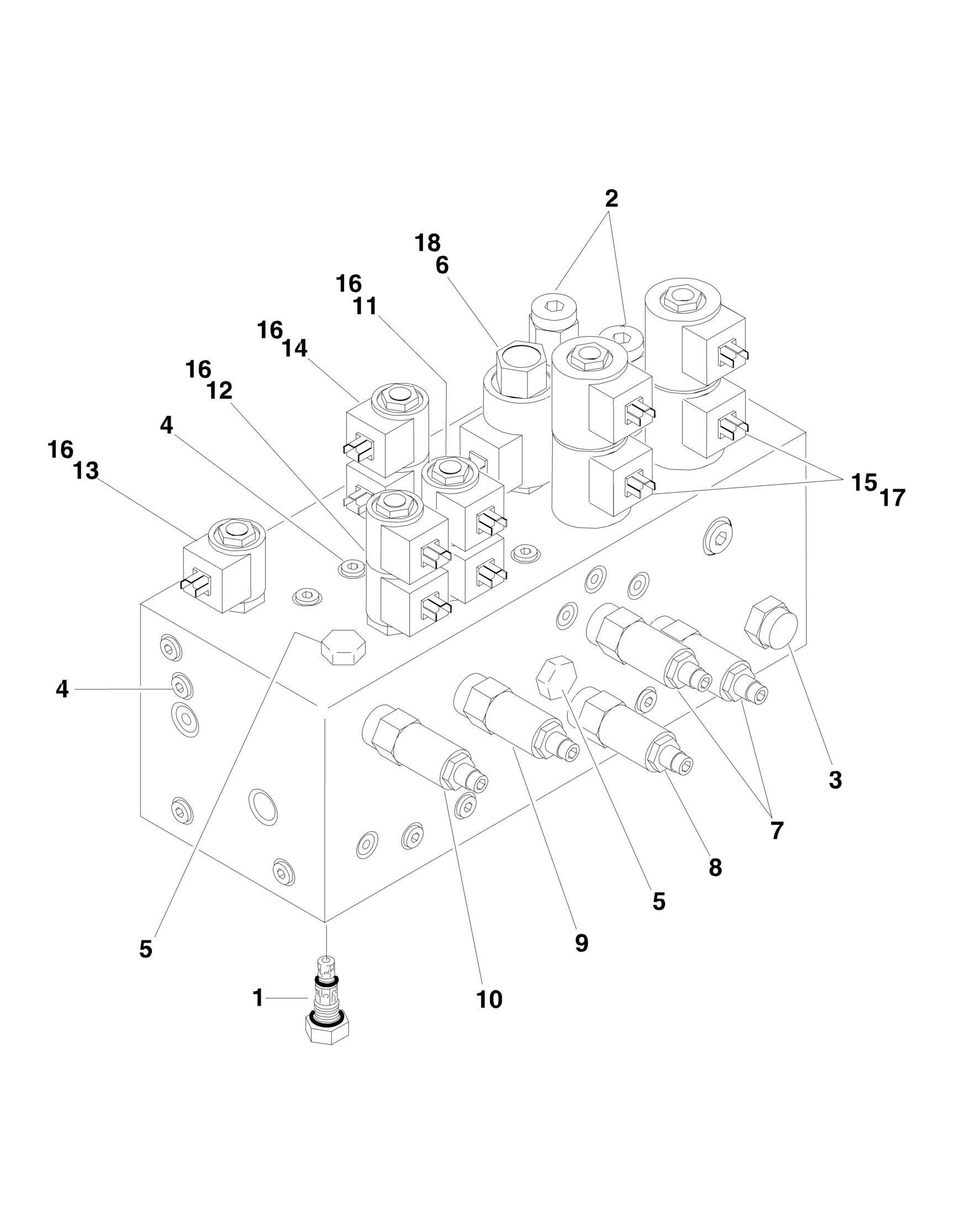

FIGURE 2-2. MAIN CONTROL VALVE ASSEMBLY

FIGURE 2-2. MAIN CONTROL VALVE ASSEMBLY

FIGURE 2-2. MAIN CONTROL VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

4641176 Ref PROPORTIONAL VALVE ASSEMBLY 1 7012975 1 Cartridge, Check 1 7012540 1 Seal Kit - 7012975 Cartridge 2 7017482 2 Cartridge 2 7012518 2 Seal Kit - 7017482 Cartridge 3 7023970 1 Cartridge, Flow Regulator 3 7012953 1 Seal Kit - 7023970 Cartridge 4 7017440 3 Cartridge, Load Shuttle 4 7017441 3 Seal Kit - 7017440 Cartridge 5 7010542 2 Cartridge, Load Shuttle 5 7010543 2 Seal Kit - 7010542 Cartridge 6 7021611 1 Cartridge (Proportional Dump) 6 7012518 1 Seal Kit - 7021611 Cartridge 7 7023913 2 Cartridge, Relief (Telescope and Lower Lift) 7 7012998 2 Seal Kit - 7023913 Cartridge 8 7017422 1 Cartridge, Relief (Steer) 8 7012998 1 Seal Kit - 7017422 Cartridge 9 7017421 1 Cartridge, Relief (Upper Lift) 9 7012998 1 Seal Kit - 7017421 Cartridge 10 7017428 1 Cartridge, Relief (Swing) 10 7012998 1 Seal Kit - 7017428 Cartridge 11 7023922 1 Cartridge without Coil (Upper Lift) 11 7017402 1 Seal Kit - 7023922 Cartridge 12 7023914 1 Cartridge without Coil (Swing) 12 7017402 1 Seal Kit - 7023914 Cartridge 13 7017410 1 Cartridge without Coil (Main Dump) 13 7012967 1 Seal Kit - 7017410 Cartridge 14 7017433 1 Cartridge without Coil (Steer) 14 7017402 1 Seal Kit - 7017433 Cartridge 15 7017454 2 Cartridge without Coil (Lower Lift and Telescope) 15 7012903 2 Seal Kit - 7017454 Cartridge 16 7012944 7 Coil 17 7012943 4 Coil 18 7017451 1 Coil
