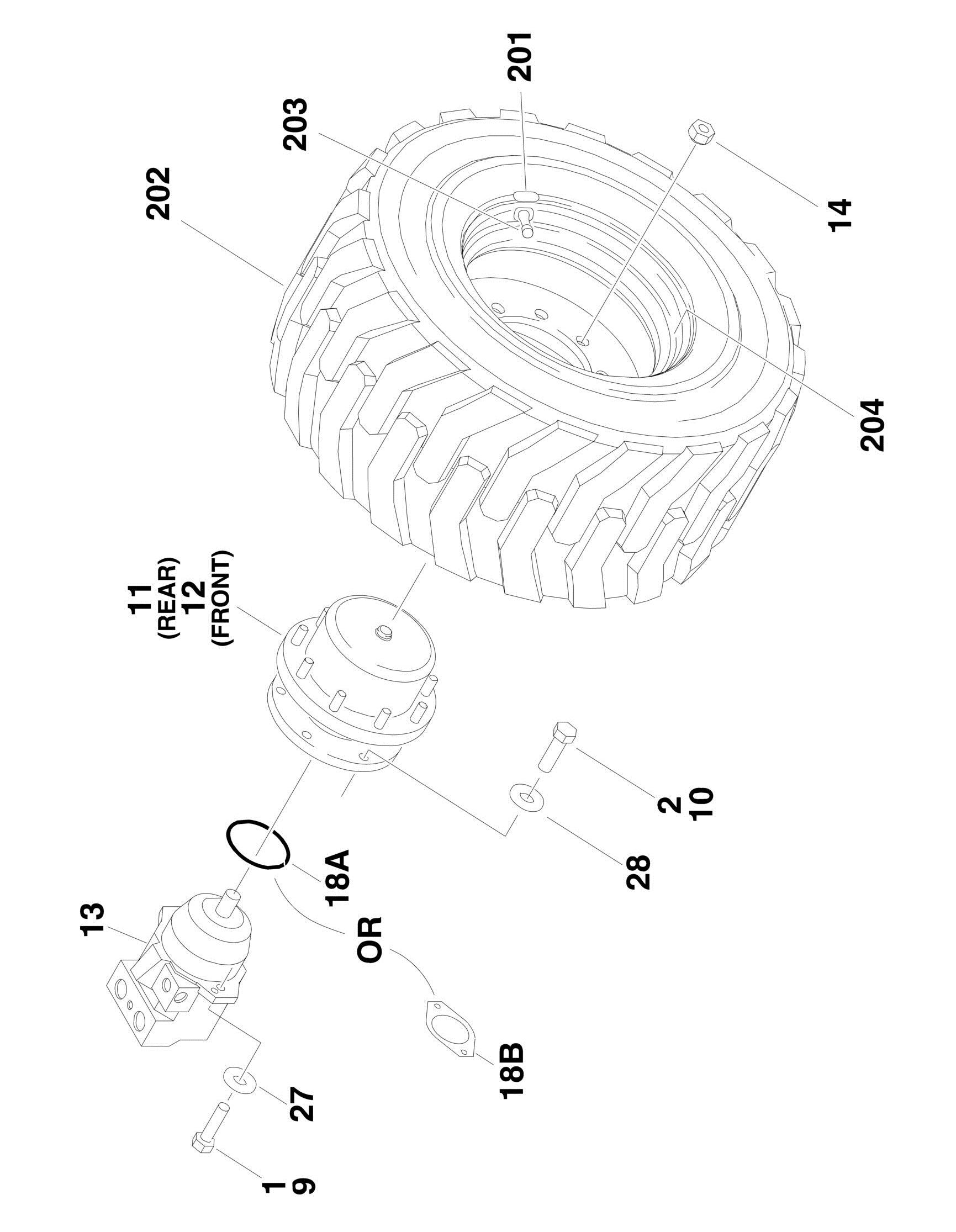

FIGURE 1-2. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-2. TIRE AND WHEEL DRIVE INSTALLATIONS

FIGURE 1-2. TIRE AND WHEEL DRIVE INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

Ref WHEEL DRIVE INSTALLATIONS 0272320 Ref Wheel Drive Installations (Prior to SN 1300000159) 0272895 Ref Wheel Drive Installations (SN 1300000159 through

1300003222)

0275854 Ref Wheel Drive Installations (SN 1300003223 through

E300001114)

1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 9 Ref Hardware Options: 9 0681810 8 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Both Front and Rear Axle) (Belgium Built Machines) (Prior to SN 1300000162) 9 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Front Axle) (Belgium Built Machines) (SN 1300000162 to Present) 9 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Front Axle) (Romanian Built Machines) (SN E300000100 through E300001114) 9 3311801 4 Nut 1/2in-13NC (Not Shown) (Rear Axle) (Belgium Built Machines) (SN 1300000162 to Present) 9 3311801 4 Nut 1/2in-13NC (Not Shown) (Rear Axle) (Romanian Built Machines) (SN E300000100 through E300001114) 10 0682014 24 Bolt 5/8in-11NC x 1-3/4in (Grade 8) 11 Ref Drive Hub/Brake Assembly (Rear) Options: 11 2780256 2 Belgium Built Machines (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) (Prior to SN 1300000159) 11 2780267 2 Belgium Built Machines (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) (SN 1300000159 to Present) 11 2780267 2 Romanian Built Machines (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) (SN E300000100 through

E300001114)

12 Ref Drive Hub Assembly (Front) Options: 12 2780257 2 Belgium Built Machines (See DRIVE HUB ASSEMBLY (FRONT) for Breakdown) (Prior to SN 1300000159) 12 2780268 2 Belgium Built Machines (See DRIVE HUB ASSEMBLY (FRONT) for Breakdown) (SN 1300000159 to Present) 12 2780268 2 Romanian Built Machines (See DRIVE HUB ASSEMBLY (FRONT) for Breakdown) (SN E300000100 through

E300001114)

13 Ref Drive Motor Assembly Options: 13 3160266 4 Belgium Built Machines (Use p/n 3160348 - See DRIVE MOTOR ASSEMBLY for Breakdown) (For 3160348 Motor - See DRIVE MOTOR ASSEMBLY for Breakdown) (Prior to SN

1300002249)

13 3160348 4 Belgium Built Machines (See DRIVE MOTOR ASSEMBLY for Breakdown) (SN 1300002249 to Present) 13 3160348 4 Romanian Built Machines (See DRIVE MOTOR ASSEMBLY for Breakdown) (SN E300000100 through E300001114) 14 3300106 36 Lugnut 18 Ref Seal Options: 18A 3790045 2 O-Ring Belgium Built Machines (Prior to SN 1300002638) 18B 3960526 4 Gasket Belgium Built Machines (SN 1300002638 to Present) 18B 3960526 4 Gasket Romanian Built Machines (SN E300000100 through

E300001114)

27 4891800 8 Flatwasher 1/2in Hardened 28 4892000 24 Flatwasher 5/8in Hardened 31 2300016 AR Fluid, Hydraulic (Not Shown)

REV

C G

C

ITEM PART NUMBER QTY DESCRIPTION REV

32 3020008 AR Lubricant, Mobilube HD 80W - 90 (Not Shown) Ref TIRE AND WHEEL INSTALLATION OPTIONS 0258028 Ref 12 x 16.5 Pneumatic (ANSI/ANSI Export/CSA/Japanese Specs

Only. Not Available on CE/Australian Specs)

A

0258030 Ref 12 x 16.5 Foam-Filled (Available on all Specs)

A 0270674 Ref 12 x 16.5 Foam-Filled, Non-Marking (Available on all Specs) B 0258031 Ref 33/1550 x 16.5 Foam-Filled B 0258831 Ref 33/16LL x 16.1 Pneumatic (ANSI/ANSI Export/CSA/Japanese

Specs Only. Not Available on CE/Australian Specs) (Requires special counterweighting)

A 0257740 2 12 x 16.5 Pneumatic Right Side (Not Available on CE/Australian Specs) C 0257746 2 12 x 16.5 Pneumatic Left Side (Not Available on CE/Australian Specs) C 0258009 2 12 x 16.5 Foam-Filled Right Side C 0258010 2 12 x 16.5 Foam-Filled Left Side C 0270675 2 12 x 16.5 Foam-Filled Non-Marking Right Side A 0270676 2 12 x 16.5 Foam-Filled Non-Marking Left Side A 0258011 2 33/1550 x 16.5 Foam-Filled Right Side D 0258012 2 33/1550 x 16.5 Foam-Filled Left Side D 0258830 4 33/16LL x 16.1 Pneumatic (Not Available on CE/Australian Specs) (Requires special counterweighting) Ref Note: Assemblies may require ballast/foam filling to

manufacture's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.

201 Ref Decal Options (Pneumatic Only): 201 1702740 1 Decal - 90PSI 201 1703067 1 Decal - 40PSI 202 Ref Tire Options: 202 4520216 1 12 x 16.5 NHS (OTR Brand) 202 4520240 1 12 x 16.5 Non-Marking (OTR Brand) 202 4520217 1 33/1550 x 16.5 NHS (OTR Brand) 202 4520212 1 33/16LL x 16.1 (Galaxy Brand) 203 Ref Valve Stem Options:, Air (Pneumatic Only) 203 4640113 1 All except 33/1550 x 16.5 Foam-Filled Tire and Wheel Assy 203 8786514 1 33/1550 x 16.5 Foam-Filled Tire and Wheel Assy Only 204 Ref Rim, Wheel Options: 204 4860178 1 16.5 x 12 (Use with 12 x 16.5 Tires) 204 4860179 1 16.5 x 12 (Use with 33/1550 x 16.5 Tires) 204 4860193 1 16.1 x 14 (Use with 33/16LL x 16.1 Tires)
