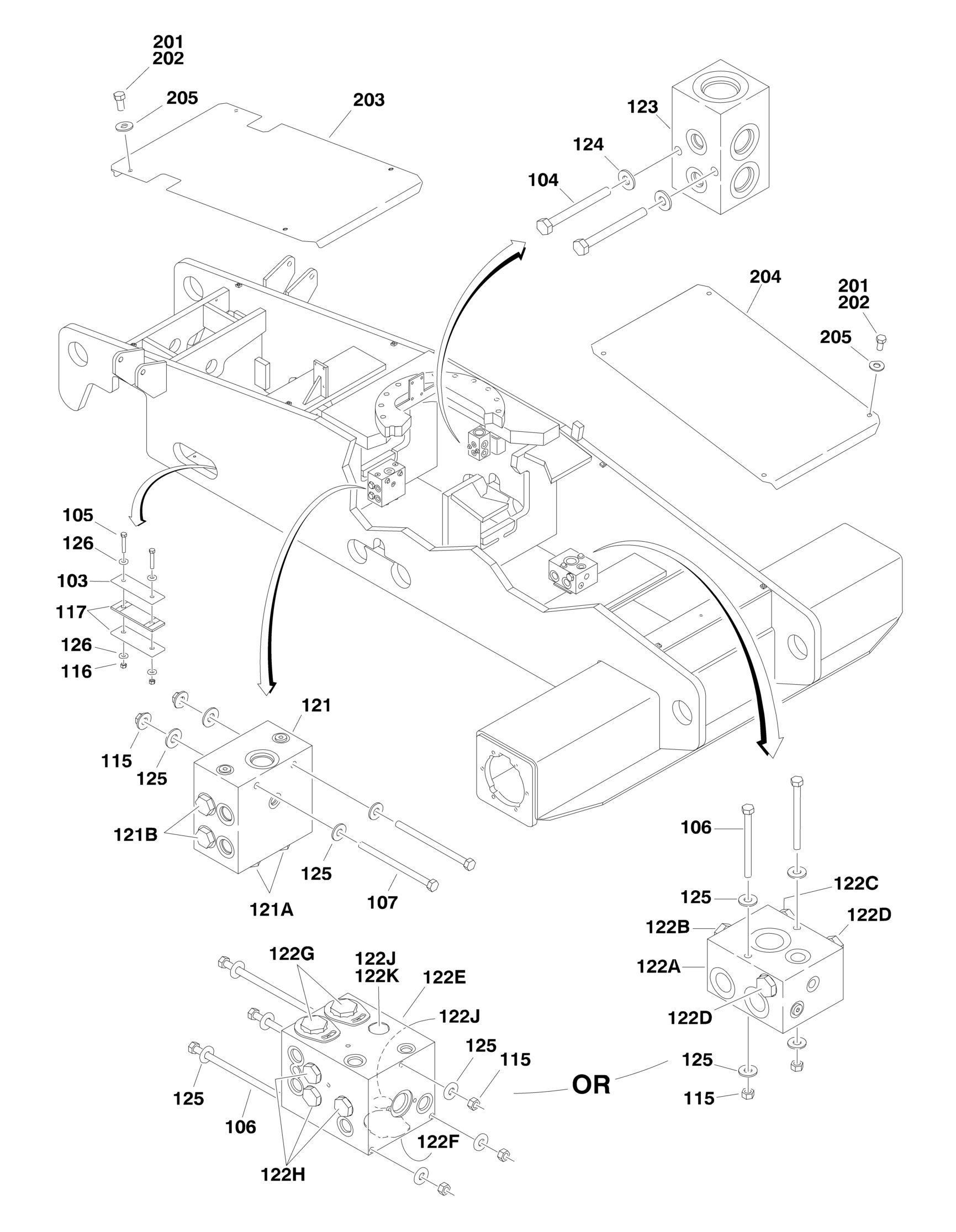

FIGURE 1-9. DRIVE VALVES INSTALLATIONS
FIGURE 1-9. DRIVE VALVES INSTALLATIONS
FIGURE 1-9. DRIVE VALVES INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref DRIVE VALVES INSTALLATION 0272320 Ref Belgium Built Machines (Prior to SN 1300000064)
C 0272895 Ref Belgium Built Machines (SN 1300000064 through 1300003222) G 0275854 Ref Belgium Built Machines (SN 1300003223 to Present) C 0275854 Ref Romanian Built Machines (SN 1300003223 through
E300001114)
C 103 0363012 2 Bar, Clamping 104 0641420 2 Bolt 1/4in-20NC x 2-1/2in 105 0641618 4 Bolt 3/8in-16NC x 2-1/4in 106 0641530 2 Bolt 5/16in-18NC x 3-3/4in (Belgium Built Machines) (Prior to SN
1300003223)
106 0641560 3 Bolt 5/16in-18NC x 7-1/2in (Belgium Built Machines) (SN
1300003223 to Present)
106 0641560 3 Bolt 5/16in-18NC x 7-1/2in (Romanian Built Machines) (SN
E300000100 through E300001114)
107 0641538 2 Bolt 5/16in-18NC x 4-3/4in (Belgium Built Machines Only) (Prior
to SN 1300003223)
115 3311505 AR Locknut 5/16in-18NC 117 3340911 4 Rubber, Clamp 121 4641208 1 Flow Divider Valve Assembly (Belgium Built Machines Only)
(Prior to SN 1300003223)
A 121A 7023934 2 Valve, Cartridge (Flow Divider) (4641208 Valve) 121A 7021655 2 Seal Kit - 7023934 Flow Divider Cartridge 121B 7023935 4 Valve, Cartridge (Check) (4641208 Valve) 121B 7023936 4 Seal Kit - 7023935 Check Cartridge 122 Ref Flow Divider Valve Assembly Options: 122A 4641207 1 Flow Divider Valve Assembly (Belgium Built Machines) (Prior
to SN 1300003223)
A 122B 7023917 1 Valve, Cartridge (Flow Divider) (Used on 4641207 Valve) 122B 7021625 1 Seal Kit - 7021625 Flow Divider Cartridge 122C 7022397 1 Valve, Cartridge (Check) (4641207 Valve) 122C 7022399 1 Seal Kit - 7022397 Check Cartridge 122D 7010542 2 Valve, Cartridge (Load Shuttle) (4641207 Valve) 122D 7010543 2 Seal Kit - 7010542 Load Shuttle Cartridge 122E 4641510 1 Flow Divider Valve Assembly (Belgium Built Machines) (SN
1300003223 to Present)
D 122E 4641510 1 Flow Divider Valve Assembly (Romanian Built Machines) (SN
E300000100 through E300001114)
D 122F 7023917 1 Valve, Cartridge (Flow Divider) (4641510 Valve) 122F 7021625 1 Seal Kit - 7023917 Flow Divider Cartridge 122F 70000781 1 Lock Kit 122G 7023934 2 Valve, Cartridge (Flow Divider) (4641510 Valve) 122G 7021655 2 Seal Kit - 7023934 Flow Divider Cartridge 122G 70002962 2 Lock Kit 122H 7022397 5 Valve, Cartridge (Check) (4641510 Valve) 122H 7022399 5 Seal Kit - 7022397 Check Cartridge 122J 7021639 2 Valve, Cartridge (Check) (4641510 Valve) 122J 7017496 2 Seal Kit - 7021639 Check Cartridge (was p/n 2900756) 122K 7024881 1 Piston, Pilot (4641510 Valve) 123 4641155 1 Valve, Junction Manifold B 124 4711400 2 Flatwasher 1/4in Thin 125 4751500 8 Flatwasher 5/16in Regular
ITEM PART NUMBER QTY DESCRIPTION REV
126 4751600 AR Flatwasher 3/8in Regular Ref FRAME SHIELDS INSTALLATION OPTIONS: 0272600 Ref Belgium Built Machines (Prior to SN 1300000353)
B 0273499 Ref Belgium Built Machines (SN 1300000353 through 1300003222) C 0275858 Ref Belgium Built Machines (SN 1300003223 to Present) A 0275858 Ref Romanian Built Machines (SN E300000100 through
E300001114)
A 201 0100011 AR Compound, Locking 202 0641606 10 Bolt 3/8in-16NC x 3/4in 203 Ref Cover (Front) Options: 203 4061046 1 Belgium Built Machines (Prior to SN 1300000353) 203 3380504 1 Belgium Built Machines (SN 1300000353 through
1300003222)
203 3380764 1 Belgium Built Machines (SN 1300003223 to Present) 203 3380764 1 Romanian Built Machines (SN E300000100 through
E300001114)
204 4061047 1 Shield (Rear) 205 4751600 10 Flatwasher 3/8in Regular
