FIGURE 1-7. DRIVE MOTOR ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300002249 FIGURE 1-8. DRIVE MOTOR ASSEMBLY (BELGIUM BUILT MACHINES AND ROMANIAN BUILT MACHINES) (SN

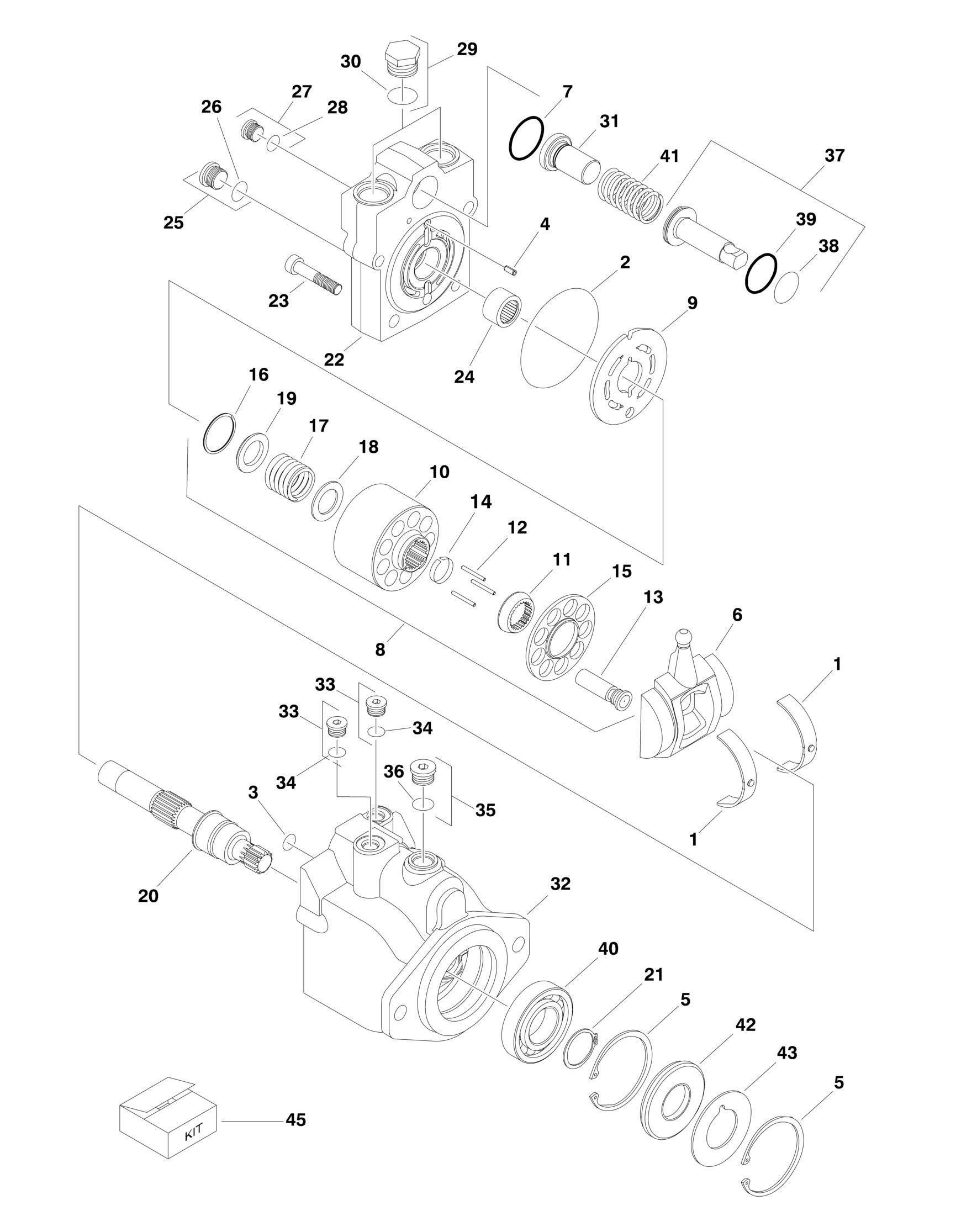

FIGURE 1-7. DRIVE MOTOR ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300002249)

FIGURE 1-7. DRIVE MOTOR ASSEMBLY (BELGIUM BUILT MACHINES) (Prior to SN 1300002249)

ITEM PART NUMBER QTY

DESCRIPTION

3160266 Ref DRIVE MOTOR ASSEMBLY Ref Note: Original Equipment Motor p/n 3160266 uses 4 bolts to

assemble the motor. Service Replacement Motor p/n 3160348 motors use 5 bolts to assemble the motor. Visually identify component before ordering parts. If equipped with 3160348 refer to next illustration.

1 7022302 2 Bearing, Journal 2 7022328 1 O-Ring 3 7022328 1 O-Ring 4 7007446 1 Pin 5 7007438 2 Ring, Retaining 6 7022305 1 Swashplate 7 7022328 1 O-Ring 8 7023907 1 Cylinder Block Kit (Includes Items 10-19) 9 7023908 1 Plate, Valve 10 7023907 1 Block, Cylinder 11 7021277 1 Guide, Slipper Retainer 12 7021275 3 Pin, Slipper Hold Down 13 7023907 9 Piston Assembly 14 7021276 1 Retainer, Hold Down Pin 15 7022310 1 Retainer, Slipper 16 7022311 1 Ring, Retaining 17 7022312 1 Spring 18 7022313 1 Washer 19 7022314 1 Retainer, Spring 20 7023910 1 Shaft 21 7007439 1 Ring, Retaining 22 7022367 1 Cap, End - Axial 23 7022368 4 Screw 24 7021249 1 Bearing, Needle 25 7022321 1 Plug (Includes Item 26) 26 7022328 1 O-Ring 27 7022318 1 Plug (Includes Item 28) 28 7022328 1 O-Ring 29 7007419 2 Plug (Includes Item 30) 30 7022328 2 O-Ring 31 7022372 1 Seat, Spring 32 7022370 1 Housing 33 7022318 2 Plug (Items Item 34) 34 7022328 2 O-Ring 35 7022321 1 Plug (Items Item 36) 36 7022328 1 O-Ring 37 7022323 1 Piston, Servo (Includes Items 38 & 39) 38 7022328 1 O-Ring 39 7022328 1 Ring, Seal 40 7007437 1 Bearing 41 7022326 1 Spring 42 7022328 1 Seal, Lip 43 7022371 1 Washer, Support 45 7022328 1 Seal Kit (Includes Items 2, 3, 7, 26, 28, 30, 34, 36, 38, 39 & 42)

REV

D
