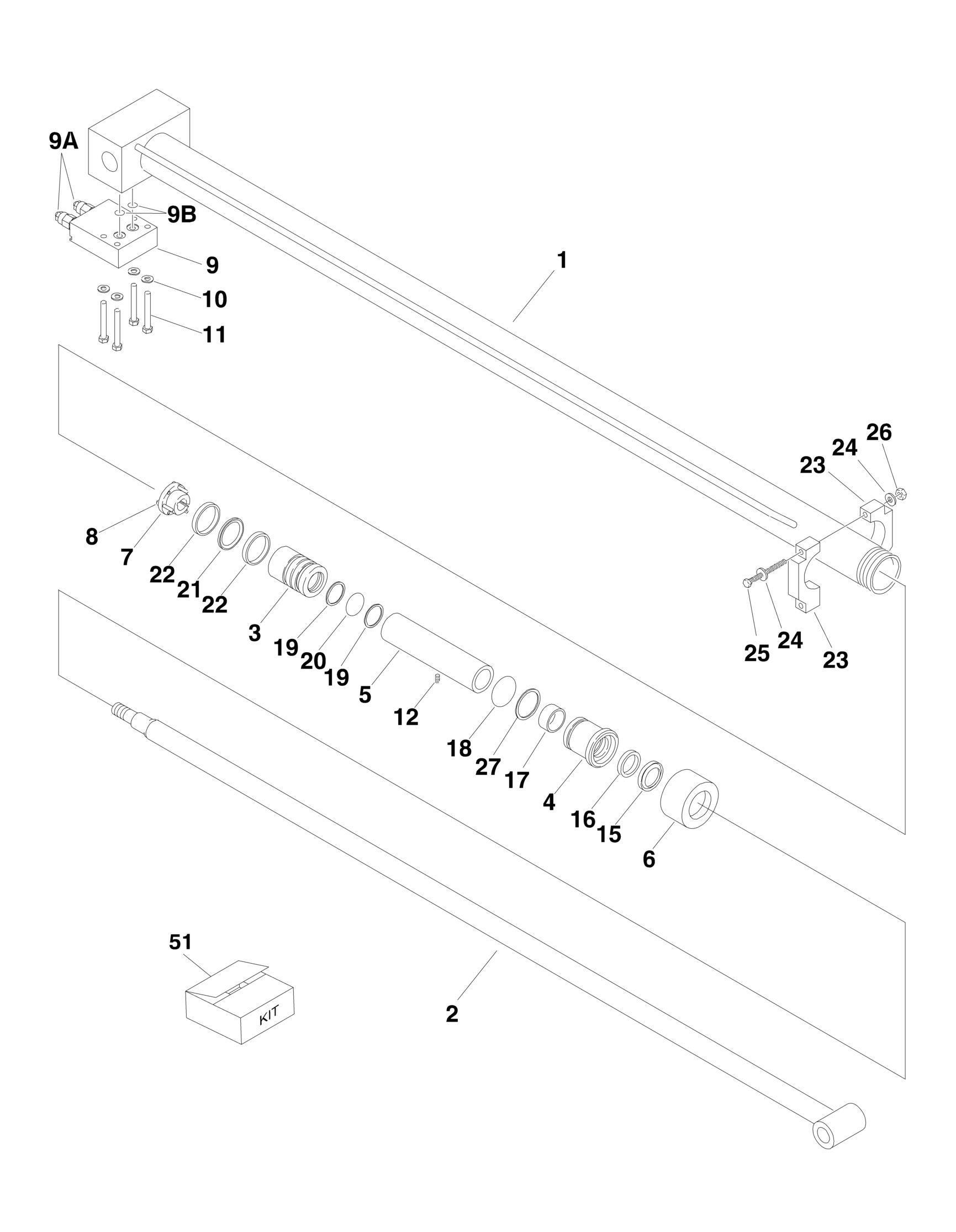

FIGURE 5-10. TELESCOPE CYLINDER ASSEMBLY

FIGURE 5-10. TELESCOPE CYLINDER ASSEMBLY

FIGURE 5-10. TELESCOPE CYLINDER ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

Ref TELESCOPE CYLINDER ASSEMBLY 1683582 Ref Telescope Cylinder Assembly 450A (Prior to SN 0300038481) B 1683716 Ref Telescope Cylinder Assembly 450A (SN 0300038481 through

0300065080)

C 1683653 Ref Telescope Cylinder Assembly 450AJ (Prior to SN 0300038481) B 1683718 Ref Telescope Cylinder Assembly 450AJ (SN 0300038481 through

0300065080)

C

1 Ref Barrel Weldment 1 1683580 1 Barrel Weldment 450A (Prior to SN 0300038481) 1 1683715 1 Barrel Weldment 450A (SN 0300038481 through 0300065080) 1 1683655 1 Barrel Weldment 450AJ (Prior to SN 0300038481) 1 1683717 1 Barrel Weldment 450AJ (SN 0300038481 through

00300065080)

2 Ref Rod Weldment 2 1683581 1 Rod Weldment 450A 2 1683654 1 Rod Weldment 450AJ 3 3480227 1 Piston 4 1683584 1 Head 5 4567331 1 Spacer, Tube 6 1120110 1 Cap, End 7 0962185 1 Bushing, Tapered 8 0630534 3 Bolt, Socket Head #10-24NC x 1in 9 4641055 1 Valve, Counterbalance 9A 7011335 2 Valve, Cartridge 9A 2900770 2 Seal Kit - 7011335 Valve (1 Per Cartridge) 9B 3790110 2 O-Ring 10 4711500 4 Flatwasher 5/16in Narrow 11 0641520 4 Bolt 5/16in-18NC x 2 1/2in 12 3900142 1 Setscrew 3/8in-16NC x1/4in 13 0100011 AR Loctite #242 (Not Shown) 14 0100038 AR Primer, Locking (Not Shown) 15 See Note NSS Wiper (Note: Use Item 51) 16 See Note NSS Seal (Note: Use Item 51) 17 See Note NSS Ring, Wear (Note: Use Item 51) 18 See Note NSS O-Ring (Note: Use Item 51) 19 See Note NSS Ring, Back-Up (Note: Use Item 51) 20 See Note NSS O-Ring (Note: Use Item 51) 21 See Note NSS Seal (Note: Use Item 51) 22 See Note NSS Ring, Wear (Note: Use Item 51) 23 3340847 2 Pad, Support (SN 0300038481 through 0300065080) 24 4751400 4 Flatwasher 1/4in (SN 0300038481 through 0300065080) 25 0641424 2 Bolt 1/4in-20NC x 3in (SN 0300038481 through 0300065080) 26 3311405 2 Locknut 1/4in-20NC (SN 0300038481 through 0300065080) 27 See Note NSS Ring, Back-Up (Note: Use Item 51) 51 2901544 1 Seal Kit (Includes Items 15-22 & 27)
