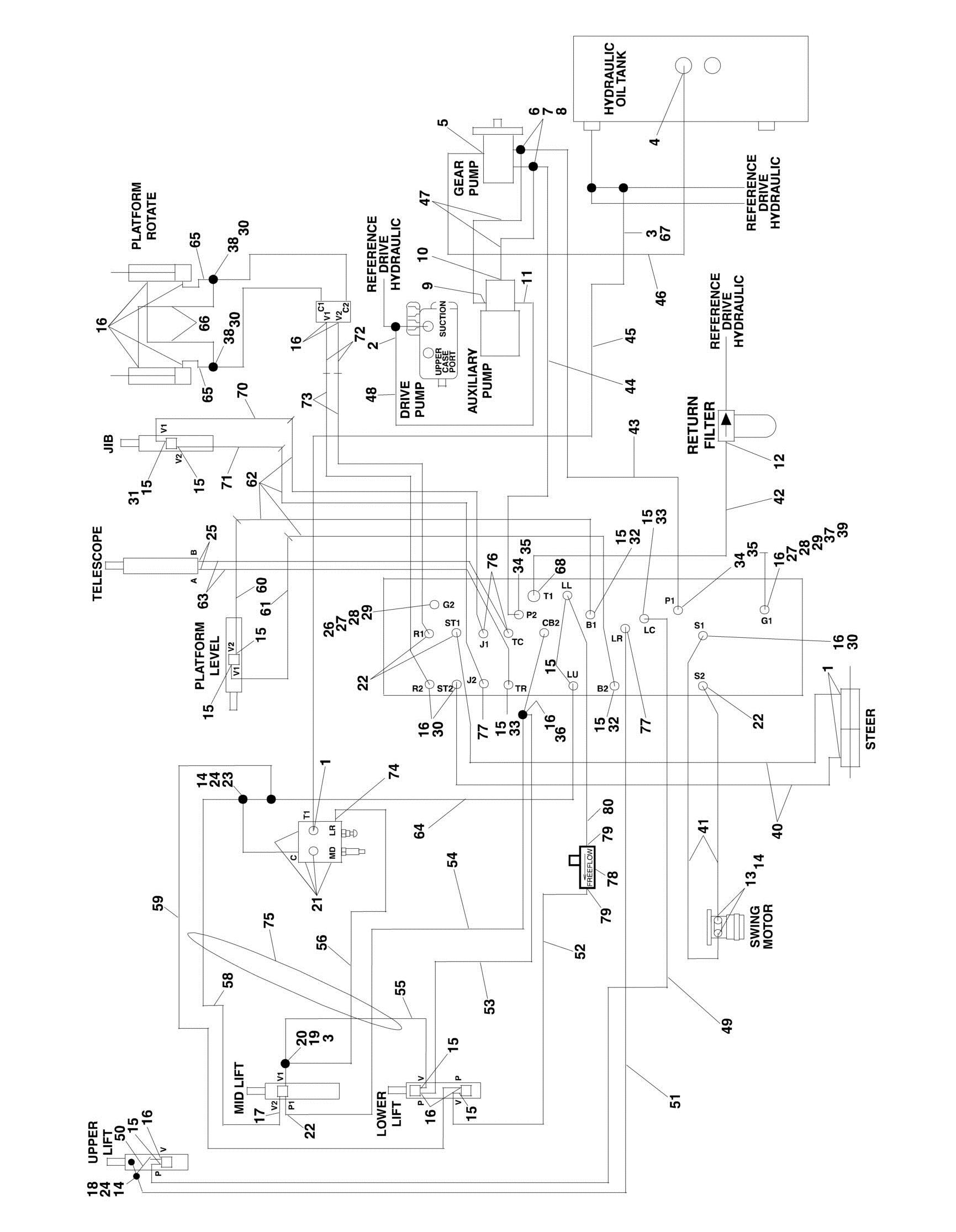

FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM
FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM
FIGURE 6-6. STANDARD HYDRAULIC DIAGRAM
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD HYDRAULIC DIAGRAM 2792352 Ref Standard Hydraulic Diagram 450A 2792353 Ref Standard Hydraulic Diagram 450AJ 1 2220582 3 Fitting, Straight 2 2220710 1 Fitting, Reducer 3 2220618 2 Fitting, Reducer 4 2220379 1 Fitting, Straight 5 2221025 1 Fitting, Straight 6 4640744 2 Valve, Check 7 2220385 2 Fitting, Tee 8 2220619 2 Fitting, Reducer 9 2220775 1 Fitting, 90 10 2220603 1 Fitting, Straight 11 2220567 1 Fitting, 90 12 2220578 1 Fitting, 90 13 2220497 2 Fitting, Straight 14 2220609 4 Fitting, Reducer 15 2220371 AR Fitting, Straight 16 2220415 14 Fitting, Straight 17 2220628 1 Fitting, 90 18 Ref Fitting, 90 Options: 18 2220628 1 Fitting, 90 450A 18 2220473 1 Fitting, 90 450AJ 19 2220619 1 Fitting, Reducer 20 2220999 1 Fitting, Tee 21 2220237 4 Fitting, Plug 22 2220466 4 Fitting, 90 23 2220606 1 Fitting, Tee 24 2220635 2 Fitting, Tee 25 2220501 2 Fitting, 45 26 2220873 1 Fitting, Straight 27 2220428 2 Fitting, Pressure Check 28 2220429 2 Cap, Dust 29 0100020 AR Sealant, Pipe 30 2220654 5 Fitting, 90 31 Ref Fitting Options: 31 Not Required 0 Fitting 450A 31 2220907 1 Fitting 450AJ 32 2220509 2 Fitting, 90 33 2220507 2 Fitting, 90 34 2220600 2 Fitting, Straight 35 2220386 2 Fitting, 90 36 2220605 1 Fitting, Tee 37 2220414 1 Fitting, Straight 38 2221034 2 Fitting, Tee 39 2752436 1 Hose 40 2752996 2 Hose 41 2752997 2 Hose 42 2752669 1 Hose 43 2752947 1 Hose
REV
5-F 6-G
ITEM PART NUMBER QTY DESCRIPTION
44 2752948 1 Hose 45 2752434 1 Hose 46 2752726 1 Hose 47 2752479 2 Hose 48 2752668 1 Hose 49 2753072 1 Hose 50 Ref Hose Options: 50 2752433 1 Hose 450A 50 2752453 1 Hose 450AJ 51 2753073 1 Hose 52 2752627 1 Hose 53 2752439 1 Hose 54 2752998 1 Hose 55 2753074 1 Hose 56 2752583 1 Hose 57 Not Required 0 Not Required 58 2752623 1 Hose 59 2752999 1 Hose 60 Ref Hose Options: 60 2753081 1 Hose 450A 60 2753077 1 Hose 450AJ 61 Ref Hose Options: 61 2753082 1 Hose 450A 61 2753078 1 Hose 450AJ 62 2753075 AR Hose 63 2753076 2 Hose 64 2752463 1 Hose 65 2753000 2 Hose 66 2752437 2 Hose 67 2220622 1 Fitting, Reducer 68 2220593 1 Fitting, Straight 70 Ref Hose Options 70 Not Required 0 Hose 450A 70 2753079 1 Hose 450AJ 71 Ref Hose Options 71 Not Required 0 Hose 450A 71 2753080 1 Hose 450AJ 72 Ref Hose Options 72 2753004 2 Hose 450A 72 2753003 2 Hose 450AJ 73 2753001 2 Hose 74 2220472 1 Fitting 90 76 Ref Fitting Options 76 Not Required 0 Fitting 450A 76 2220473 2 Fitting 450AJ 77 2220819 2 Fitting, 90 78 4640757 1 Valve, Colorflow 79 2220372 2 Fitting, Straight 80 2752463 1 Hose 81 1704395 1 Hose Tag Kit (Not Shown)
