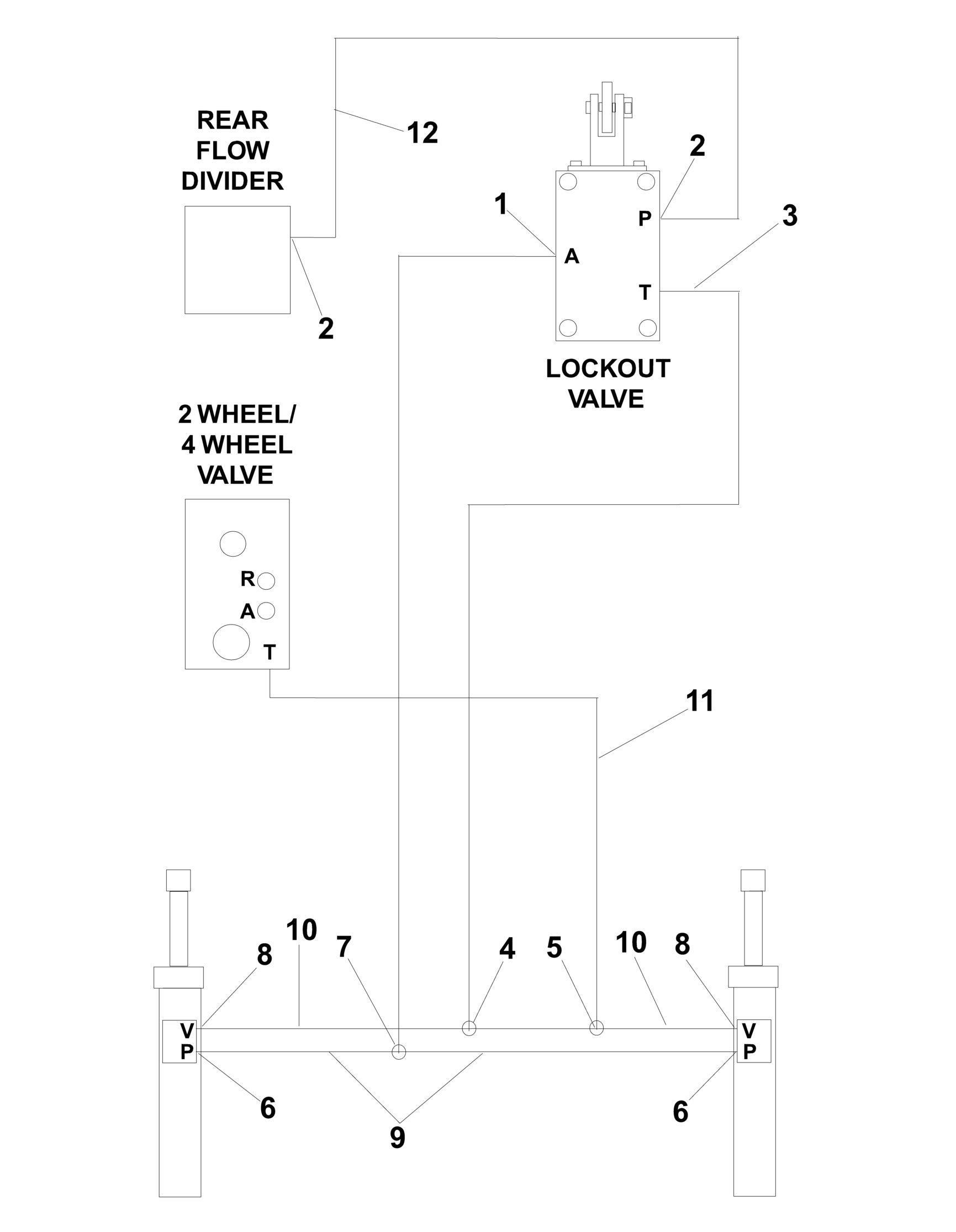

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM - 4WD

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM - 4WD

FIGURE 6-3. AXLE LOCKOUT HYDRAULIC DIAGRAM - 4WD

ITEM PART NUMBER QTY

DESCRIPTION

Ref AXLE LOCKOUT HYDRAULIC DIAGRAMS 2792361 Ref 4WD 1 2220502 1 Fitting 2 2220415 2 Fitting 3 2220603 1 Fitting 4 2220579 1 Fitting 5 2220635 1 Fitting 6 2220582 2 Fitting 7 2220861 1 Fitting, Tee 8 2220371 2 Fitting 9 2750888 2 Hose 10 2753070 2 Hose 11 2752469 1 Hose 12 2751026 1 Hose
