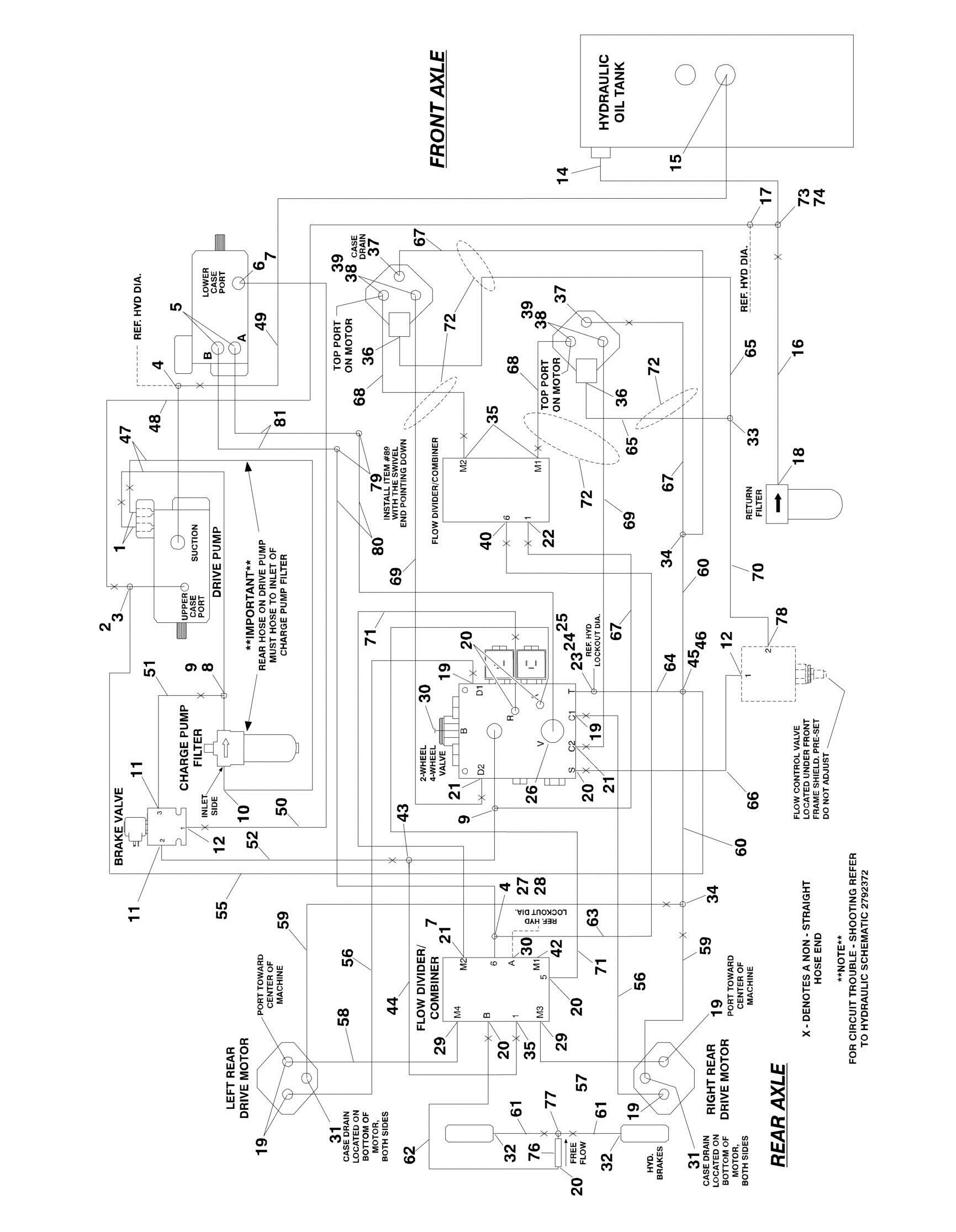

FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM - 4WD
FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM - 4WD
FIGURE 6-5. DRIVE HYDRAULIC DIAGRAM - 4WD
ITEM PART NUMBER QTY
DESCRIPTION
2792359 Ref DRIVE HYDRAULIC DIAGRAM - 4WD 1 2220374 2 Fitting, Straight 2 2220738 1 Fitting, Tee 3 2220622 1 Fitting, Reducer 4 2221026 2 Fitting, Tee 5 2220365 2 Fitting, 45 6 2220375 1 Fitting, Straight 7 2220618 2 Fitting, Reducer 8 2220811 1 Fitting, Reducer 9 2220602 2 Fitting, Tee 10 2220366 1 Fitting, 90 11 2220726 2 Fitting, 90 12 2220582 2 Fitting, Straight 14 2220646 1 Fitting, 90 15 2220379 1 Fitting, Straight 16 2752723 1 Hose 17 2220700 1 Fitting, Tee 18 2220664 1 Fitting, 90 19 2220451 6 Fitting, Straight 20 2220415 8 Fitting, Straight 21 2220375 3 Fitting, Straight 22 2220373 1 Fitting, Straight 23 2220603 1 Fitting, Straight 24 2220579 1 Fitting, Tee 25 2220516 1 Fitting, Cap 26 2220377 1 Fitting, Straight 27 2220710 1 Fitting, Reducer 28 2220407 1 Fitting, 90 29 2220451 2 Fitting, Straight 30 2220235 2 Fitting, Plug 31 2220600 2 Fitting, Straight 32 2220466 2 Fitting, Tee 33 2220504 1 Fitting, Tee 34 2220362 2 Fitting, Tee 35 2220373 3 Fitting, Straight 36 2220502 2 Fitting, 45 37 2220600 2 Fitting, Straight 38 2221068 4 Fitting 39 2220500 4 Fitting, 45 40 2220451 1 Fitting, Straight 42 2220240 1 Fitting, Plug 43 2220383 1 Fitting, Tee 44 2752495 1 Hose 45 2220469 1 Fitting, Tee 46 2220619 1 Fitting, Reducer 47 2752942 2 Hose 48 2752667 1 Hose 49 2752726 1 Hose 50 2752433 1 Hose 51 2752942 1 Hose
REV
6-E
ITEM PART NUMBER QTY
52 2752928 1 Hose 55 2752946 1 Hose 56 2752263 2 Hose 57 2752262 1 Hose 58 2752261 1 Hose 59 2752943 2 Hose 60 2752944 2 Hose 61 2752581 2 Hose 62 2752436 1 Hose 63 2752264 1 Hose 64 2752648 1 Hose 65 2753034 1 Hose 66 2750760 1 Hose 67 2752514 3 Hose 68 2753088 2 Hose 69 2753089 2 Hose 70 2751015 1 Hose 71 2750899 2 Hose 72 4100026 7 ft/2.13m Sleeve, Hose 73 2220710 1 Fitting, Reducer 74 2220642 1 Fitting, Tee 76 4641076 1 Valve, Restrictor 77 2220711 1 Fitting, Tee 78 2220472 1 Fitting, 90 79 2221032 2 Fitting, Swivel 80 2752325 2 Hose 81 2752362 2 Hose
