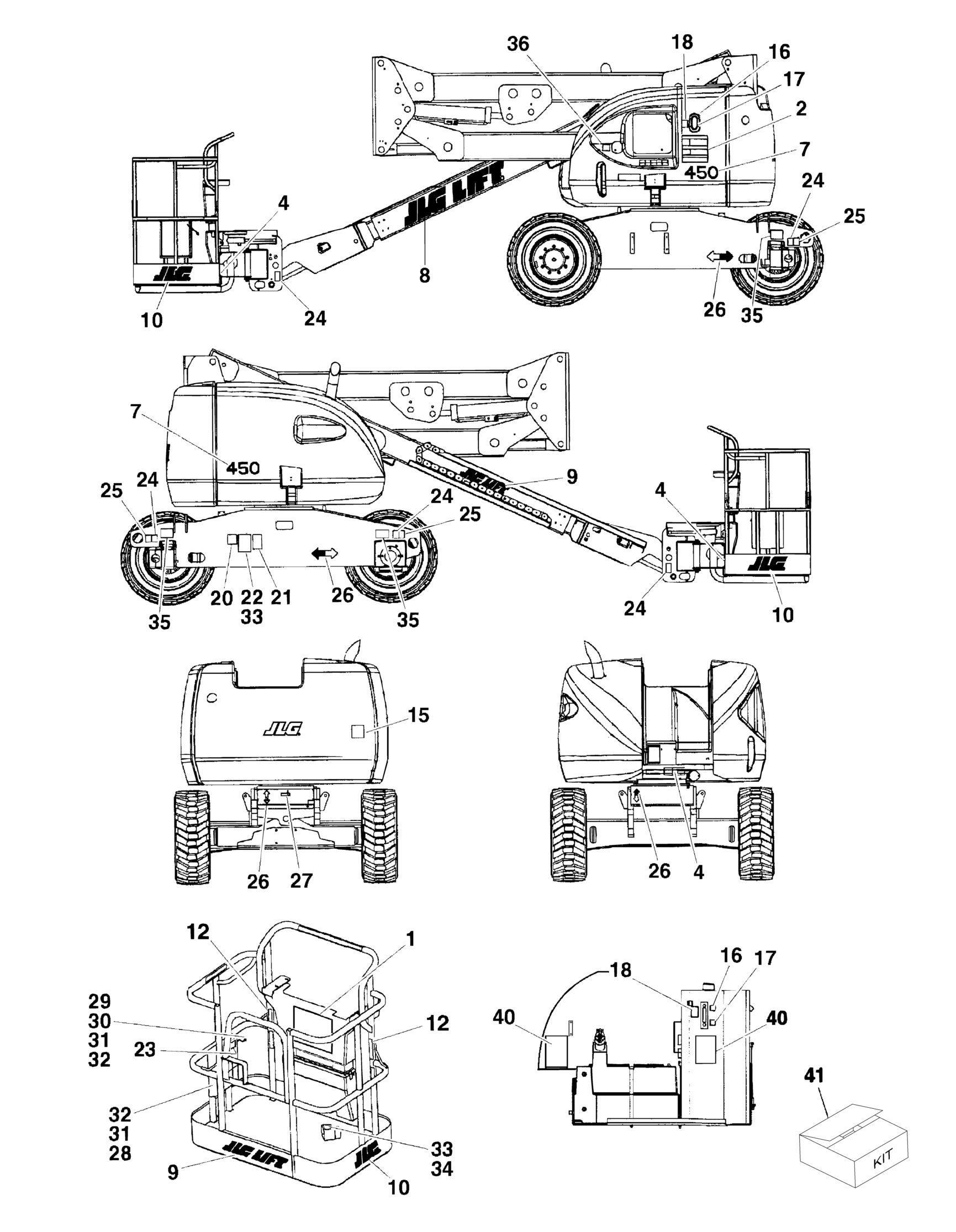

FIGURE 8-1. DECALS INSTALLATION
FIGURE 8-1. DECALS INSTALLATION
FIGURE 8-1. DECALS INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATIONS 0258349 Ref Decal Installations 450A Australian Spec 0258355 Ref Decal Installations 450A Dutch Spec 0258359 Ref Decal Installations 450A French Spec 0258353 Ref Decal Installations 450A German Spec 0258357 Ref Decal Installations 450A Italian Spec 0258361 Ref Decal Installations 450A Spanish Spec 0258351 Ref Decal Installations 450A UK English Spec 0258350 Ref Decal Installations 450AJ Australian Spec 0258356 Ref Decal Installations 450AJ Dutch Spec 0258360 Ref Decal Installations 450AJ French Spec 0258354 Ref Decal Installations 450AJ German Spec 0258358 Ref Decal Installations 450AJ Italian Spec 0258362 Ref Decal Installations 450AJ Spanish Spec 0258352 Ref Decal Installations 450AJ UK English Spec 0271017 Ref JLG Logo Decals 1 Ref Decal - Danger/Warning Options: 1 1703992 1 Australian Spec 1 1703913 1 Dutch Spec 1 1703917 1 French Spec 1 1703799 1 German Spec 1 1703915 1 Italian Spec 1 1703919 1 Spanish Spec 1 1703806 1 UK Spec 2 Ref Decal - Danger/Warning Options: 2 1703807 1 Australian Spec 2 1703914 1 Dutch Spec 2 1703918 1 French Spec 2 1703800 1 German Spec 2 1703916 1 Italian Spec 2 1703920 1 Spanish Spec 2 1703807 1 UK Spec 4 1701518 3 Decal - Warning/Crushing 7 Ref Decal - Model Options: 7 1703774 2 Decal - Model 450A 7 1703775 2 Decal - Model 450AJ 8 1702860 1 Decal - JLG Lift (5 in) 9 1702774 2 Decal - JLG Lift (3 1/2 in) 10 1702773 2 Decal - JLG (5 in) 12 Ref Decal - Attach Lanyard Options: 12 1702612 3 Australian Spec (Prior to SN 0300061091) 12 1704277 3 Australian Spec (SN 0300061091 through 0300065080) 12 Not Required 0 Dutch/ French/ German/ Italian/ Spanish/ UK Spec 15 Ref Decal - CE Options: 15 Not Required 0 Australian Spec 15 1702928 1 Dutch/ French/ German/ Italian/ Spanish/UK Spec 16 1701502 2 Decal - High Oil Level 17 1701503 2 Decal - Low Oil Level 18 1701504 2 Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase)
REV
3 2 2 3 2 2 3 4 2 2 3 2 2 3 1
ITEM PART NUMBER QTY DESCRIPTION
21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 2 Decal - Manual 24 1702300 6 Decal - Tie Down /Lift 25 1701500 4 Decal - Tie Down /Lift 26 1701529 4 Decal- Arrow 27 Ref Decal - 240V-50HZ Options: 27 3251242 3 Australian Spec 27 Not Required 0 Dutch/ French/ German/ Italian/ Spanish/ UK Spec 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in 32 3311405 5 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 Ref Decal - Footswitch 34 3252347 1 Australian Spec 34 1703518 1 Dutch Spec 34 1693292 1 French Spec 34 1693294 1 German Spec 34 1701600 1 Italian Spec 34 1701791 1 Spanish Spec 34 3252347 1 UK Spec 35 1703809 4 Decal - Maximum Tire Load 36 1701505 1 Decal - Fuel 40 1702265 1 Decal - Upright Level Override 41 Ref Decal Kit Options (Includes items 1, 2, 4, 7, 8, 9, 10, 12, 15, 16, 17, 18, 21, 23, 24, 25, 26, 27, 34, 35 & 40 when equipped with that spec): 41 2910107 1 Australian Spec 41 2910108 1 Dutch Spec 41 2910110 1 French Spec 41 2910063 1 German Spec 41 2910109 1 Italian Spec 41 2910111 1 Spanish Spec 41 2910062 1 UK Spec 100 0257733 Ref WARNING STRIPES INSTALLATION (NOT SHOWN) 100 4420051 209 in/5.3m Tape, Yellow/Black
