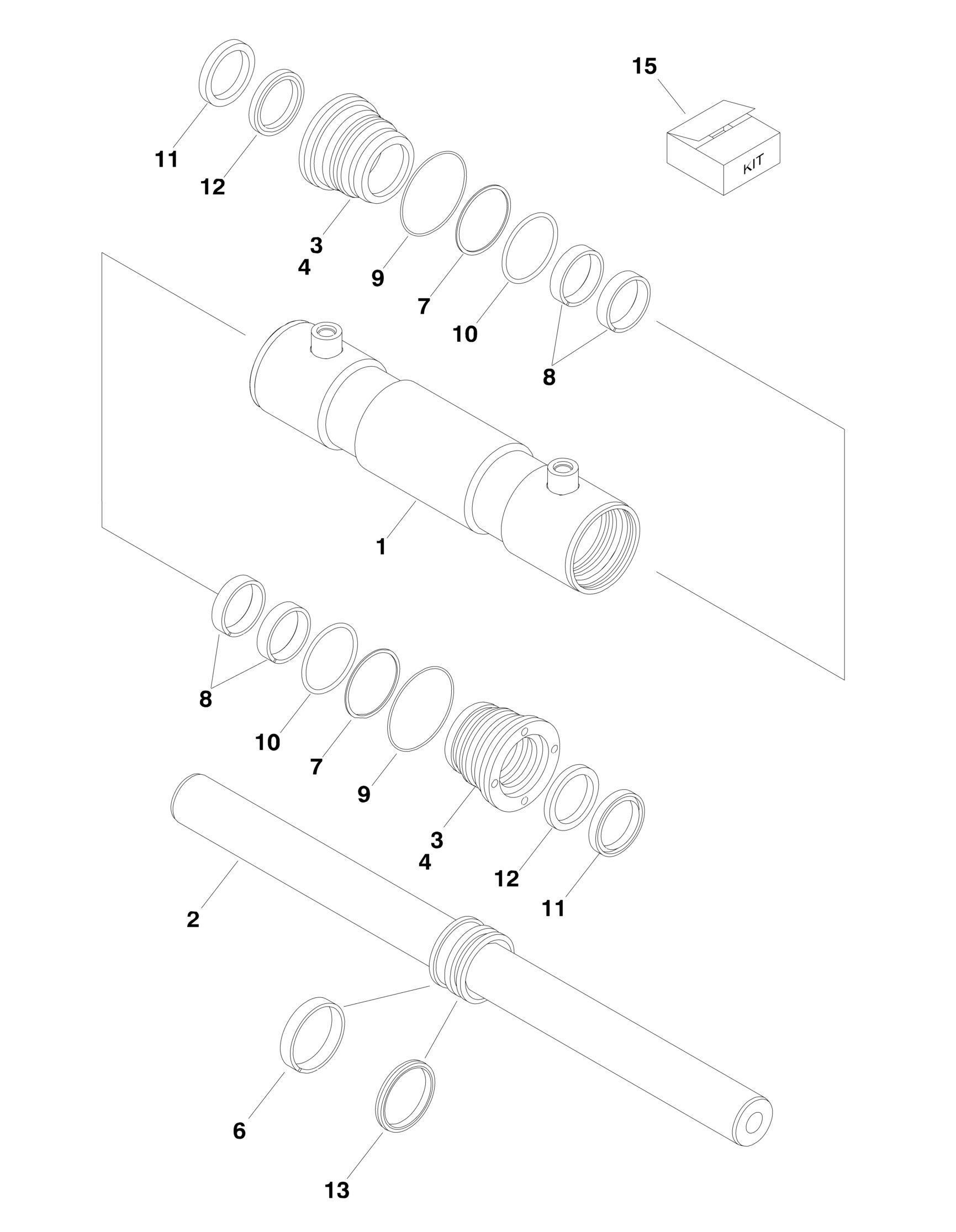

FIGURE 5-9. STEER CYLINDER ASSEMBLY (SERVICE REPLACEMENT
ITEM PART NUMBER QTY DESCRIPTION REV
1684412 Ref STEER CYLINDER ASSEMBLY (SERVICE REPLACEMENT) A Ref Note: Original Cylinder May Have Been Replaced with Service
Replacement. Identify PN Stamped on Cylinder Before Ordering Parts.
1 0370024 1 Barrel Weldment 2 1683658 1 Rod Weldment 3 2570008 2 Head, Cylinder 4 3020043 1 Lube, Anti-Seize 6 2902409 1 Ring, Wear 7 2902409 2 Ring, Back-up 8 2902409 4 Ring, Wear 9 2902409 2 O-Ring 10 2902409 2 O-Ring 11 2902409 2 Wiper 12 2902409 2 Seal 13 2902409 1 T-Seal 15 2902409 1 Seal Kit, Cylinder (Includes Items 6-13)
