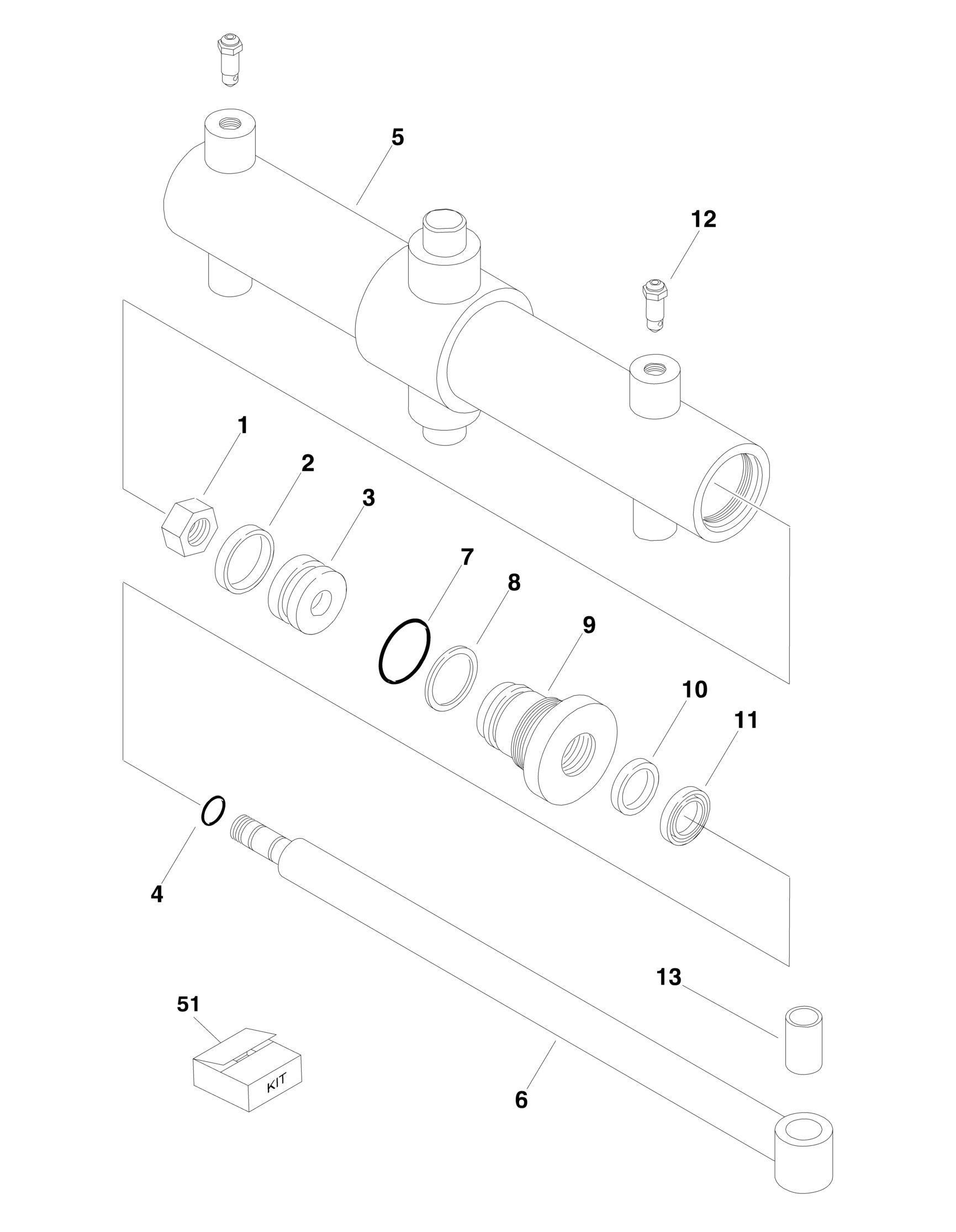

FIGURE 5-7. ROTATOR CYLINDER ASSEMBLY - PLATFORM
FIGURE 5-7. ROTATOR CYLINDER ASSEMBLY - PLATFORM
FIGURE 5-7. ROTATOR CYLINDER ASSEMBLY - PLATFORM
ITEM PART NUMBER QTY
DESCRIPTION
1683579 Ref PLATFORM ROTATOR CYLINDER ASSEMBLY 1 7017226 1 Locknut 2 See Note NSS Seal, Piston (Note: Use Item 51) 3 7016708 1 Piston 4 See Note NSS O-Ring (Note: Use Item 51) 5 7017231 1 Barrel Weldment 6 7017232 1 Rod Weldment 7 See Note NSS O-Ring (Note: Use Item 51) 8 See Note NSS Ring, Back-Up (Note: Use Item 51) 9 7017207 1 Guide 10 See Note NSS Seal, Lip (Note: Use Item 51) 11 See Note NSS Wiper (Note: Use Item 51) 12 7017233 2 Valve, Bleeder 13 7017235 1 Bushing, Bronze 51 7017227 1 Seal Kit (Includes Items 2,4,7,8,9,10 & 11)
