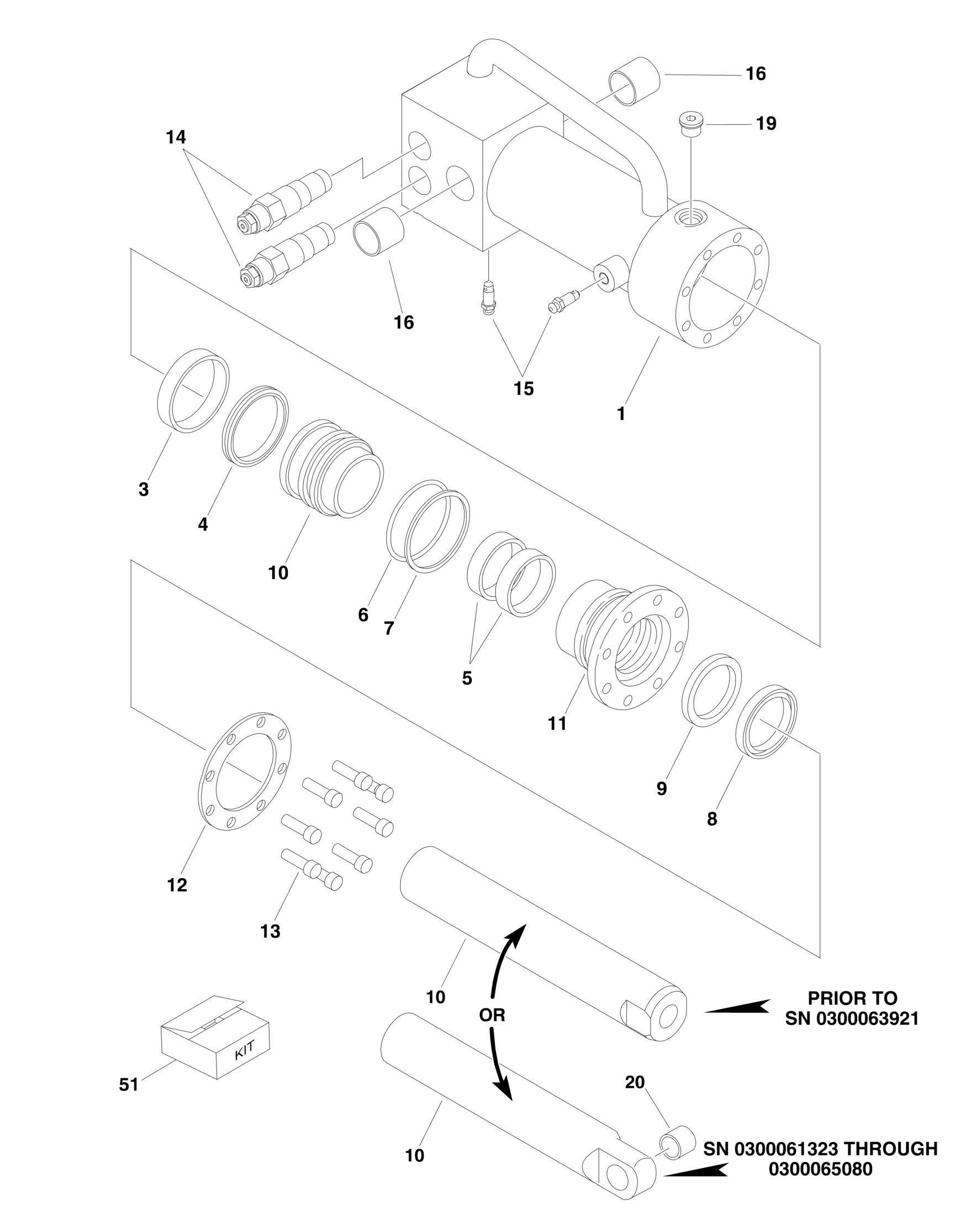

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

Ref AXLE LOCKOUT CYLINDER ASSEMBLIES 1683575 Ref Axle Lockout Cylinder Assemblies (Prior to SN 0300063921) D 1684139 Ref Axle Lockout Cylinder Assemblies (SN 0300063921 through

0300065080)

C 1 1683572 1 Barrel Weldment 3 Item 51 1 Ring, Wear 4 See Note NSS T-Seal (Note: Use Item 51) 5 See Note NSS Ring, Wear (Note: Use Item 51) 6 See Note NSS O-Ring (Note: Use Item 51) 7 See Note NSS Ring, Back-Up (Note: Use Item 51) 8 See Note NSS Wiper (Note: Use Item 51) 9 See Note NSS Seal (Note: Use Item 51) 10 Ref Rod Weldment Options: 10 1683574 1 Rod Weldment (Prior to SN 0300063921) 10 1684138 1 Rod Weldment (SN 0300063921 through 0300065080) 11 1683076 1 Cap 12 3760367 1 Ring, Washer 13 3931516 8 Bolt, Socket Head 5/16in-18NC x 2in 14 Ref Cartridge, Valve (Counterbalance) Options: 14 4640525 NLA Cartridge, Valve (Counterbalance) (Use p/n 4641162) (Prior to

SN 0300056898)

14 4641162 2 Cartridge, Valve (Counterbalance) (SN 0300056898 through

0300065080)

14 2900770 2 Seal Kit - 4640525 & 4641162 Valve (1 Per Assy) 15 4640858 2 Valve, Bleeder 16 Ref Bushing Options: 16 0961890 2 Bushing (Use p/n 0962474) (Prior to SN 0300063921) 16 0962474 2 Bushing (SN 0300063921 through 0300065080) 17 0100011 AR Loctite #242 (Not Shown) 18 0100038 AR Primer, Locking (Not Shown) 19 2220885 1 Plug, O-Ring 20 0962140 1 Bushing 51 2901548 1 Seal Kit (Includes Items 3-9)
