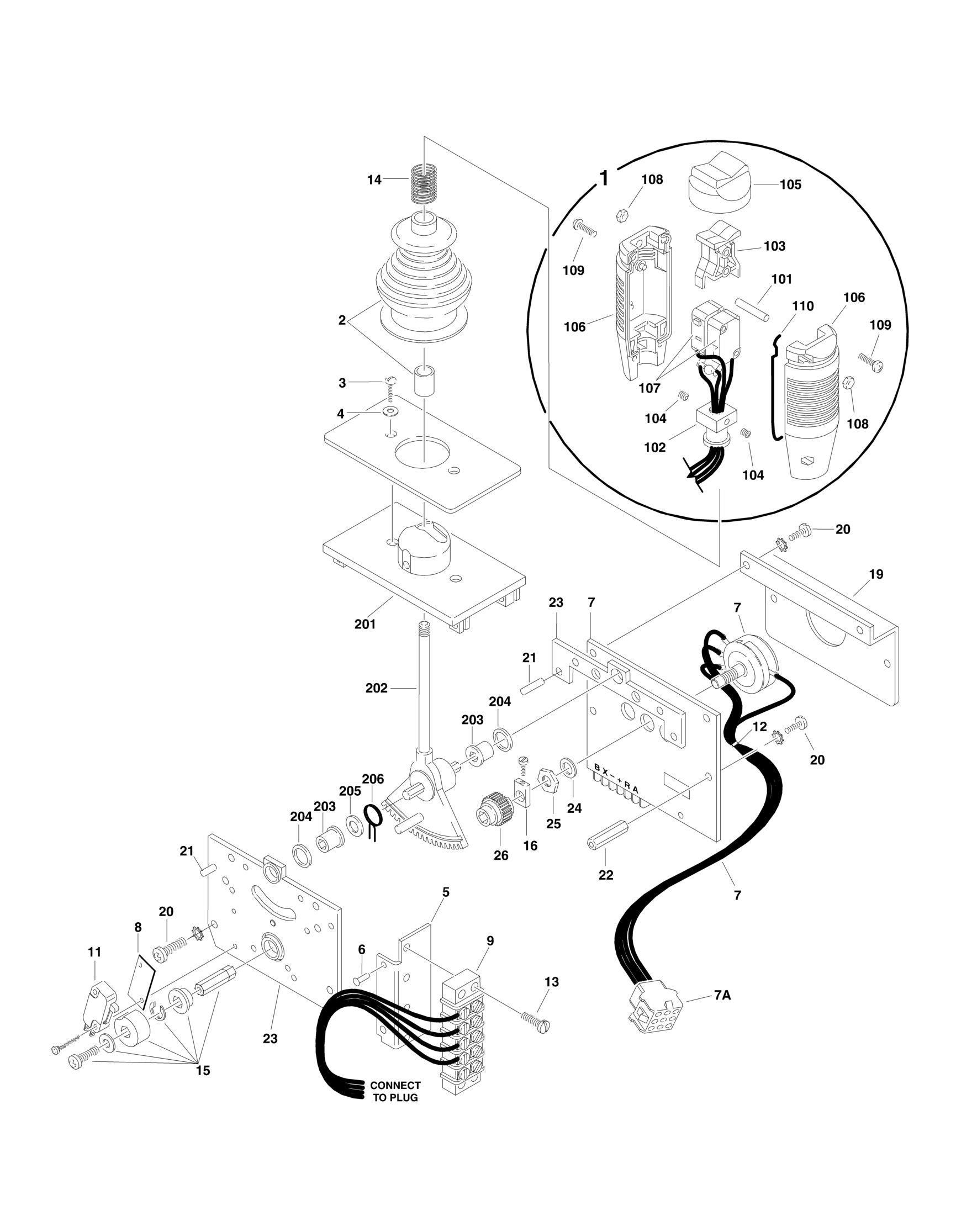

FIGURE 4-6. CONTROLLER ASSEMBLY (DRIVE AND STEER) (SN 0300039857 through 0300065080
ITEM PART NUMBER QTY
DESCRIPTION
1600287 Ref CONTROLLER ASSEMBLY 1 See Note 1 Handle Assembly (Includes Items 101-110) (Note: Not Available Purchase Individual Components) 2 7019161 1 Boot and Sleeve 3 7003969 2 Screw 4 7003941 2 Washer 5 7019159 1 Bracket, Mounting 6 See Note 1 Rivet (Note: Not Available - Purchase Locally) 7 7019124 1 Board, Circuit with Potentiometer 7A 4460265 1 Plug - 9 Position (Part of Console Box Harness) 7A 4460268 9 Socket, Female (Part of Console Box Harness) 7A 4460266 1 Receptacle - 9 Position (Part of p/n 7019124) 7A 4460267 9 Pin, Male (Part of p/n 7019124) 8 7019138 1 Insulator 9 7019153 1 Strip, Terminal - 5 Position 10 7003938 1 Clamp, Boot (Not Shown) 11 7003961 1 Microswitch 12 7019151 3 Tie-Strap 13 7003994 2 Screw 14 7019162 1 Spring 15 7019179 1 Micro Cam Assembly 16 7019163 1 Potentiometer Coupling Assembly 19 See Note 1 Heat Shrink (Note: Not Available for Purchase) 20 7019117 8 Screw 21 7019103 4 Pin 22 7019115 2 Stand-Off 23 7019168 1 Plate, Mounting (Right Side) 24 7003992 1 Washer 25 7003993 1 Nut 26 7003935 1 Gear, Slave Ref HANDLE ASSEMBLY 101 7019164 1 Axle 102 7019194 1 Coupling 103 7019165 1 Rocker 104 7003983 2 Setscrew 105 7003972 1 Boot, Switch 106 7003973 2 Half, Handle 107 7019166 1 Micro Switch Assembly (Includes 2 Switches & Wiring) 108 7019167 4 Nut 109 7003980 4 Screw 110 7003989 2 Gasket Ref HANDLE ASSEMBLY 201 7019160 1 Cast Housing Assembly 202 7019155 1 Shaft 8mm 203 7019111 2 Bearing 204 7019110 2 Spacer, Head Gear 205 7019112 1 Washer 206 7003946 1 Spring, Return
REV
c
