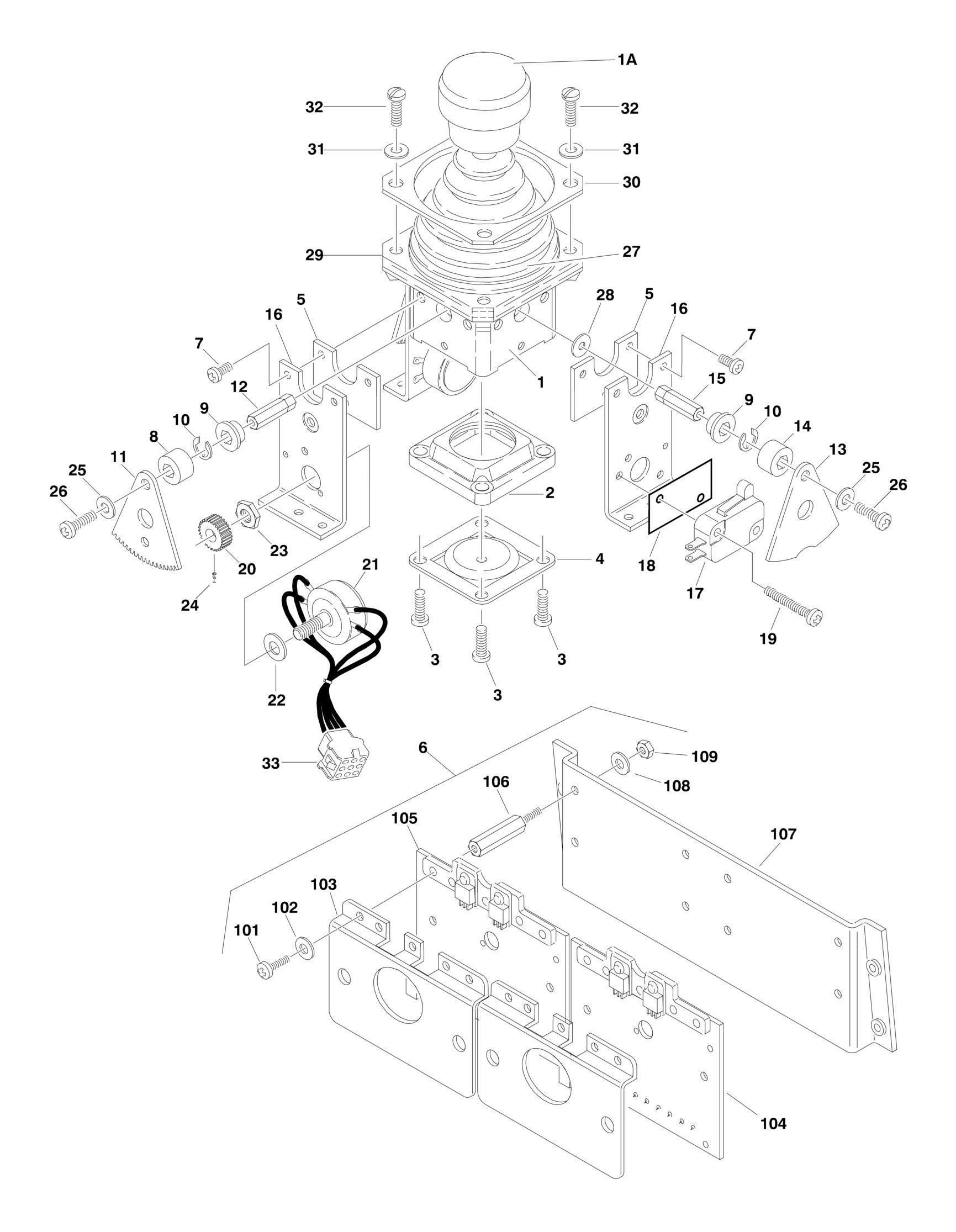

FIGURE 4-4. CONTROLLER ASSEMBLY (LIFT AND SWING) (SN 0300039857 through 0300065080
ITEM PART NUMBER QTY
DESCRIPTION
1600288 Ref CONTROLLER ASSEMBLY 1 7019141 1 Mechanical Assembly (Includes Base, Handle Stem and Items 1A, 1B, 1C & 27) 1A 7019197 1 Handle Cap and Rod 1B 7003928 1 Spring 1C 7022808 1 Cap, Lift 1D 7019123 1 Gimble (Upper) (Not Shown) 1E 7019123 1 Gimble (Lower) (Not Shown) 2 7019169 1 Gate 3 7003952 4 Screw 4 7019170 1 Center, Detent 5 7019171 2 Plate 6 7019172 1 PC Board Assembly (See Items 101-109 for Breakdown) 7 7019173 4 Screw 7 7022831 8 Screw Self Tapping 8 7019174 1 Spacer, Cam 9 7019111 4 Bearing, Gear 10 7019145 4 E-Clip 11 7003977 2 Gear, Drive 12 7019147 2 Shaft 13 7019175 2 Cam 14 7019176 2 Spacer, Cam 15 7019177 2 Shaft 16 7019142 4 Plate 17 7003961 2 Microswitch 18 7019138 2 Insulator 19 7019139 4 Screw 20 7003976 2 Gear, Slave 21 7022830 1 Potentiometer and Harness Assembly 21 7019178 2 Potentiometer 22 7003992 2 Washer 23 7003993 2 Nut 24 7019149 2 Setscrew 25 7019144 2 Spacer 26 7019143 2 Screw 27 7022813 1 Boot and Flange Assembly (Was p/n 7003955) 28 7019144 2 Spacer, Cam 29 See Note NSS Plate, Plastic (Note: Use Item 27) 30 7003956 1 O-Ring 31 7003953 4 Washer 32 7022811 4 Screw 33 See Note NSS Harness, Controller (Note: Use p/n 7022830) 33 4460266 1 Connector, Female - 9 Position 33 4460267 9 Pin, Male 33 7026614 2 Connector, Male - 4 Position 33 7026615 8 Pin, Male 33 7026612 2 Connector, Female - 4 Position 33 7026613 8 Socket, Female 33 7026610 2 Connector, Female - 3 Position 33 7026611 6 Socket, Female
REV
C
ITEM PART NUMBER QTY
DESCRIPTION
33 4460265 1 Plug - 9 Pin (Part of Platform Wiring) (Not Shown) 33 4460267 8 Pin, Male (Part of Platform Wiring) (Not Shown) 34 7019122 1 Gimble (Inner) (Not Shown) 35 7019123 1 Gimble (Outer) (Not Shown) 7019172 Ref PC BOARD ASSEMBLY 101 7019136 8 Screw 4mm x 12mm 102 7019135 8 Washer, Wavy 4mm 103 See Note 2 Cover, Heatshrink (Note: Use p/n 7019172) 104 7019190 1 PC Board Assembly (Lift) 105 7019189 1 PC Board Assembly (Swing) 106 7019131 8 Stand-Off 107 See Note 1 Bracket (Note: Use p/n 7019172) 108 7019129 8 Starwasher 4mm 109 7019128 8 Nut 4mm 110 See Note 1 Harness, PC Board (Not Shown) (Note: Use p/n 7019172)
