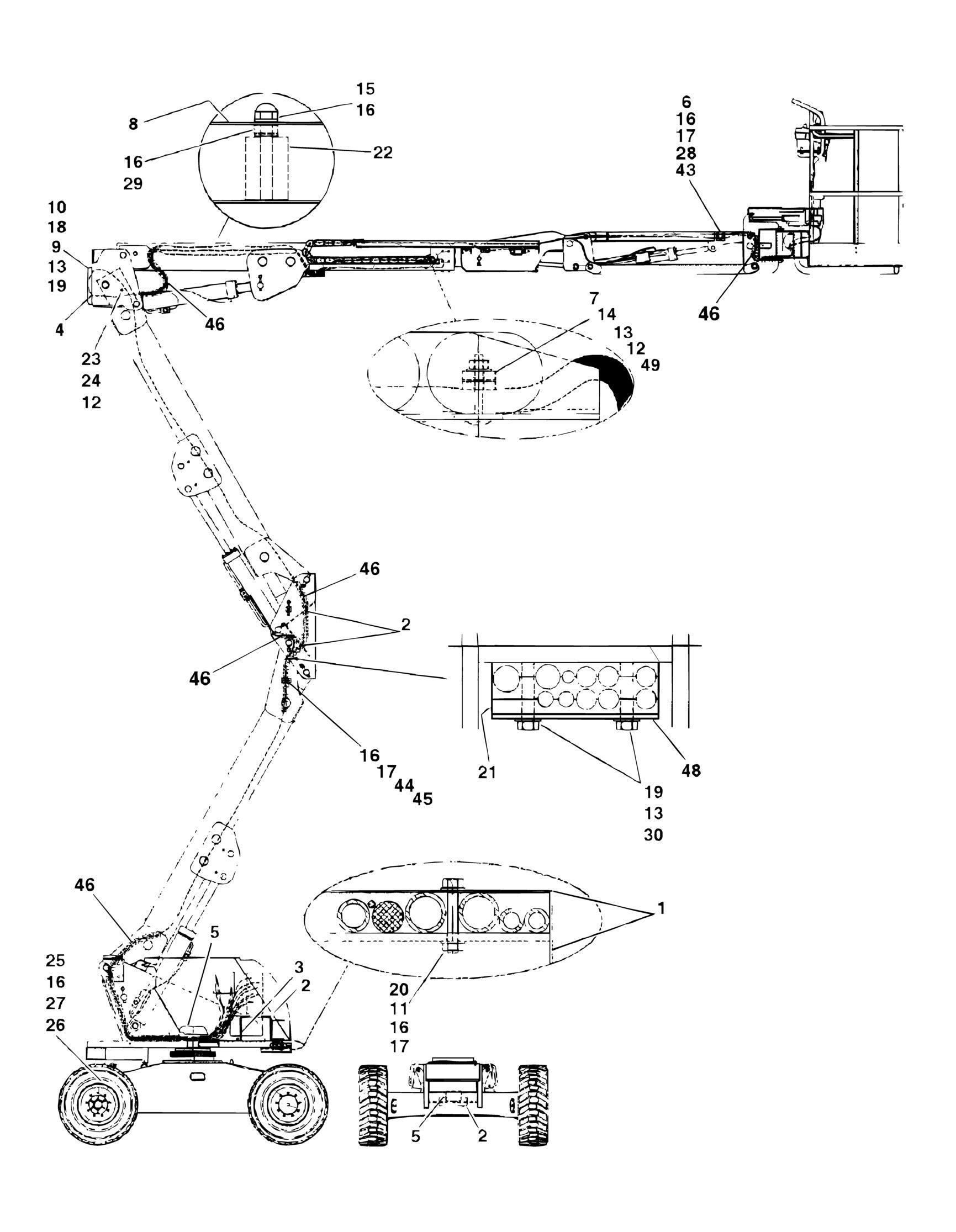

FIGURE 3-5. BOOM COVERS, CABLES AND CLAMPS INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref CABLES AND CLAMPS INSTALLATIONS 0258310 Ref Cables and Clamps Installations 450A 0258311 Ref Cables and Clamps Installations 450AJ 1 4060803 20 in/50cm Flex-Trim 1/8in
2 4060805 10.6 ft/3.3m Flex-Trim 1/4in
3 4060807 8 in/20cm Flex-Trim 3/8in 4 4060808 6.53 ft/2m Flex-Trim 1/2in 5 4060919 7.4 ft/2.26m Flex-Trim 3/4in
6 Ref Block, Clamp 6 Not Required 0 Block, Clamp 450A 6 0561320 1 Block, Clamp 450AJ 7 3570958 3 Clamp, Plate 8 Ref Cover, Main Boom 8 3570535 1 Cover, Main Boom 450A 8 3570810 1 Cover, Main Boom 450AJ 9 0561322 1 Block, Clamp 10 1670697 1 Cover, Hose 11 0641420 2 Bolt 1/4in-20NC x 2 1/2in 12 3311505 3 Locknut 5/16in-18NC 13 4751500 5 Flatwasher 5/16in 14 0630401 2 Bolt, Carriage 5/16in-18NC 15 3300151 6 Nut, Acorn 1/4in-20NC 16 4751400 19 Flatwasher 1/4in 17 3311405 3 Locknut 1/4in-20NC 18 0630467 4 Screw, Button Head 5/16in-18NC x 1/2in 19 0641518 5 Bolt 5/16in-18NC x 2 1/4in 20 3570898 1 Cover, Hose 21 0561323 1 Block, Clamp 22 0561321 2 Block, Clamp 23 4567606 1 Tube, Roller 24 0641560 1 Bolt 5/16in-18NC x 7 1/2in 25 1320070 1 Clamp 26 0641406 2 Bolt 1/4in-20NC x 3/4in 27 4761400 2 Lockwasher 1/4in 28 0641420 AR Bolt 1/4in-20NC x 2 1/2in 29 3311401 6 Nut 1/4in-20NC 30 0100011 AR Loctite #242 (Not Shown) 43 Ref Cover Options: 43 Not Required 0 Cover 450A 43 3571056 1 Cover 450AJ 44 1320070 1 Clamp 45 0641412 1 Bolt 1/4in-20NC x 1 1/2in 46 4100026 Ref Sleeve, Nylon 46 4100026 36 ft/11m Sleeve, Nylon (450A) 46 4100026 41 ft/12.5m Sleeve, Nylon, (450AJ) 48 3571621 1 Plate, Clamp Block
REV
9 8
ITEM PART NUMBER QTY
49 3340859 2 Pad, Rubber
