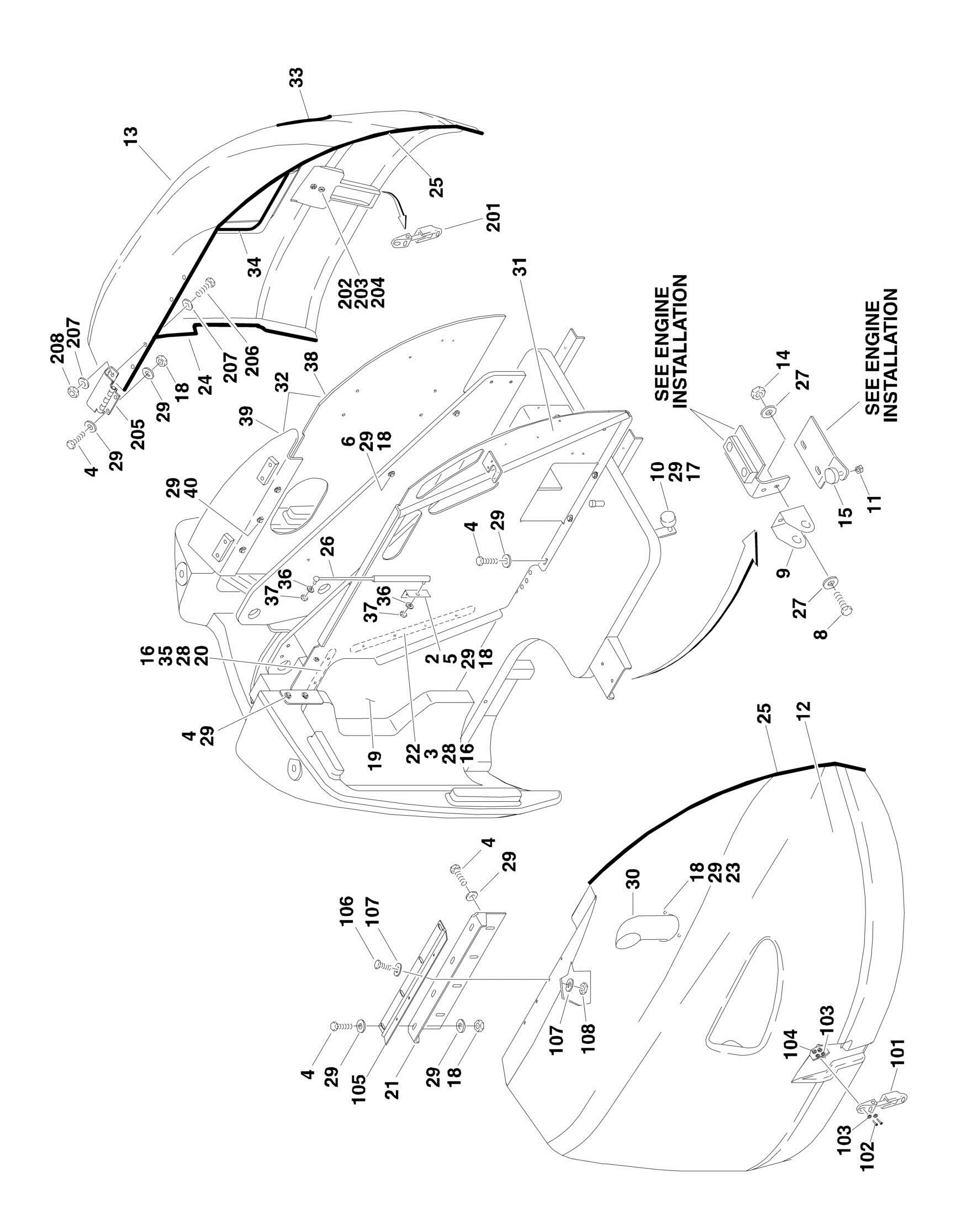

FIGURE 2-12. HOODS INSTALLATION
FIGURE 2-12. HOODS INSTALLATION
FIGURE 2-12. HOODS INSTALLATION
ITEM PART NUMBER QTY
0258219 Ref HOODS INSTALLATION
DESCRIPTION
1 0100011 AR Loctite #242 (Not Shown) 2 Ref Angle, Gas Spring Mounting Options: 2 0181963 1 Angle, Gas Spring Mounting (Prior to SN 0300038924) 2 0902504 1 Angle, Gas Spring Mounting (SN 0300038924 through
0300065080)
3 0641410 4 Bolt 1/4in-20NC x 1 1/4in 4 0641608 13 Bolt 3/8in-16NC x 1in 5 0641610 2 Bolt 3/8in-16NC x 1 1/4in 6 0641614 4 Bolt 3/8in-16NC x 1 3/4in 7 0721004 4 Bolt #10-24NC x 1/2in 8 0721006 4 Bolt #10-24NC x 3/4in 9 0902465 2 Bracket, Lock Hasp Only (Prior to SN 0300042043) 10 0940071 1 Bumper 11 0940083 2 Bumper 12 2680438 1 Hood (Engine Side) (See Items 101-108 for Breakdown) 13 2680439 1 Hood (Tank Side) (See Items 201-208 for Breakdown) 14 3311005 4 Locknut #10-24NC 15 3311401 2 Nut 1/4in-20NC 16 3311405 6 Locknut 1/4in-20NC 17 3311601 2 Nut 3/8in-16NC 18 3311605 13 Locknut 3/8in-16NC 19 3380445 1 Panel, Rubber 20 3539957 1 Plate, Hold-Down (Prior to SN 0300038924) 20 0641408 6 Bolt 1/4in-20NC x 1in (SN 0300038924 through 0300065080) 21 3570695 1 Plate, Hinge Mounting 22 3570981 1 Plate, Hold-Down (Prior to SN 0300049107) 23 3900232 3 Capscrew, Button Head 3/8in-16NC 1 1/4in 24 3960462 9 ft/2.74m Seal, Hood 25 3960464 9 ft/2.74m Seal, Hood 26 4160170 1 Spring, Gas 27 4750800 12 Flatwasher #8 28 4751400 6 Flatwasher 1/4in 29 4751600 39 Flatwasher 3/8in 30 4845194 1 Exhaust Tube Weldment 31 4845665 1 Hood Mounting Weldment 32 4845789 1 Hood Mounting Weldment Only (Note: Items 38-40 may be used as an adjustable replacement) (Prior to SN 0300044585)
33 3960438 4.4 ft/1.4m Seal
34 4060806 1.33 ft/41cm Shield
REV
F
35 4740362 2 Washer, Fender 36 4751500 2 Flatwasher 5/16in 37 3311505 2 Locknut 5/16in-18NC 38 4846038 1 Hood Mounting Weldment Only (SN 0300044585 through
0300065080)
39 4846037 1 Hood Mounting Weldment Only (SN 0300044585 through
0300065080)
40 0641606 3 Bolt 3/8in-16NC x 3/4in 2680438 Ref HOOD ASSEMBLY (ENGINE SIDE) (Note: Replacement Decals E
ITEM PART NUMBER QTY
DESCRIPTION Must Be Ordered Separately- See DECALS SECTION.)
101 2940109 1 Latch 102 0721008 2 Screw, Machine #10-24NC x 1in 103 4750800 4 Flatwasher #10 104 3311005 2 Locknut #10-24NC 105 2600210 1 Hinge 106 3900232 4 Screw, Button Head 3/8in-16NC x 1 1/4in 107 4751600 8 Flatwasher 3/8in 108 3311605 4 Locknut 3/8in-16NC 2680439 Ref HOOD ASSEMBLY (TANK SIDE) (Note: Replacement Decals
Must Be Ordered Separately - See DECALS SECTION.)
201 2940109 1 Latch 202 0721008 2 Screw, Machine #10-24NC x 1in 203 4750800 4 Flatwasher #8 204 3311005 2 Locknut #10-24NC 205 2600246 2 Hinge 206 0721006 4 Screw, Machine #10-24NC x 3/4in 207 4750800 8 Flatwasher #8 208 3311005 4 Locknut #10-24NC
REV
H
