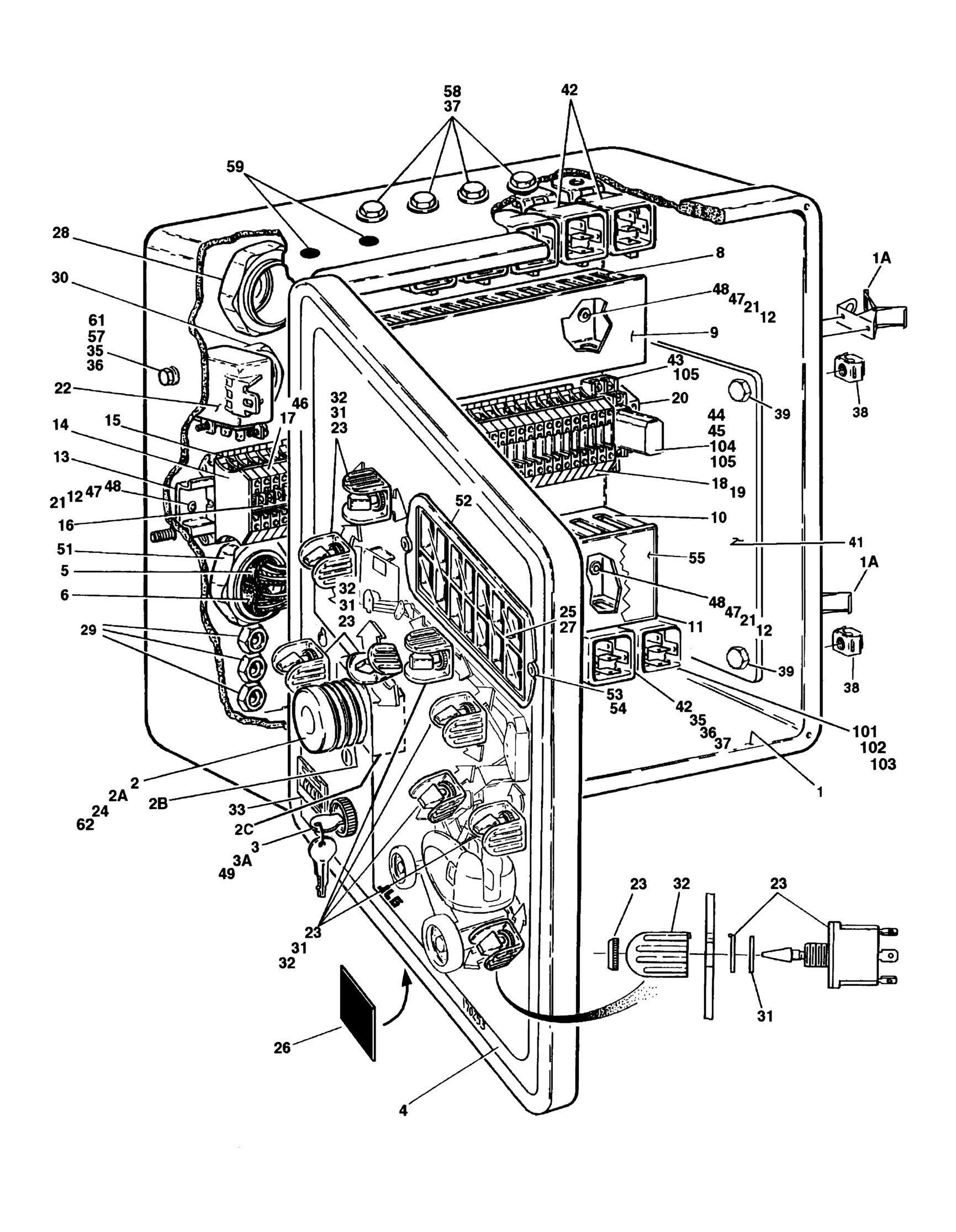

FIGURE 2-10. GROUND CONTROL BOX ASSEMBLY

FIGURE 2-10. GROUND CONTROL BOX ASSEMBLY

FIGURE 2-10. GROUND CONTROL BOX ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

Ref GROUND CONTROL BOX ASSEMBLIES 0861226 Ref Ground Control Box Assemblies 450A with Deutz Engine 6 0861227 Ref Ground Control Box Assemblies 450AJ with Deutz Engine 6 1 Ref Box, Fiberglass Options: 1 0861162 1 Box, Fiberglass (Prior to SN 0300044666) 1 0861304 1 Box, Fiberglass (SN 0300044666 through 0300065080) 1A 7020246 2 Latch 2 Ref Switch, Emergency Stop Options: 2 4360289 1 Switch, Emergency Stop (Prior to SN 0300044666) 2 4360475 1 Switch, Emergency Stop (SN 0300044666 through

0300065080)

2A 7012611 1 Cap, Mushroom Head (Prior to SN 0300044666) 2A 7020175 1 Cap, Mushroom Head (SN 0300044666 through

0300065080)

2B 7012612 1 Boot (Prior to SN 0300044666) 2C 7020176 1 Block, Contact (SN 0300044666 through 0300065080) 3 Ref Switch, Key Options: 3 4360315 1 Switch, Key (Prior to SN 0300044666) 3 4360470 1 Switch, Key (Common Key Style) (SN 0300044666 through

0300065080)

3A Ref Key Options: 3A 7012560 1 Key (Prior to SN 0300044666) 3A 2860030 1 Key (Common Key Style) (SN 0300044666 through

0300065080)

4 Ref Decal - Faceplate 4 1703690 1 Decal - Faceplate 450A 4 1703691 1 Decal - Faceplate 450AJ 5 4922050 1 Engine Harness Assembly (See ELECTRICAL SECTION for Breakdown) 6 4922048 1 Valve Harness Assembly (See ELECTRICAL SECTION for Breakdown) 8 1840012 1 Duct, Wiring - 2in/5cm 9 1840013 1 Duct, Cover - 2in/5cm 10 1840014 1 Duct, Wiring - 3in/7.6cm 11 1840015 1 Duct, Cover - 3in/7.6cm 12 3910608 6 Screw #6-32NC x 1/2in 13 3640970 1 Rail 14 4460602 1 Barrier, Terminal 15 4460601 10 Block, Terminal 16 4460603 1 Bussbar - 10 Position (Requires being cut into (2) 5 position bussbars) 17 4460631 1 Marker, Terminal (Negative) 18 4460600 46 Block, Terminal 19 4460628 2 Marker, Terminal (1-50) 20 4460607 1 Stop, Terminal 21 4750600 12 Flatwasher #6 22 3740112 1 Relay, Bosch 23 4360314 AR Switch, Toggle 24 Ref Switch, Contact Block Options: 24 4360282 1 Switch, Contact Block (Prior to SN 0300044666) 24 4360476 1 Switch, Contact Block (SN 0300044666 through 0300065080)

ITEM PART NUMBER QTY DESCRIPTION

25 2760105 1 Housing, Display Light 26 4420038 4 in/10cm Insulation, Adhesive Foam 27 1702610 1 Decal - Ground Control Display 28 4460526 1 Connector, Strain Relief 29 4460428 3 Connector, Strain Relief 30 4460426 1 Connector, Strain Relief 31 4740444 AR Washer, Special 32 4060906 AR Shield, Toggle Switch 33 2420172 1 Gauge, Hourmeter 34 0721005 1 Screw #10-24NC x 5/8in 35 3311001 3 Nut #10-24NC 36 4751000 5 Flatwasher #10 37 0721004 9 Screw #10-24NC 38 3300205 4 Nut, Retainer 39 0641506 4 Bolt 5/16in-18NC x 3/4in 40 0100011 AR Loctite #242 (Not Shown) 41 3539219 1 Plate, Reinforcement 42 3740049 9 Relay - SPDT 43 4120012 AR Socket, Relay 44 3740057 AR Relay 45 3740066 AR Spring, Relay 46 4460630 1 Marker, Terminal (Ignition) 47 4760600 6 Lockwasher #6 48 3310601 6 Nut #6-32NC 49 Ref Hardware Options: 49 3300390 1 Nut with Weather Resistant Boot (Prior to SN 0300044666) 49 4070987 AR Shim, Switch (Common Key) (SN 0300044666 through

0300065080)

51 4460711 1 Connector, Strain Relief 52 1670829 1 Bezel 53 0630518 2 Capscrew, Button Head 54 3300408 2 Locknut, Plastic Insert 55 1703622 1 Decal - Service Manual Reference 56 4460234 6 Base, Tie-Strap (Not Shown) 57 0721008 1 Screw #10-24NC x 1in 58 3300408 9 Insert, Locknut 59 3520174 3 Plug, Hole 60 0100009 AR Silicone (Not Shown) 61 4761000 3 Lockwasher #10 62 3910804 6 Screw #8-32NC x 1/4in 0258431 Ref 2WD/4WD ELECTRICAL COMPONENTS INSTALLATION (NOT

SHOWN)

1

3740118 1 Timer, Delay 4922140 1 Harness - 2WD/4WD (See ELECTRICAL SECTION for Breakdown) Ref GENERATOR TIMER RELAY INSTALLATION (NOT SHOWN) Ref Note: Required SN 0300056107 through 0300065080 Only. 4922432 1 Harness, Timer to Relay (See ELECTRICAL SECTION for Breakdown) 3740118 1 Timer, Delay 3911024 1 Screw #10-24NC x 1 1/2in 4751000 2 Flatwasher #10

REV

ITEM PART NUMBER QTY DESCRIPTION REV

4761000 1 Lockwasher #10 3311001 1 Nut #10-24NC 0271483 Ref BPE LOAD SENSING DEVICE (LIFT DOWN) INSTALLATION 2 101 3740049 1 Relay - SPDT 102 3300408 1 Insert, Locknut 103 0721006 1 Screw #10-24NC x 3/4in 104 3740057 1 Relay 105 4120012 1 Base, Relay 106 3740066 1 Spring, Relay
