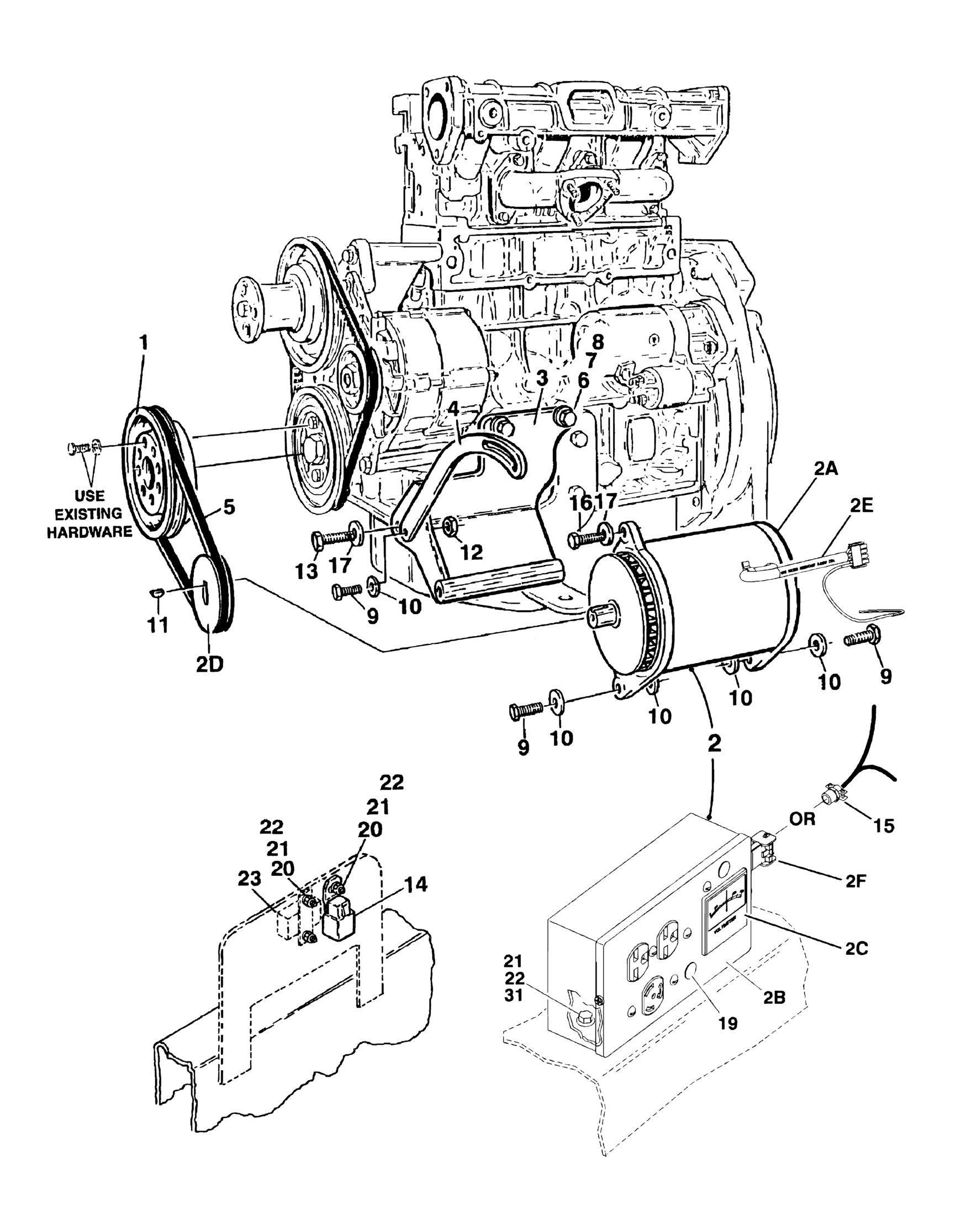

FIGURE 2-7. GENERATOR INSTALLATION - DEUTZ MACHINES (OPTIONAL
ITEM PART NUMBER QTY
DESCRIPTION
Ref GENERATOR INSTALLATION OPTIONS: 0258313 Ref 110V Generator 0258315 Ref 220V Generator 1 3580158 1 Pulley 2 Ref Generator and Control Box Assembly Options: 2 2460011 1 110Volt Assembly (Prior to SN 0300039711) 2 2460032 1 110Volt Assembly (SN 0300039711 through 0300065080) 2 2460034 1 220Volt Assembly (Use p/n 2460056) 2A 7012558 1 Generator - 110V Ref Note: Replacement Generator p/n 7012558 come standard
with p/n 3580134 pulley. This pulley may not be correct for all applications. Refer to pulley options below.
2A 1001100321 1 Generator - 220V 2A Ref Armature Options: 2A 7026199 1 110Volt 2A 70000123 1 220Volt 2A 7020109 4 Holder, Brush 2A 7020108 4 Brush 2A 7012513 4 Cap, Brush Holder 2A 7012514 1 Fan 2A 7020110 1 Bell, Front 2A 7020111 1 Bell, Rear 2A 7020190 2 Bearing 2B 7003657 1 Box, Control - 110V (Note: Replacement 110V Control Box comes with 2 std Receptacles p/n 4460190. Optional Industrial Twist Lock Receptacles p/n 4460027 must be ordered separately.) 2B Ref Box, Control - 220V Options: 2B 70002235 1 Generator 2460034 2B 70000127 1 Generator 2460056 2B Ref Breaker, Circuit Options: 2B 4360542 1 110Volt 2B 70000126 1 220Volt 2B Ref Receptacle Options: 2B 70000124 1 Receptacle, Double (220V/50Hz Only) 2B 70000125 1 Receptacle, Single (220V/50Hz Only) 2B Ref Lamp Options: 2B 2920162 1 Generators 2460011, 2460032 & 2460034 2B Not Required 0 Generator 2460056 2B Ref Switch, Toggle Options: 2B 7020191 1 Generators 2460011, 2460032 & 2460034 2B Not Required 0 Generator 2460056 2B 3520028 2 Plug, Hole 2C Ref Voltmeter Options: 2C 2420203 1 110Volt 2C 7020192 1 220Volt 2D Ref Pulley Options: 2D 3580134 1 Generators 2460011 & 2460056 2D 3580276 1 Generators 2460032 & 2460034 2E 7020193 1 Cord, Power 2F 4460961 1 Connector - 4 Position (Generator 2460056 Only)
REV
4-C 3-B
ITEM PART NUMBER QTY
DESCRIPTION
2F 4460705 4 Terminal, Male Pin (Generator 2460056 Only) 3 4845531 1 Bracket, Generator Mounting 4 0200530 1 Arm, Adjusting 5 0480050 1 V-Belt (Prior to SN 0300039711) 5 0480111 1 V-Belt (SN 0300039711 through 0300065080) 6 0701414 2 Bolt, Metric 14MM x 30MM 7 4751900 2 Flatwasher 9/16in 8 0100011 AR Loctite #242 (Not Shown) 9 0681612 3 Bolt 3/8in-16NC x 1 1/2in (Grade 8) 10 4751600 6 Flatwasher 3/8in 11 2860012 1 Key, Woodruff 12 3311605 1 Locknut 3/8in-16NC 13 0700819 1 Bolt, Metric 8mm x 55mm 14 3740080 1 Relay 15 4460023 1 Connector, Strain Relief 16 0641508 1 Bolt 5/16in-18NC x 1in 17 4751500 2 Flatwasher 5/16in 19 3520028 1 Plug, Hole 20 0721006 AR Bolt #10-24NC x 3/4in 21 3311005 AR Locknut #10-24NC 22 4751000 AR Flatwasher #10 23 Ref Breaker, Circuit - 30 Amp Options: 23 4360294 1 Breaker, Circuit - 30 Amp (Prior to SN 0300062239) 23 4360501 1 Breaker, Circuit - 30 Amp (SN 0300062239 through
0300065080)
25 4360336 1 Switch, Toggle (Not Shown - Located at Platform) 26 4740397 1 Washer (Not Shown - Located at Platform) 27 4060802 1 Guard, Switch (Not Shown - Located at Platform) 29 2820031 1 Heat Shrink (Not Shown - Located at Platform) 30 3251102 1 Decal (Not Shown - Located at Platform) 31 0721008 2 Bolt #10-24NC x 1in
